Gazelle Arroyo Elite C8

This all-rounder with the extra powerful and silent Bosch mid-mounted motor is ideal for day-to-day trips as well as long distance rides. The motor provides effortless assistance on flat and hilly terrain.

  • Extra-powerful and very quiet Bosch mid-mounted motor
  • Lightweight suspension front fork and seat post for optimum comfort
  • Wide tires for optimum comfort
  • Lights with extra-powerful beams for even greater visibility

Original price was: $3,699.00.Current price is: $2,999.00.

Categories: , ,

Description

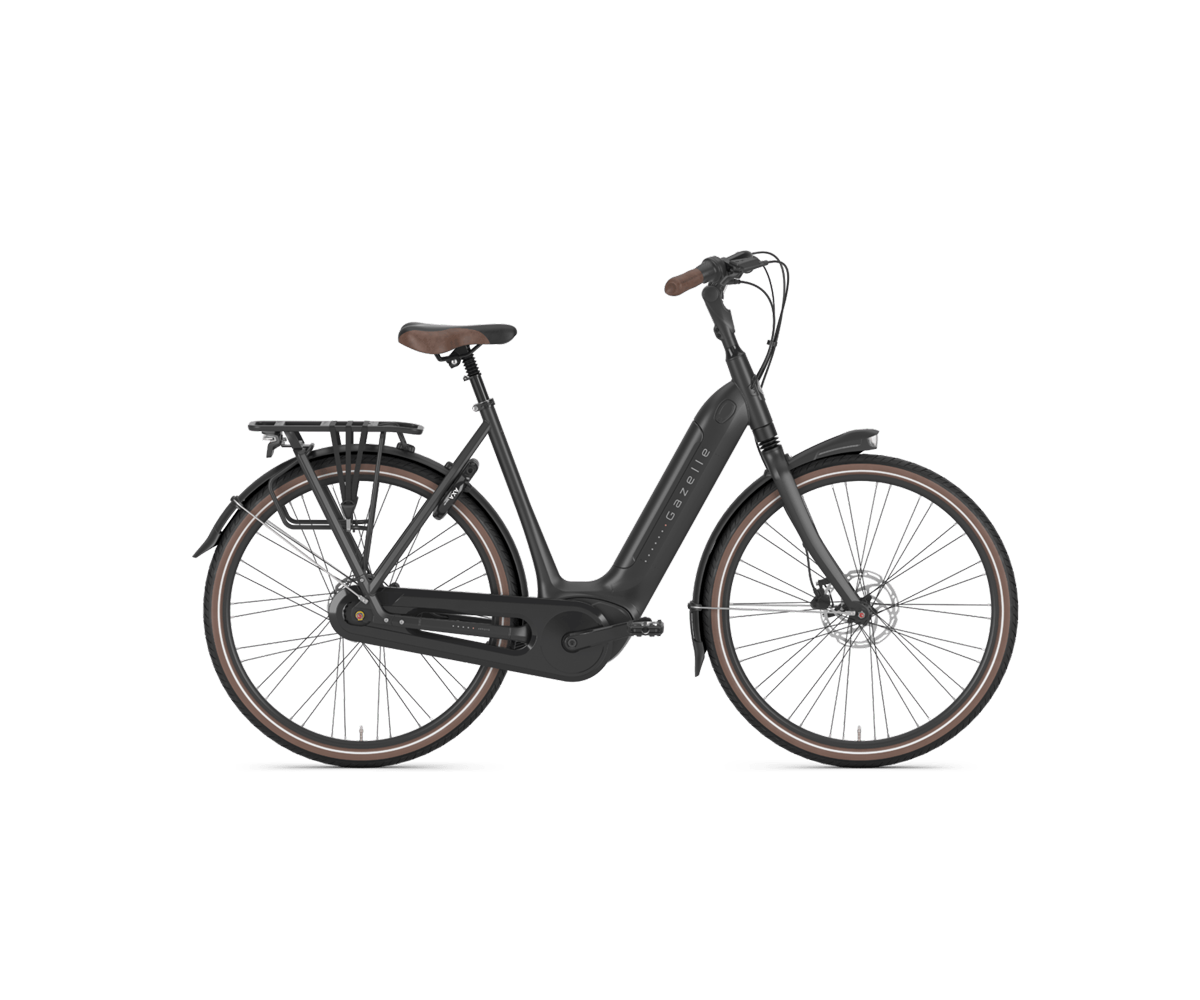

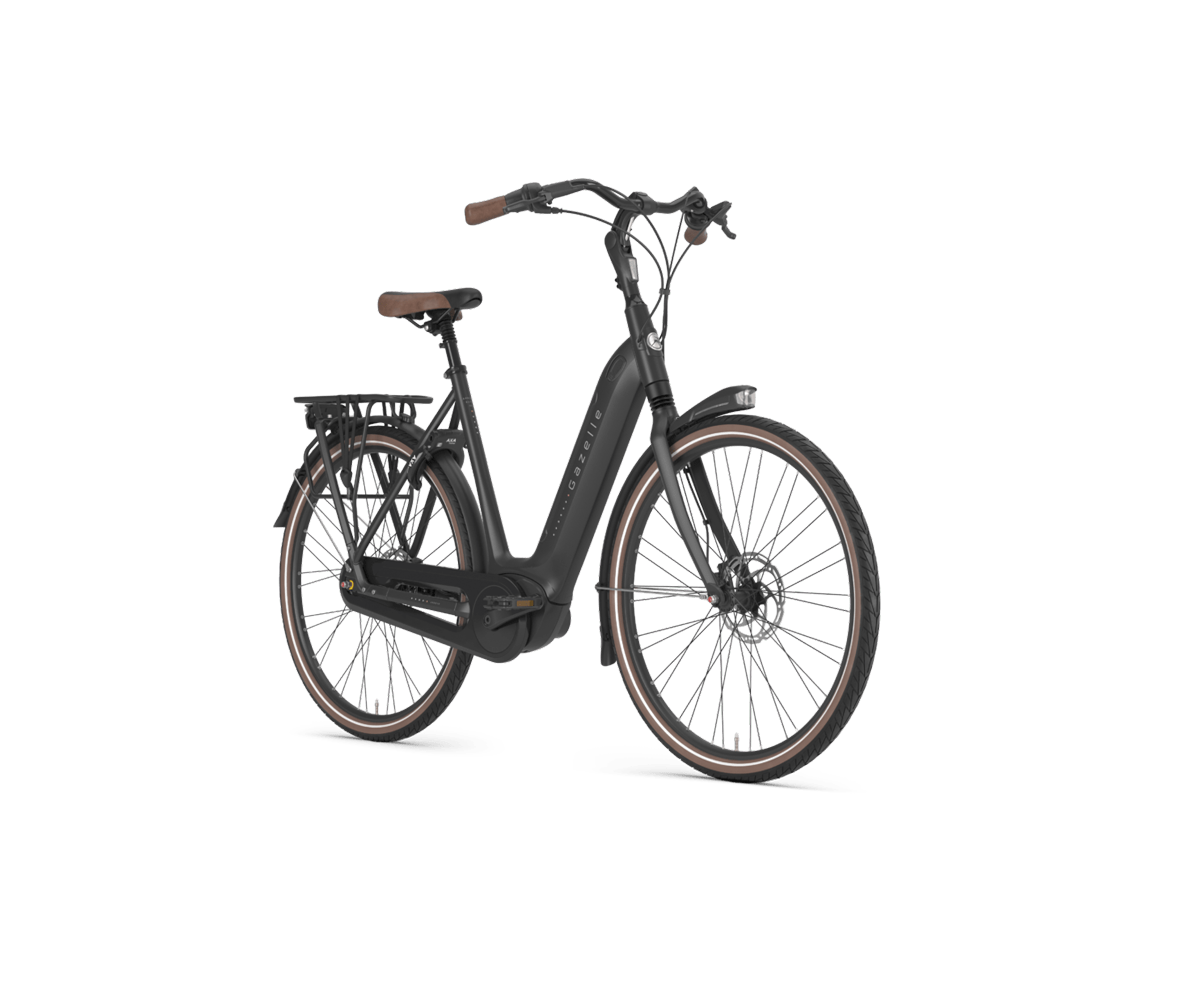

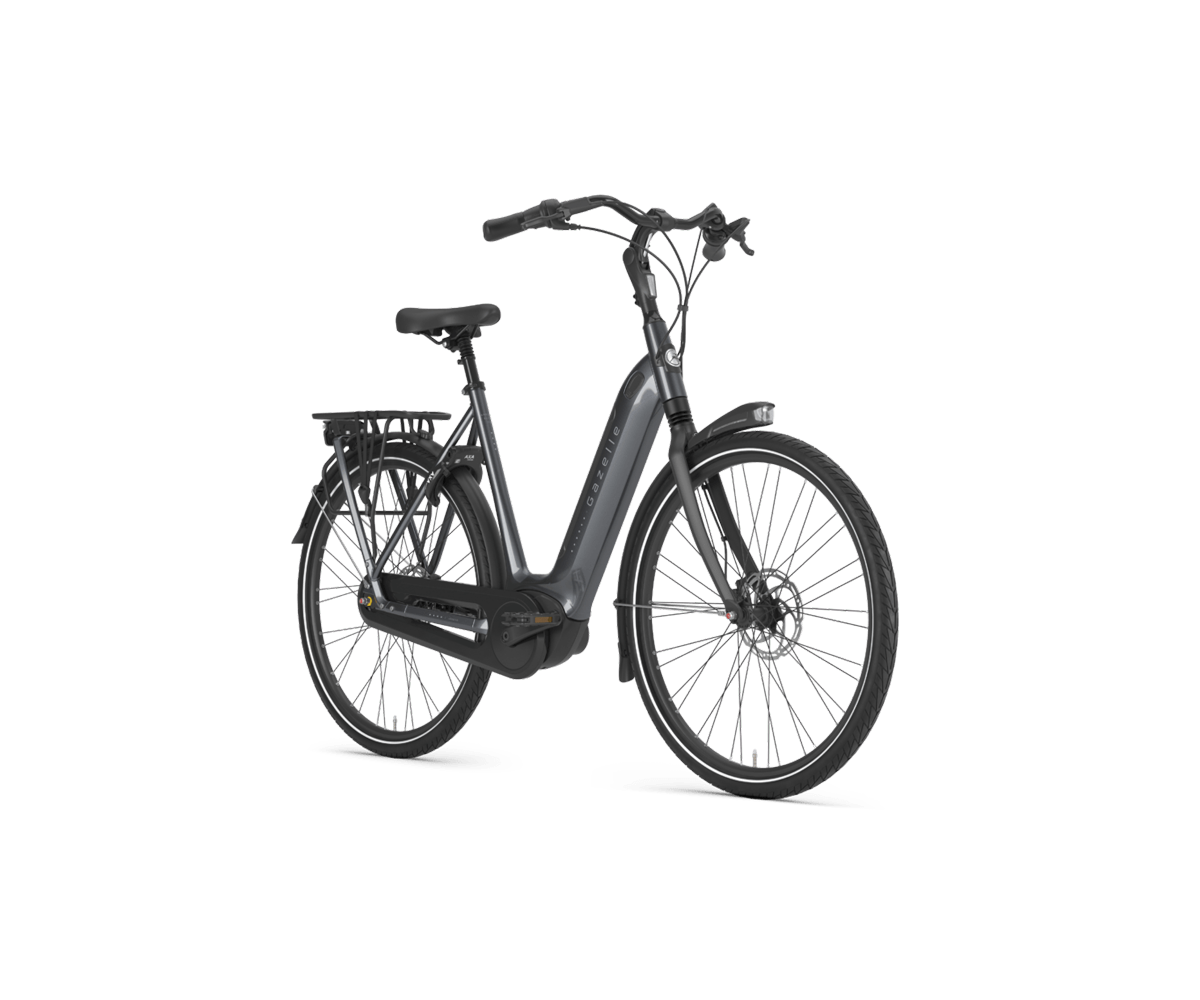

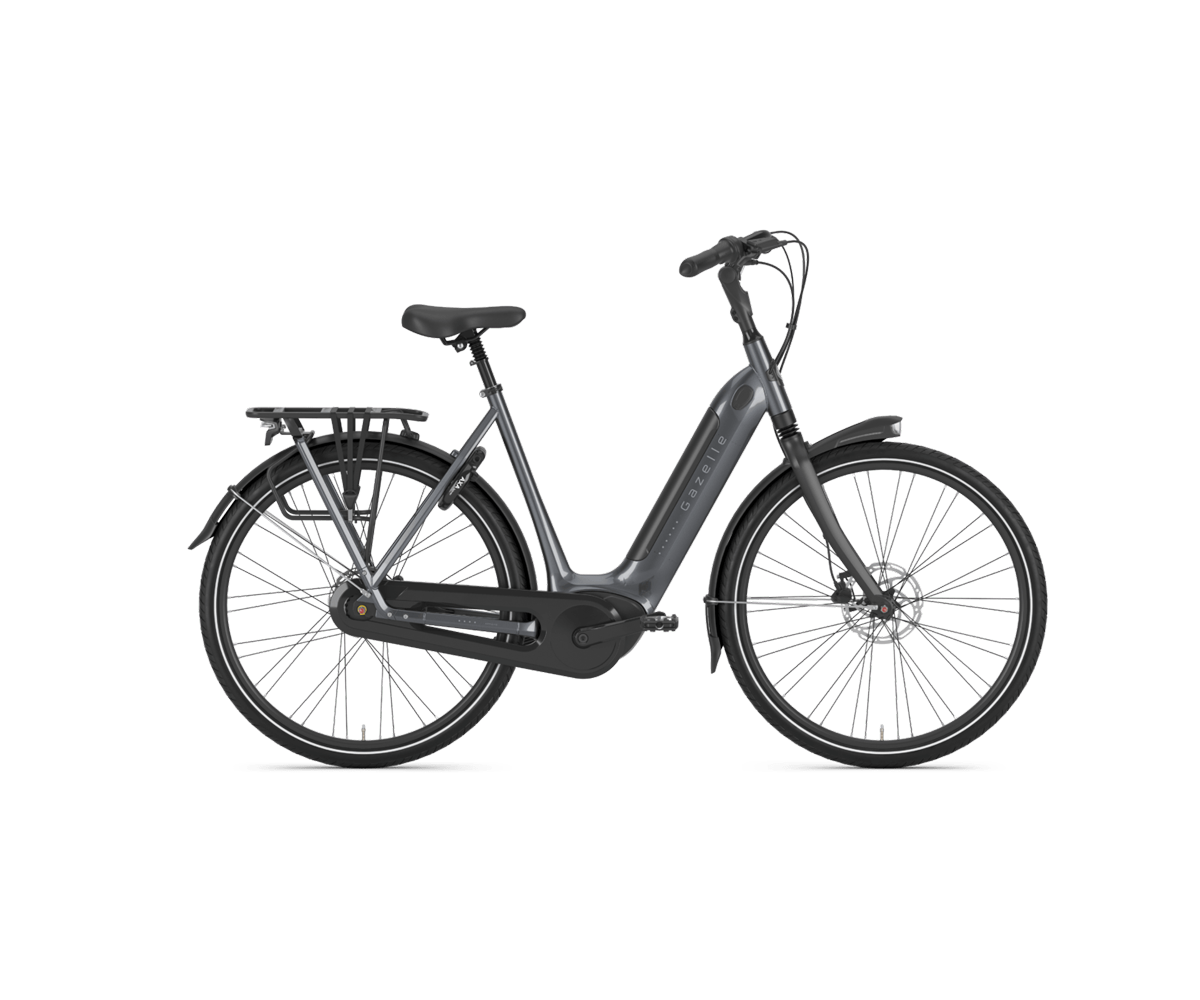

Gazelle Arroyo Elite C8

With the Gazelle Arroyo C8 HMB Elite, the powerful, mid-drive motor and battery are part of the iconic frame design. They are hardly noticeable. That’s exactly what makes the bike popular. The use of high- quality components — integrated LED lighting, leather handlebar grips, a gel seat and more — completes the picture.

Bosch

The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

Efficient, integrated power source

Bosch’s lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike’s range. With the integrated 500 Wh battery, you’ll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.

Gazelle Arroyo Elite C8 Battery

Maximum Range – 70 miles
Watt-Hours – 500Wh
Capacity- 13.4 AH
Eco Range – 70 miles
Tour Range – 45 miles
Sport Range – 35 miles
Turbo Range – 25 miles

Specification of Gazelle Arroyo Elite C8

General

Model – Gazelle Arroyo
Weight in Lb. – 51.6
Colorname – Black, cloud grey
Segment – Electric bicycles
Sitting position – Upright
Integrated lights – Yes

Frame & Fork

Frame shape – Low-step
Size – 46, 53, 57
Frame description – Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
Frame material – Aluminium

Wheels & Tires

Wheelsize – 28″
Rims – RODI Viper
Spoke description – Stainless steel, extra strong
Tires – Schwalbe Energizer Active Plus, Tire color – Black
Tires puncture resistant – Yes

Brake & Transmission

Gear system description – 8-speed Shimano Nexus
Gear type – Hub , Gears – 8
Front chainwheel  – 38
Rear chainwheel – 18
Brake Front – Disc brake with hydraulic control
Brake Rear – Disc brake with hydraulic control
Disc brake rotor size front – 180 mm
Disc brake rotor size rear – 160 mm
Brake system description front – Tektro HD-T280, 2 piston
Brake system description rear – Tektro HD-T280, 2 piston

Handlebar & Seat

Handlebar description – Aluminium, comfort curved model
Adjustable stem – Yes
Grip type – Gazelle Aero leather
Grips – Luxury leather handlebar grips for a sophisticated feel and extra comfort
Saddle – Selle Royal Loire
Seatpost suspension – Yes
Seatpost description – Sprung

Lighting

Light front description – LED headlamp, on/off switching via display
Front light powersource – Battery
Front light lux – 50, Front light type – Gazelle Fendervision
Rear light powersource – Battery

Gazelle Arroyo Elite C8 E- Bike Technology

Ebike system short description – Bosch
Engine location – Mid-drive motor
Max speed (mph) – Class 1 (20 mph)
Torque – 50
Engine model – Bosch Active Line Plus (50Nm)
Ebike sensors – Pedal force sensor, rotation sensor, speed sensor
Battery position – Integrated into frame, Battery type – Li-ion
Battery system – Bosch
Ebike charger description – 4 Ah
Amount of support levels – 4
Display control unit – Yes
Walk assist – Yes
Display Model – Bosch Purion LCD

Other

Lock description – Ring lock
Lock safety level – ART ** certified , Type – AXA Defender
Chaincase description – Plastic
Coat protector – Yes
Kickstand type – Drop-down rear stand
Kickstand – Ursus Mooi
Chaincase type – Chain case
Rear carrier description – Aluminum MIK HD system carrier
Carrier MIK system – Yes
