Magnum Pathfinder 500

The Magnum Pathfinder has a compact frame with a fully integrated battery. Its standout feature in the Magnum lineup is it’s 20″ fat tires. The power system is 500W, 48V, with a 13Ah battery.

$1,999.00

Categories: , ,
Magnum Logo

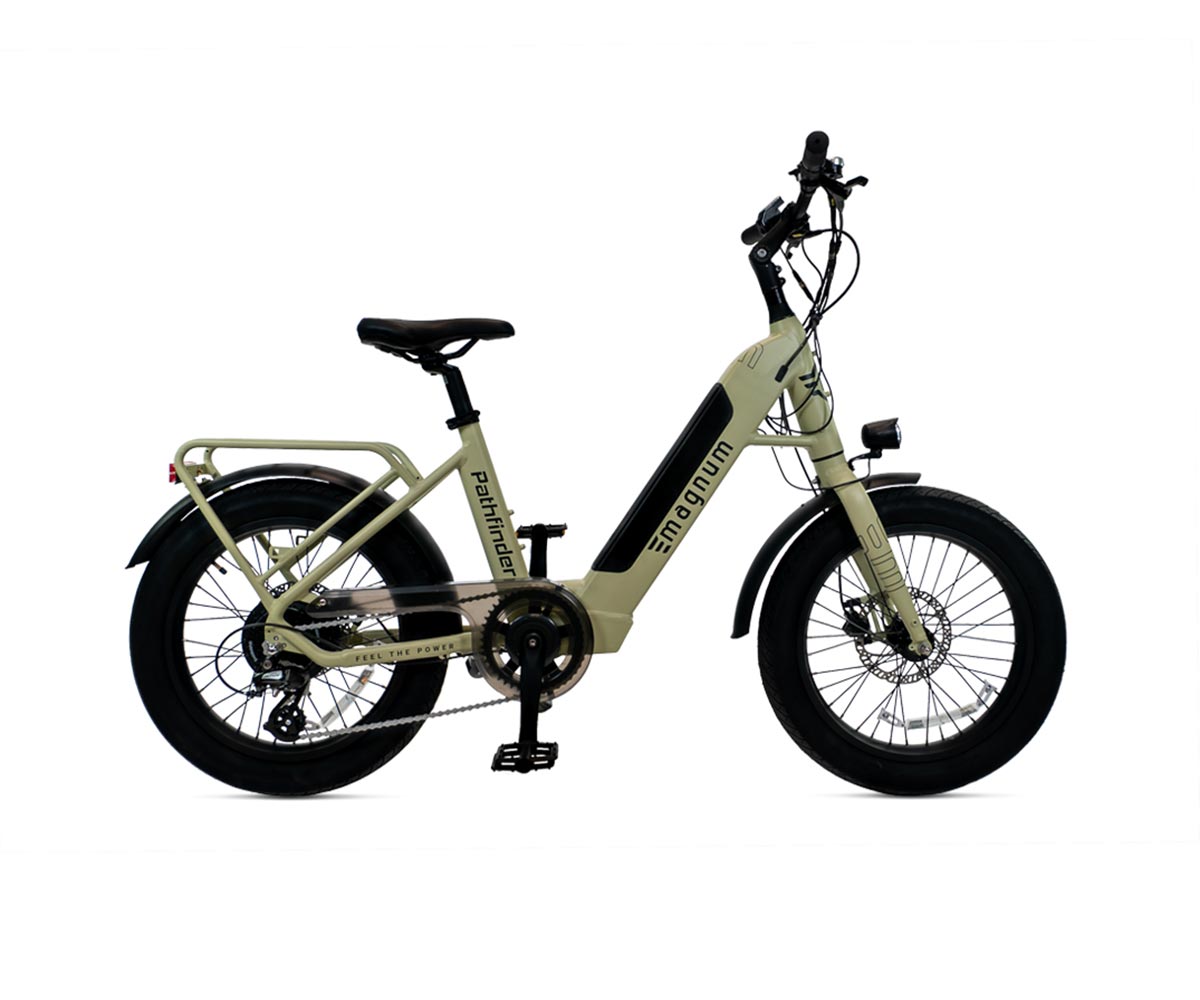

Magnum Electric Bike Sand Tan Pathinder

Description

Magnum Pathfinder 500

The Battery

The heart of the Magnum Pathfinder 500, the long range 48V / 13Ah / 624Wh battery blends in smoothly with the frame for a sleek look. It powers up to 50 miles, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

Ride Smoother

20″ x 3” Fat Tire Wheels

The Pathfinder’s 3” fat tires absorb shock and heighten stability. They will improve handling over unexpected pot holes and uneven pavement, providing extra traction, control, and comfort.

Strong, Versatile and Compact Frame

The Pathfinder 500’s rigid aluminum frame, with its step-through design is easy to mount and dismount, and it serves as a strong, reliable platform for the bike.

Backlit LCD Display

Plan your ride ahead with Magnum’s illuminated LCD display. It lists Battery Charge Level, Current Speed, Assist Level, Odometer, Trip Distance, Average Speed, and Max Speed – all the information you need right at your fingertips.

Powerful 500W Rear Geared Hub Motor

The powerful, reliable, and serviceable 500W Motor has 6 modes of pedal assist, for speeds of up to 25 mph.

Bright, Integrated Front and Rear Lights

Clearly view the road ahead with the integrated, powerful front headlight, and alert other vehicles to your presence with the brake-activated rear taillight.

Magnum Pathfinder 500 Electronic Details

Motor Brand – Vision In-House, Motor Type – Rear Hub-Drive
Motor Nominal Output – 500 Watts, Motor Peak Output~650 Watts
Battery Ah – 13Ah, Battery Wh – 624Wh, Battery Voltage – 48 Volts, Battery Brand  – LG Cells
Battery Chemistry – Li-NMC, Battery Charge Time (from empty) – 6.5 Hours
Minimum Range – 25 Miles (40 Kilometers)
Maximum Range – 50 miles (80 Kilometers)
Display Type – Vision LCD Display
Display Readouts – Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed
Drive Mode – Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode
Top Speed – 25 mph with Pedal Assist, 20 mph with Throttle
Lights – Integrated Front And Rear Lights

Magnum Pathfinder 500 Mechanical Details

Frame material – Aluminum Alloy
Frame size – 15.75” (40 cm)
Fork Details – Rigid Aluminum Alloy
Gearing details – Shimano 7-Speed
Shifter Details – Shimano 7-Speed
Crank – Aluminum Alloy, 44T, 165mm
Pedals – Wide Plastic Platform with Reflectors
Stem – Adjustable Aluminum Alloy
Brakes – Hydraulic Disc Brakes
Grips – Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle
Saddle – Velo Gel Comfort
Tire Brand – CST Big Boat 20 x 3.0
Wheel size – 20″
Fenders – Front and Rear Included
Chain – KMC Z-Chain

Magnum Pathfinder 500 Measurements

Seat Tube – 15.75″ (40 cm)
Reach – 17″ (43 cm)
Stand Over Height – 16″ (40 cm)
Virtual Top Tube Length – 24″ (61 cm)
Min Saddle Height – 20.5″ (52 cm)
Max Saddle Height –  29.5″ (75 cm)
Width – 24″ (61 cm)
Wheelbase – 43″ (109 cm)
Length – 63.75″ (162 cm)
Total Weight – 62 lbs (28 kg)
Battery Weight – 7.5 lbs (3.4 kg)
Recommended Minimum Rider Height – 4’10”
Max Load Capacity – 265 lbs. (100 kg)
