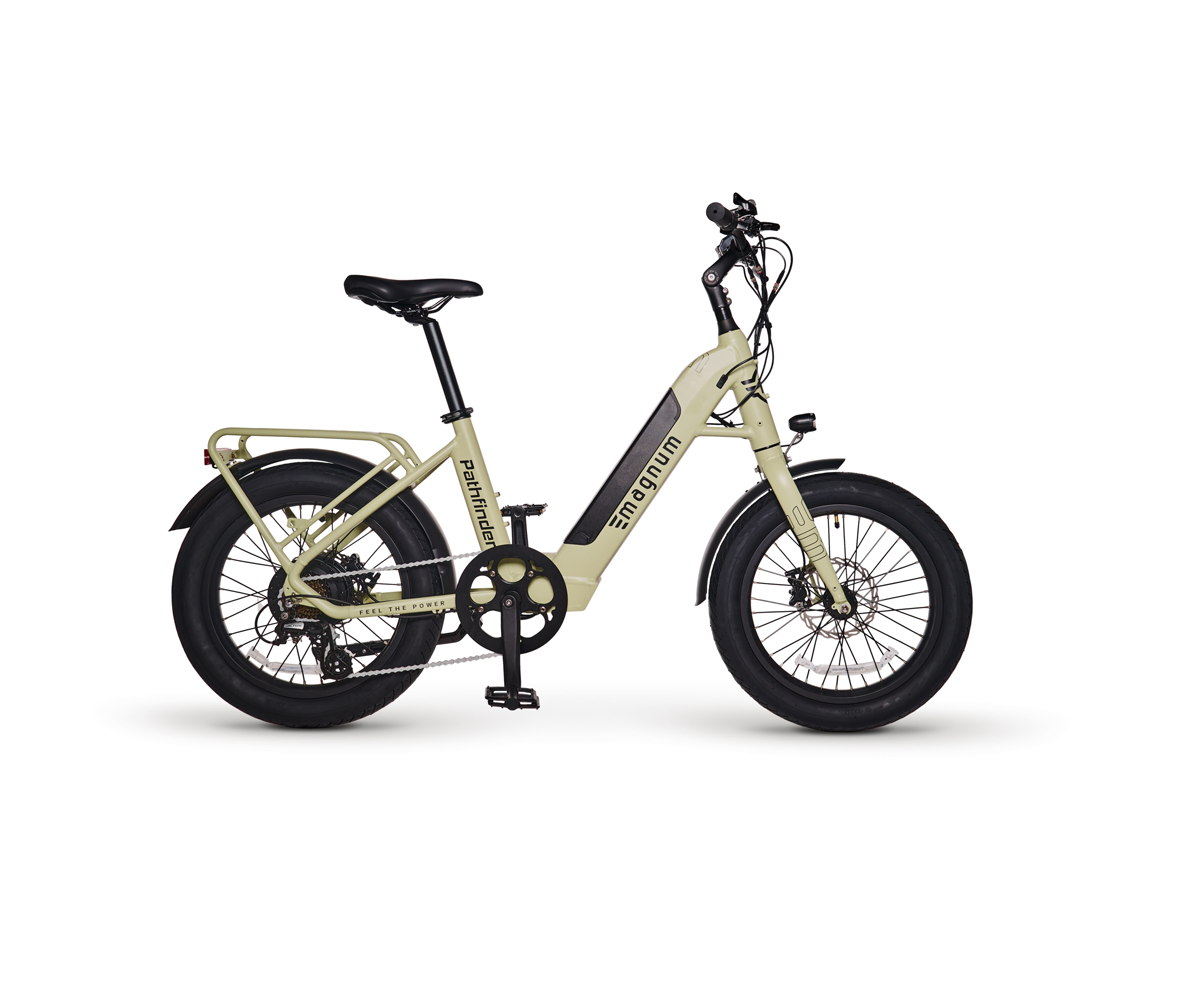

Work hard, play hard. The Magnum Pathfinder T is a versatile e-bike which can be used for commuting, recreation, exercise and more. The unisex step-through frame is well-suited for riders across a broad range of height and physical ability. The new Torque pedal assist gives the rider more control then ever before.
$2,499.00
The Magnum Pathfinder T is a versatile e-bike for commuting, recreation, exercise and more. The unisex step-through frame accommodates riders of all sizes and abilities. Includes Torque pedal assist for extra control.
Clearly view the road ahead with the integrated, powerful front headlight, and alert other vehicles to your presence with the brake-activated rear taillight.
Tektro Hydraulic disc brakes bring you to a smooth, controlled stop.
The long range 48V / 17.5Ah battery blends in smoothly with the frame for a sleek look. It powers up to a 60 mile range depending on variable like body and cargo weight, terrain, wind direction, and pedal assist level.
The Pathfinder’s 3” fat tires absorb shock and heighten stability. They will improve handling over unexpected pot holes and uneven pavement, providing extra traction, control, and comfort.
Plan your ride ahead with Magnum’s illuminated LCD display. It lists Battery Charge level, current speed, assist level, odometer, trip distance, average speed, and max speed- all the information you need right at your fingertips.
Brand – Vision In-House
Type – Rear Hub-Drive
Nominal Output – 500 Watts
Peak Output – 750 Watts
Voltage – 48 Volts
Ah –17.5Ah
Wh –840Wh
Chemistry –Li-NMC
Charge Time (from empty)- 8.75 Hours
Minimum Range- 35 Miles (56 Kilometers)
Maximum Range- 55 miles (89 Kilometers)
Display Type- Vision LCD Display
Display Readouts- Battery level, Assist Level, Current Speed, Trip Distance, Odometer, Range, Trip Time
Drive Mode – Torque Sensor Pedal Assist, Twist Throttle, Walk Mode
Top Speed –25 mph with Pedal Assist, 20 mph with Throttle
Lights –Head and tail light integrated with bike battery
Frame material – Aluminum Alloy
Frame size – 15.75” (40 cm)
Fork Details – Rigid Aluminum Alloy
Gearing details – Shimano 7-Speed
Shifter Details – Shimano 7-Speed
Crank – Aluminum Alloy, 52T, 165mm
Pedals – Wide Plastic Platform with Reflectors
Stem – Tool-Required Adjustable
Brakes – Hydraulic Disc Brake
Grips – Synthetic w/integrated throttle on right-hand side
Saddle – Velo Comfort Saddle
Tire Brand – Innova 20 x 3.0
Wheel size – 20″
Fenders – Front and Rear Included
Chain – KMC RustBuster
Seat Tube – 15.75” (40 cm)
Reach – 17” (43 cm)
Stand Over Height – 16” (40 cm)
Virtual Top Tube Length – 24” (61 cm)
Min Saddle Height – 20.5” (52 cm)
Max Saddle Height – 29.5” (75 cm)
Width – 24” (61 cm)
Wheelbase – 43” (109 cm)
Length – 63.75” (162 cm)
Total Weight – 62 lbs (27.5 kg)
Battery Weight – 7.5 lbs
Recommended Minimum Rider Height – 4’10”
Max Load Capacity – 265 lbs. (100 kg)
