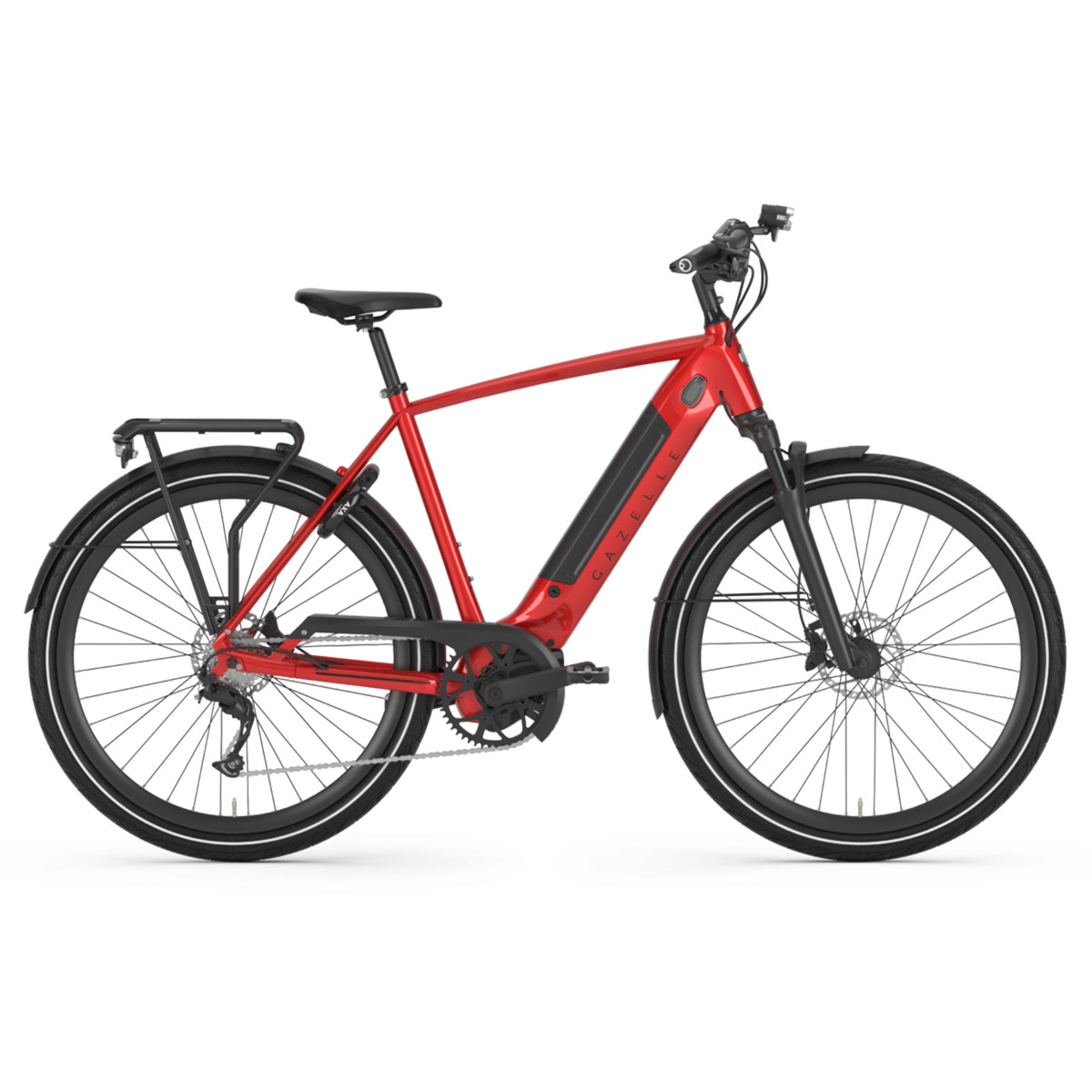

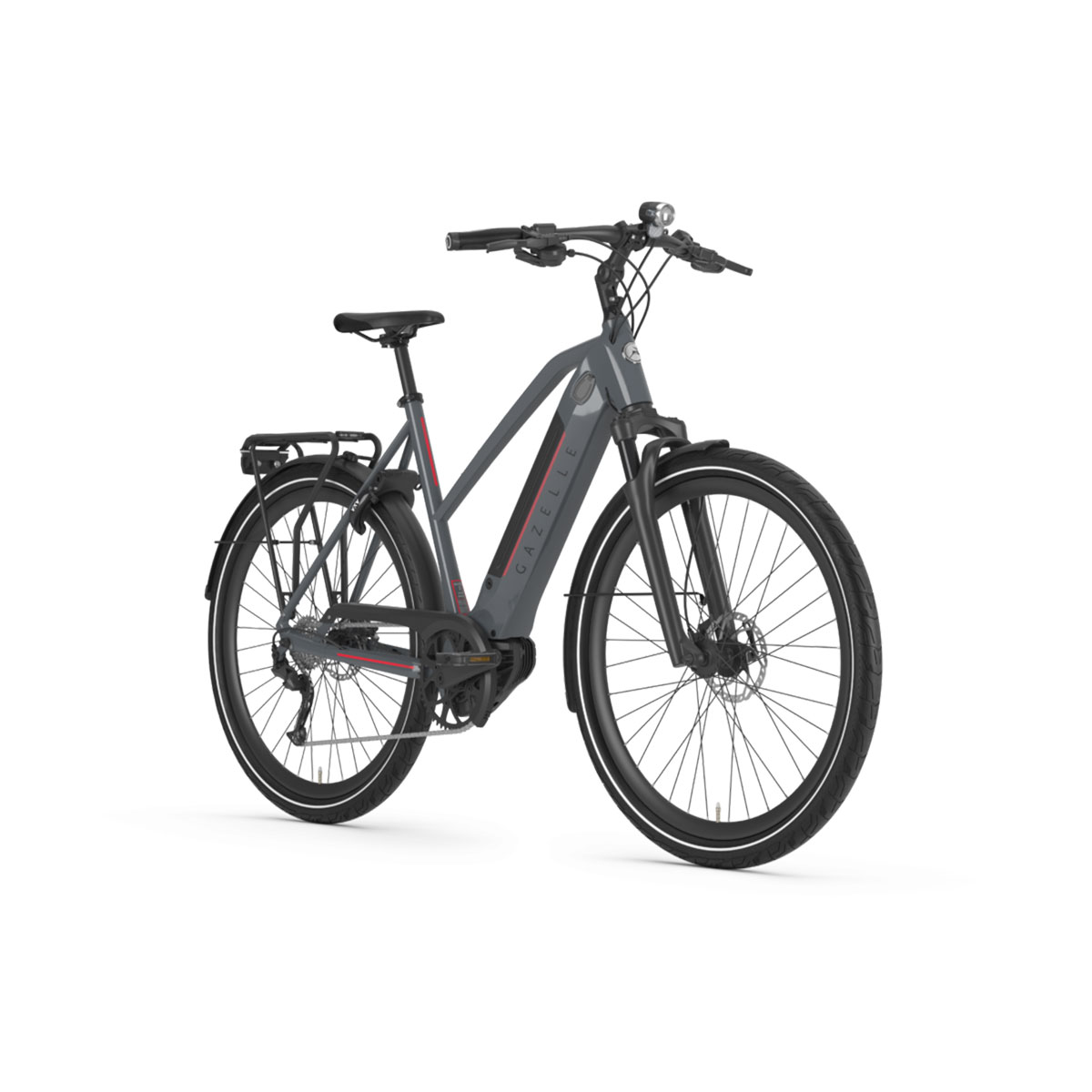

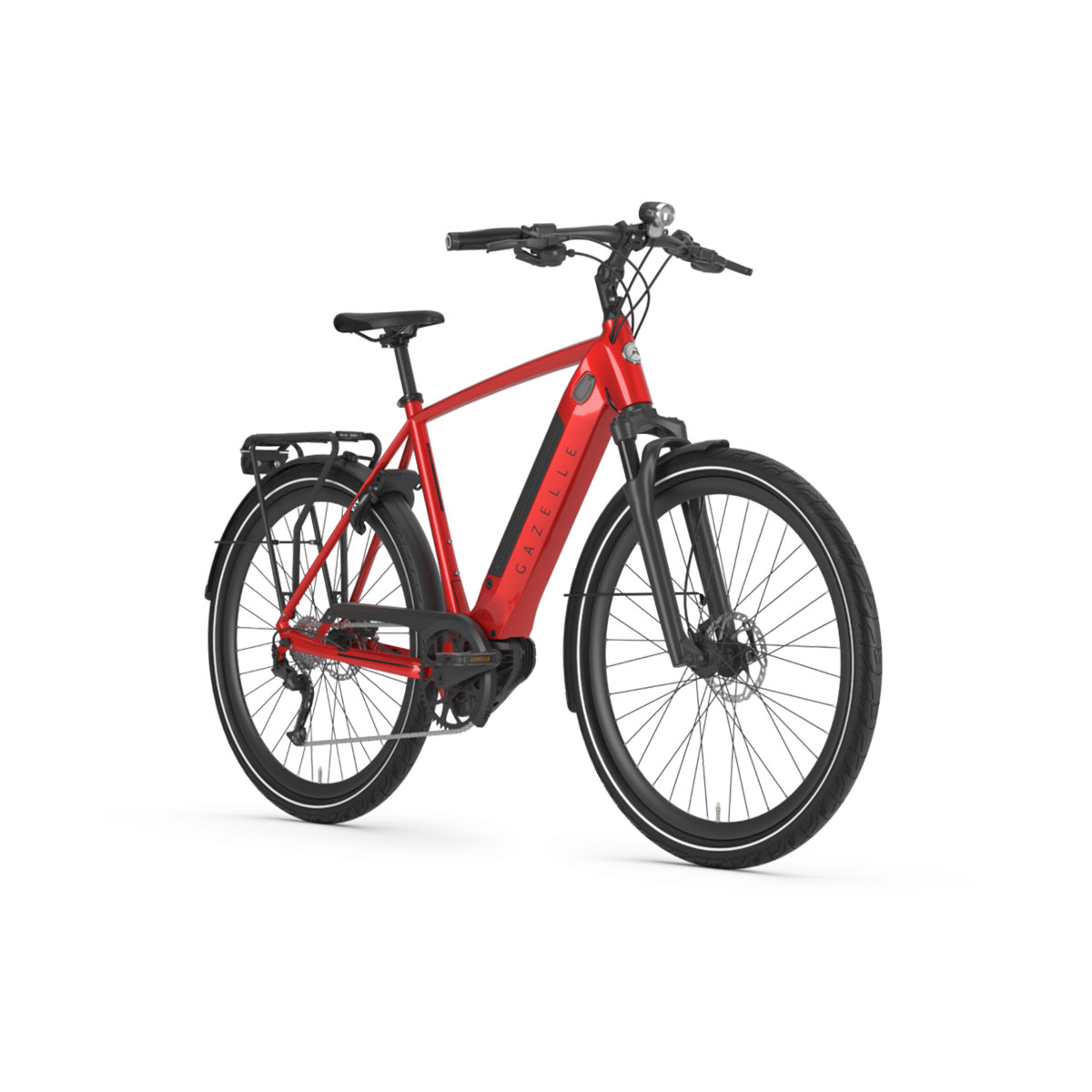

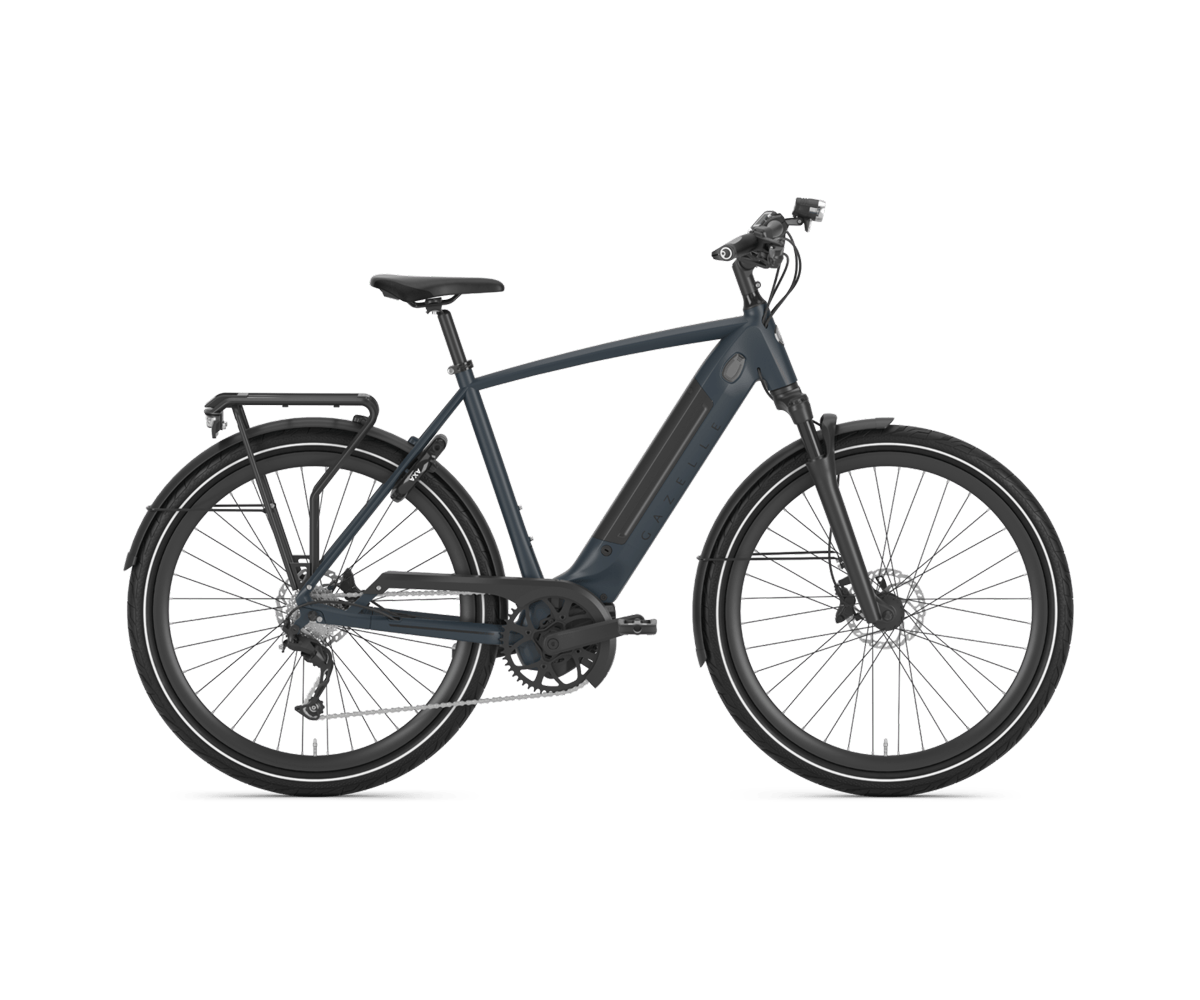

Arrive at work fast and relaxed with the Ultimate T10+ HMB. A dynamic contemporary design combined with the integrated motor and battery give the Gazelle Ultimate T10+ HMB a striking yet stylish presence. The aluminum frame is exceedingly stable, which translates into sporty handling and optimum agility. In addition to high-grade components, a high comfort level has been achieved by using puncture-resistant tires, ergonomic handlebar grips and a suspension front fork.
Original price was: $3,999.00.$3,499.00Current price is: $3,499.00.
The integrated in-tube design on the Gazelle Ultimate T10+ offers a sleek and modern look, and the high-capacity 500Wh battery provides extensive range.
The latest generation Bosch Performance Line Speed motor creates a smooth ride with powerful assistance (85Nm of torque) for fast, effortless cycling.
Maximum Range –Â 55 miles
Watt-hours – 500 Wh
Capacity – 13.4 Ah
Eco Range – 55 miles
Tour Range – 35 miles
Sport Range – 25 miles
Turbo Range – 20 miles
The Bosch Performance Line Speed has enormous power. With assistance up to 28 mph and a torque of 85 Nm, you can easily leave everyone behind. Ideal for commuting to work and for long trips. Who says that electric bikes are dreary?
Weight in Lb. – 51.1
Color name cloud grey
Segment – Electric bicycles
Sitting position – Sporty
Frame shape – Mid-step
Size 46, 53, 57
Frame description – Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Frame material –Aluminium
Cabels integrated – Yes
Fork material – Aluminium
Fork suspension type – telescopic
Travel of suspension fork – 80 mm
Front fork suspension lock-out – Yes
Wheel size – 28″
Rims – Ryde Dutch
Spoke description – Stainless steel, extra strong
Tires – Schwalbe Energizer Plus
Tire color – black
Tires puncture resistant – Yes
Gear system description – 10-speed Shimano Deore
Gear type –Â derailleur , Gears –Â 10
Rear derailleur – Shimano Deore
Front chainwheel – 48
Rear chainwheel – 11-36
Drivetrain – Chain
Brake Front – Disc brake with hydraulic control
Brake Rear – Disc brake with hydraulic control
Disc brake rotor size front – 180 mm
Disc brake rotor size rear – 160 mm
Brake system description front – Shimano MT-420/ Magura MT C4
Brake system description rear – Shimano MT-420/ Magura MT C4
Handlebar description – Aluminium, slightly curved model
Adjustable stem – Yes
Grip type – Ergon GP1-L, ergonomic
Grips – Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
Saddle – Selle Royal Essenza
Seatpost description – Fixed
Light front description – LED headlamp, on/off switching via display
Front light power source – Battery , Front light lux – 50
Front light type – Axa Blue Line 50
Rear light power source – Battery
Ebike system short description – Bosch
Engine location – mid-drive motor
Max speed (mph) – Class 3 (28 mph)
Torque – 85
Engine model – Bosch Performance Line Speed (85 Nm)
Ebike sensors – pedal force sensor, rotation sensor, speed sensor
Type – Li-ion
Position –Â Integrated into frame
Replaceable – Yes
System – Bosch
Ebike charger description – 4 Ah
Amount of support levels – 4
Display control unit – Yes
Walk assist – Yes
Display Model –Â Bosch Purion LCD
Frame – 10 years’ warranty
Fork – 5 years’ warranty
Paint – 5 years’ warranty
Other parts – 2 years’ warranty
Battery – 2 years’ warranty
Motor – 2 years’ warranty
Display – 2 years’ warranty
Description – Ring lock
Safety leve – ART ** certified
Type – AXA Defender
Chaincase description – Aluminum
Kickstand type – drop-down rear stand
Kickstand – Ursus Mooi
Chaincase type- Chain guard
Rear carrier description – Gazelle commuter, aluminium
