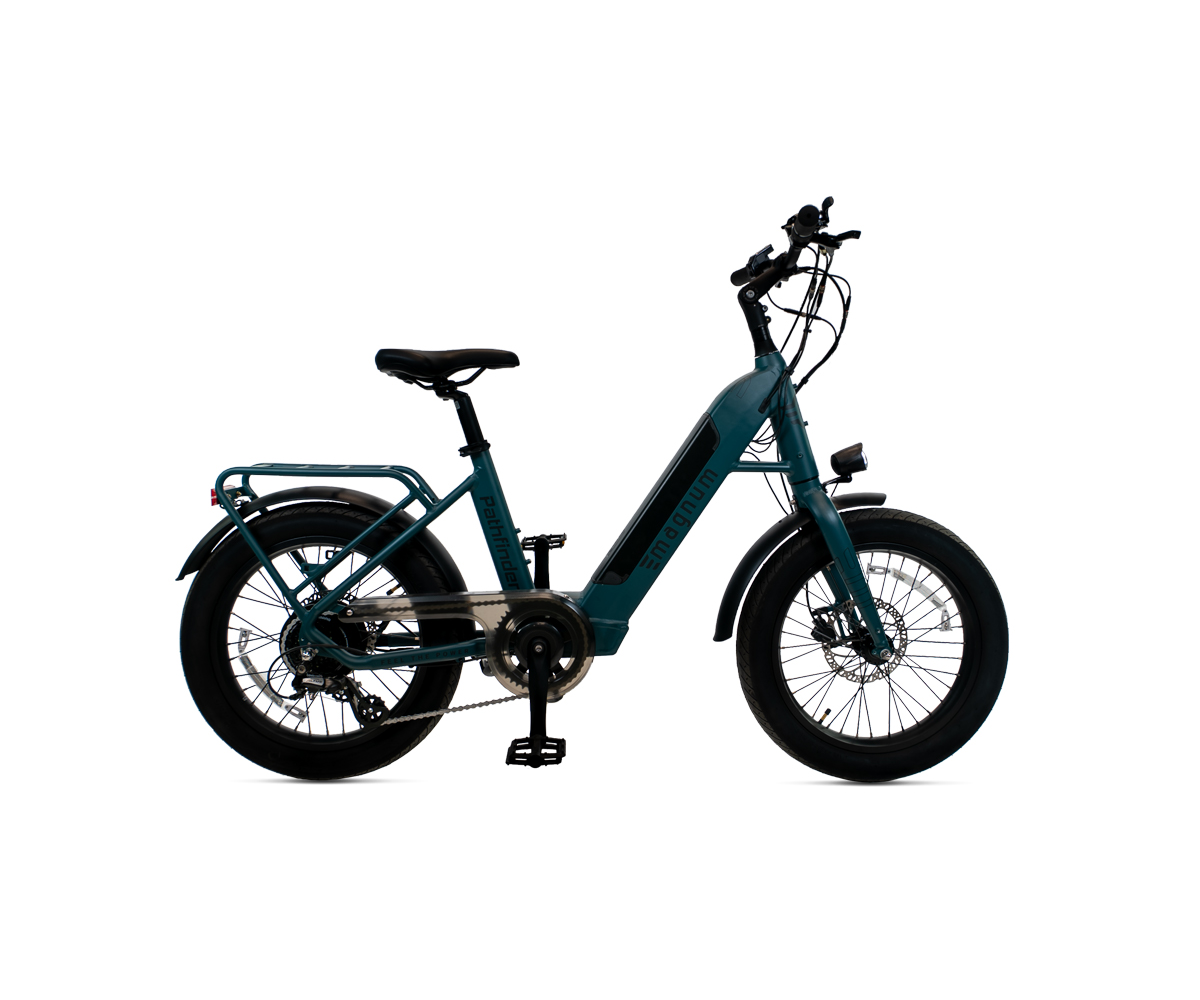

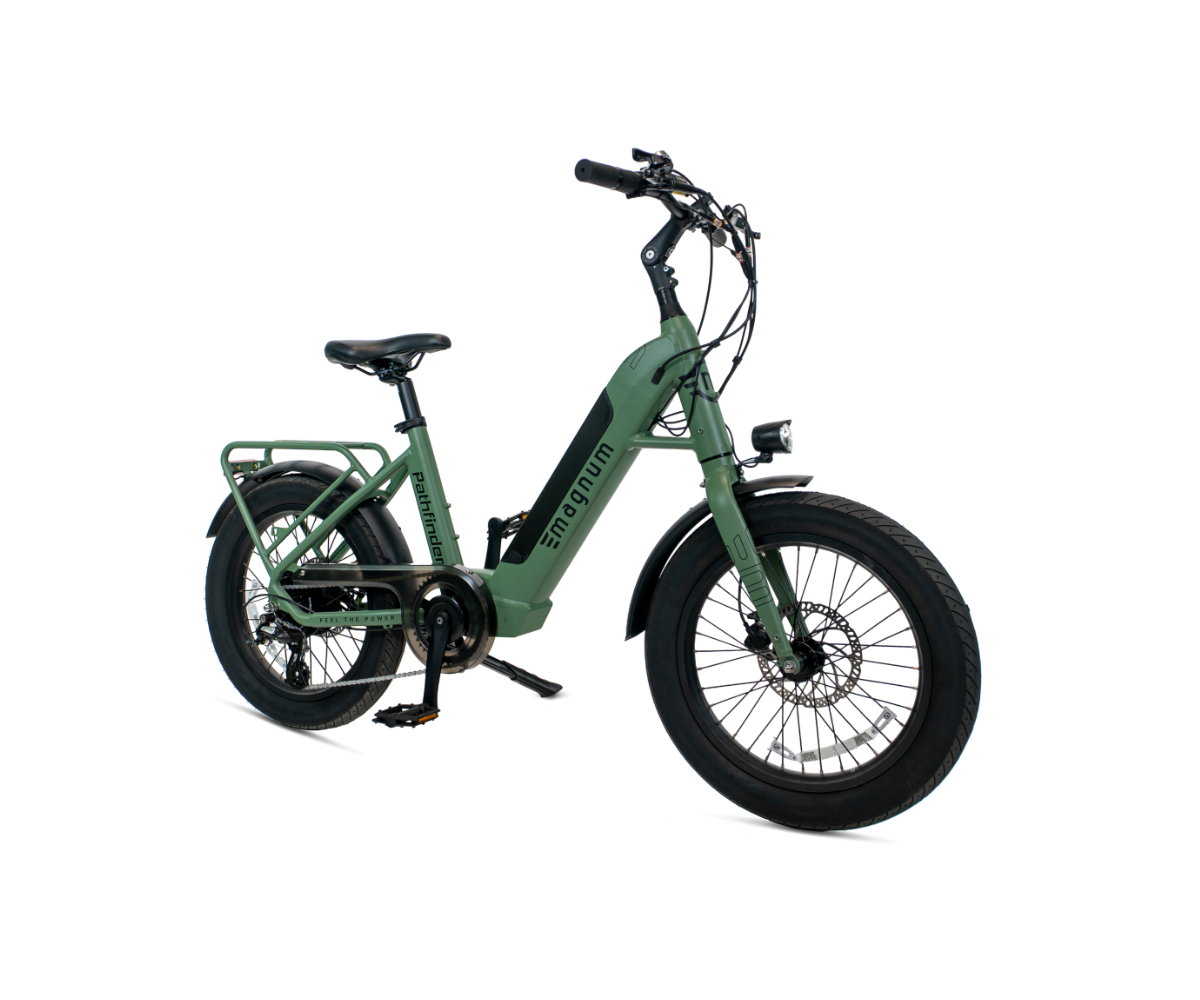

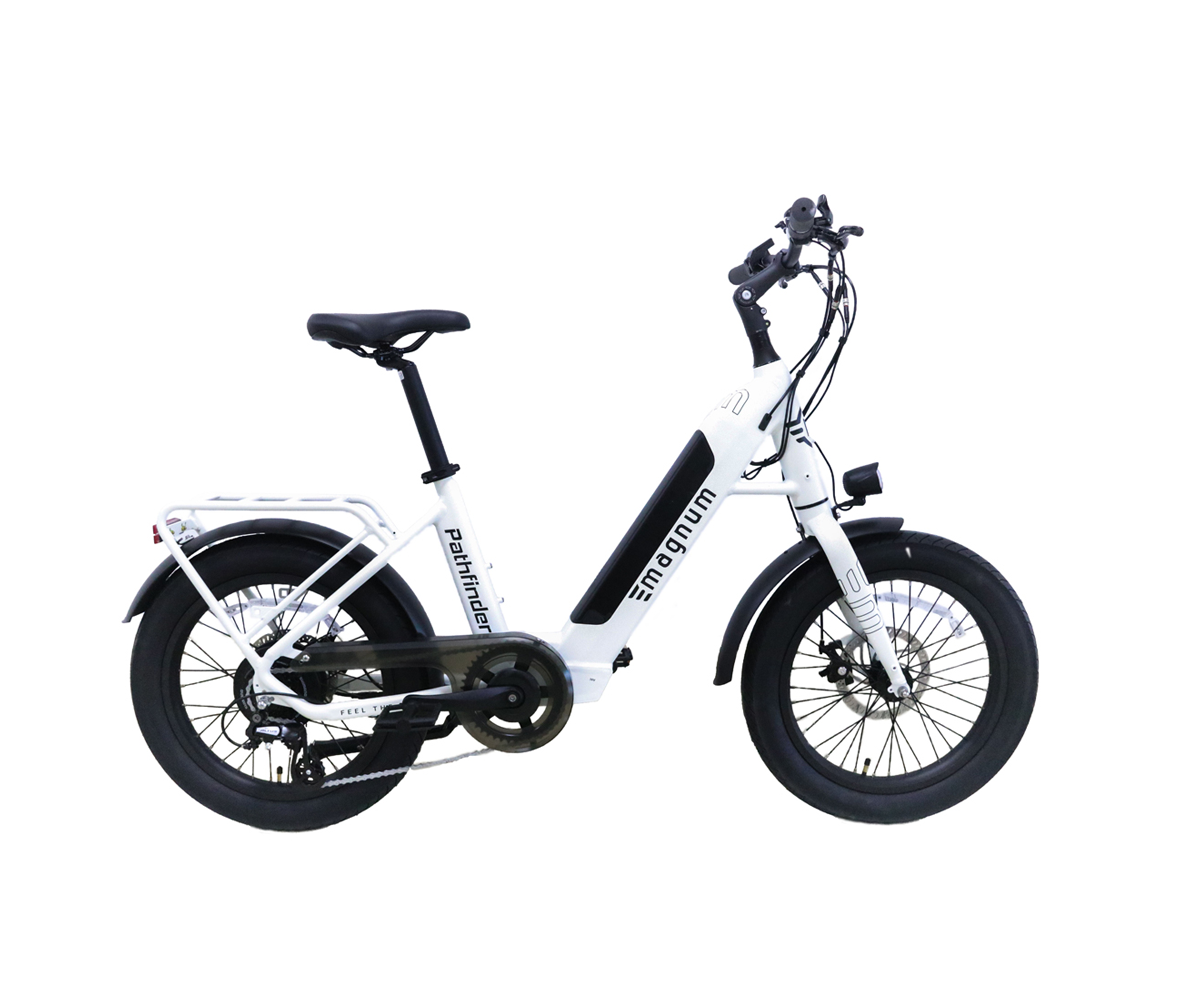

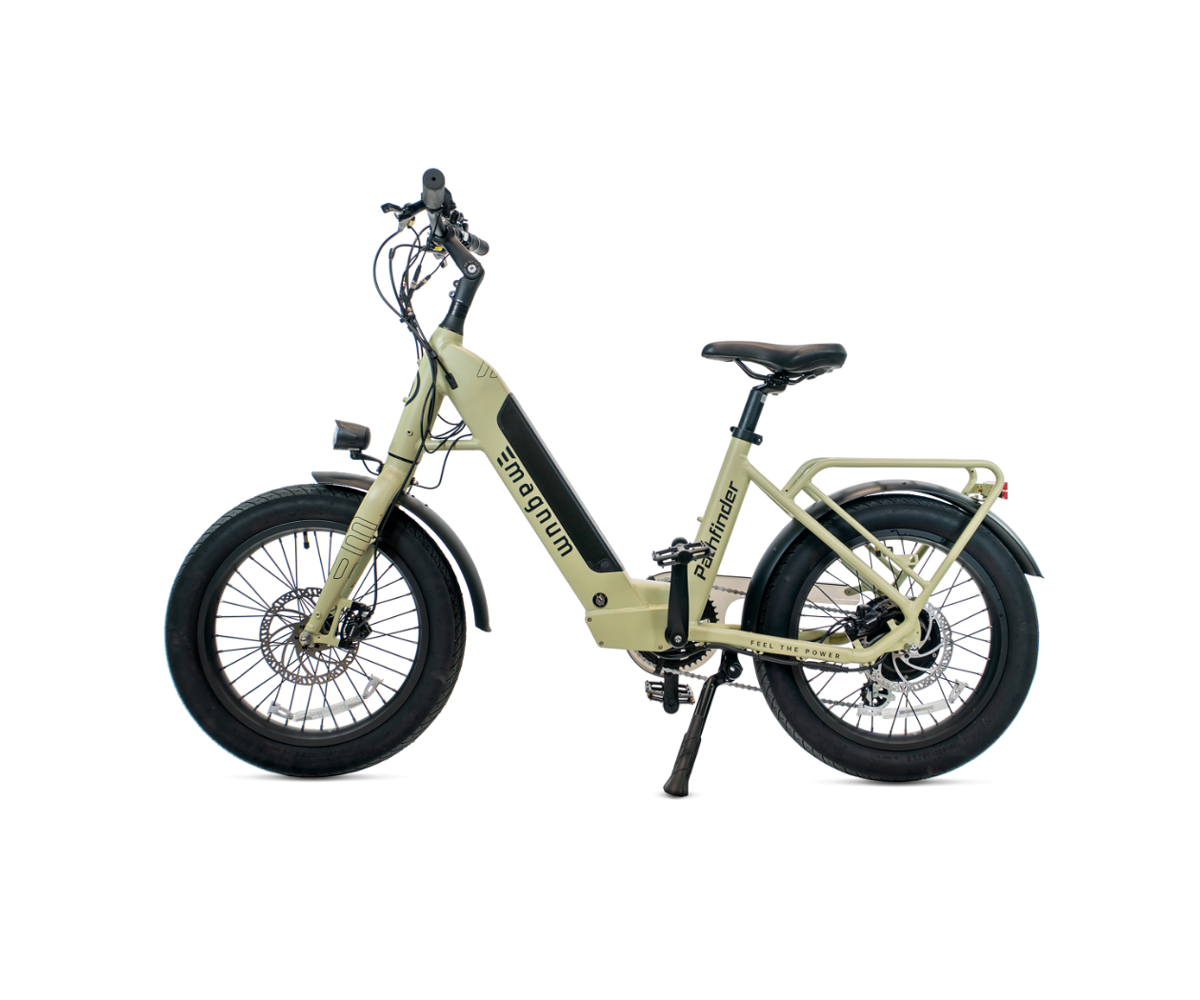

Work hard and play harder! The Magnum Pathfinder 350 is an e-bike that suits your active lifestyle. Whether it’s used for recreation, exercise, commuting, or for the pure joy of power-assisted movement, the unisex Magnum Pathfinder 350 with its step-through frame will match your physique and your skills, and exceed your expectations.
$1,599.00
The heart of the Magnum Pathfinder 350 is the integrated, long-range 36V / 13Ah / 468Wh battery that powers up to 40 mile-long rides, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
The Pathfinder’s 3” fat tires absorb shock and heighten stability. They will improve handling over unexpected pot holes and uneven pavement, providing extra traction, control, and comfort.
The powerful, reliable, and serviceable 350W motor has 6 modes of pedal assist, for speeds of up to 25 mph.
Clearly view the road ahead with the integrated, powerful front headlight, and alert other vehicles to your presence with the brake-activated rear taillight.
The long range 36V / 13Ah / 468Wh battery blends in smoothly with the frame for a sleek look. It powers a 25-50 mile range depending on variable like body and cargo weight, terrain, wind direction, and pedal assist level.
The Magnum Pathfinder 350’s rigid aluminum frame, with its step-through design is easy to mount and dismount, and it serves as a strong, reliable platform for the bike.
Plan your ride ahead with Magnum’s illuminated LCD display. It lists Battery Charge level, current speed, assist level, odometer, trip distance, average speed, and max speed- all the information you need right at your fingertips.
Brand – Vision In-House
Type- Rear Mounted Geared Hub
Nominal Output – 350 Watts
Peak Output – 500 Watts
Brand – LG
Voltage – 36 Volts
Ah – 13Ah
Wh – 468 Wh
Chemistry – Li-NMC
Charge Time (from empty) – 6.5 Hours
Minimum Range – 20 Miles (32 Kilometers)
Maximum Range – 40 Miles (64 Kilometers)
Display Type – Vision LCD Display
Display Readouts – Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed
Drive Mode- Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode
Top Speed – Up to 25 mph (40 km) with pedal assist, up to 20 mph with throttle only
Lights – Integrated Front And Rear Lights
Frame material – Aluminum Alloy
Frame size- 15.75” (40 cm)
Fork Details – Rigid Aluminum Alloy
Gearing details –Shimano 7-Speed
Shifter Details – Shimano 7-Speed
Crank – Aluminum Alloy, 44T, 165mm
Pedals – Wide Plastic Platform with Reflectors
Stem – Adjustable Aluminum Alloy
Brakes – Mechanical Disc Brakes
Grips – Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle
Saddle – Velo Gel Comfort
Tire Brand – CST Big Boat 20 x 3.0
Wheel size – 20″
Fenders – Front and Rear Included
Chain- KMC Z-Chain
Seat Tube – 15.75″ (40 cm)
Reach- 17″ (43 cm)
Stand Over Height- 16″ (40 cm)
Virtual Top Tube Length – 24″ (61 cm)
Min Saddle Height- 20.5″ (52 cm)
Max Saddle Height – 29.5″ (75 cm)
Width – 24″ (61 cm)
Wheelbase – 43″ (109 cm)
Length – 63.75″ (162 cm)
Total Weight- 59 lbs (26.75 kg)
Battery Weight – 7.5 lbs (3.4 kg)
Recommended Minimum Rider Height- 4’10”
Max Load Capacity- 265 lbs. (100 kg)
Kickstand- Includes Center-Mounted Single Side Adjustable Length Kickstand
Bell- Includes Bell
Charger – 36V / 2A
Front Rack- Optional Front Rack (Not Included)
Rear Rack – Includes Rear Rack
Fenders – Front and Rear Fenders
Accessory Mounts – Bottle Cage, Front Rack
