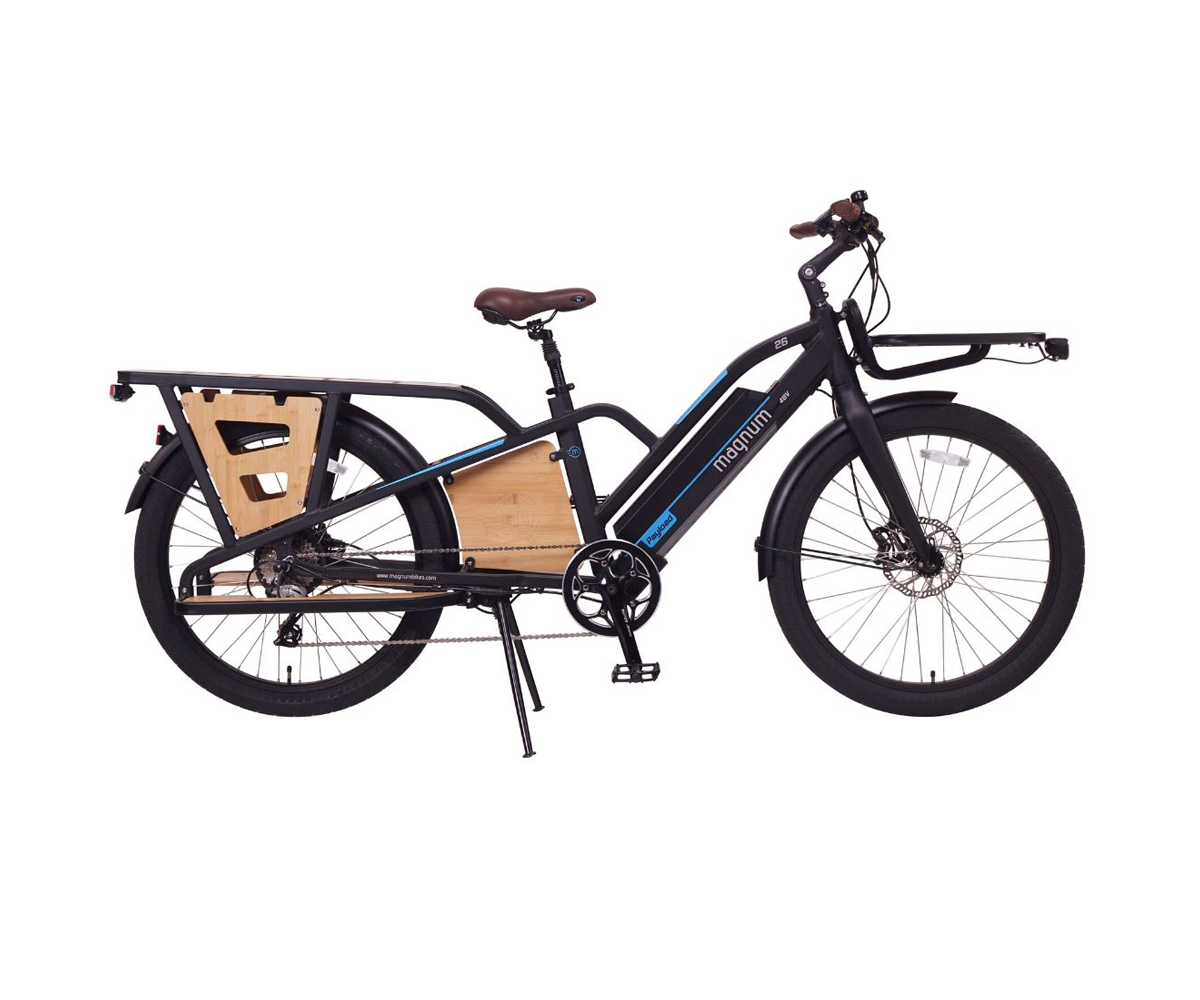

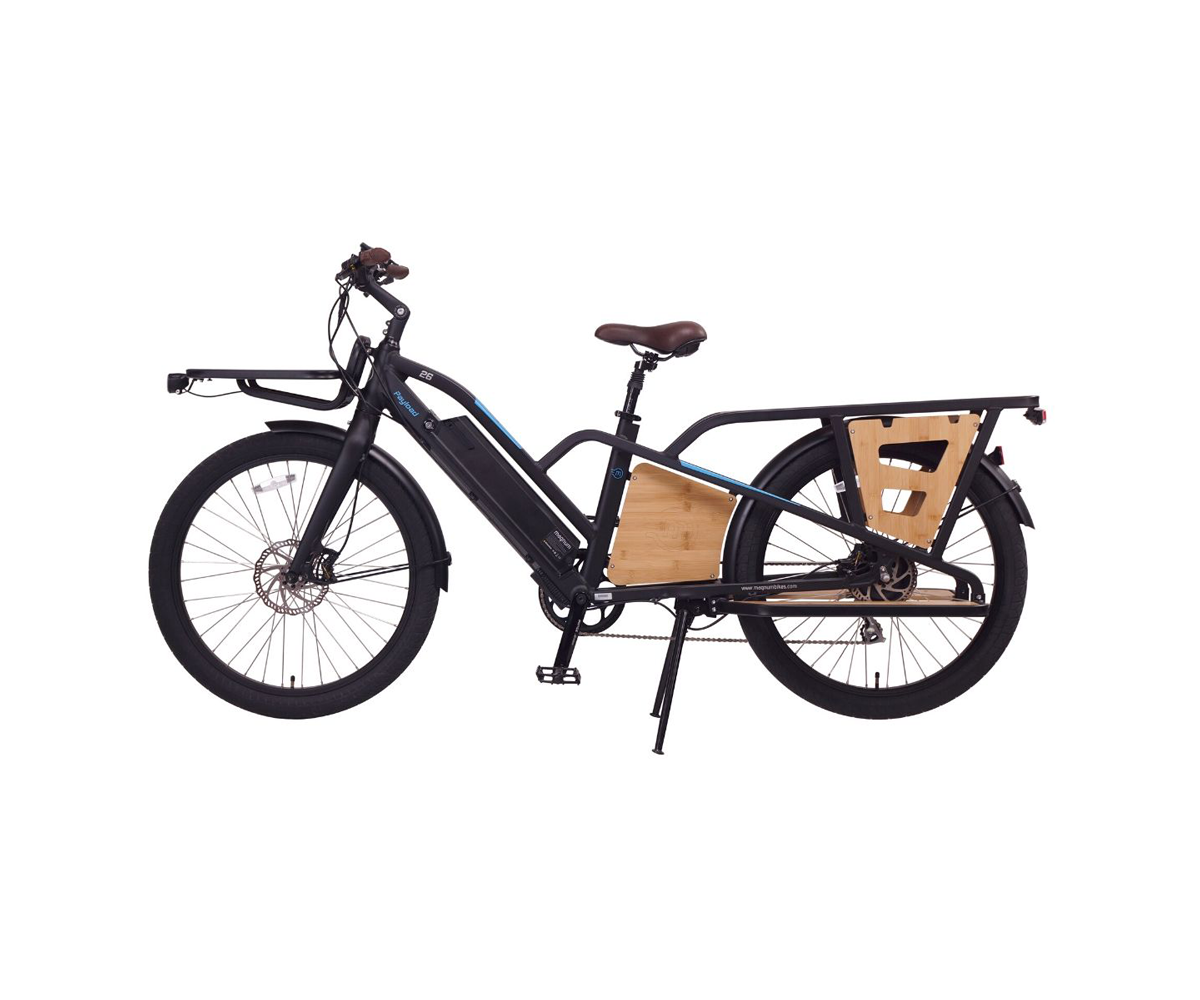

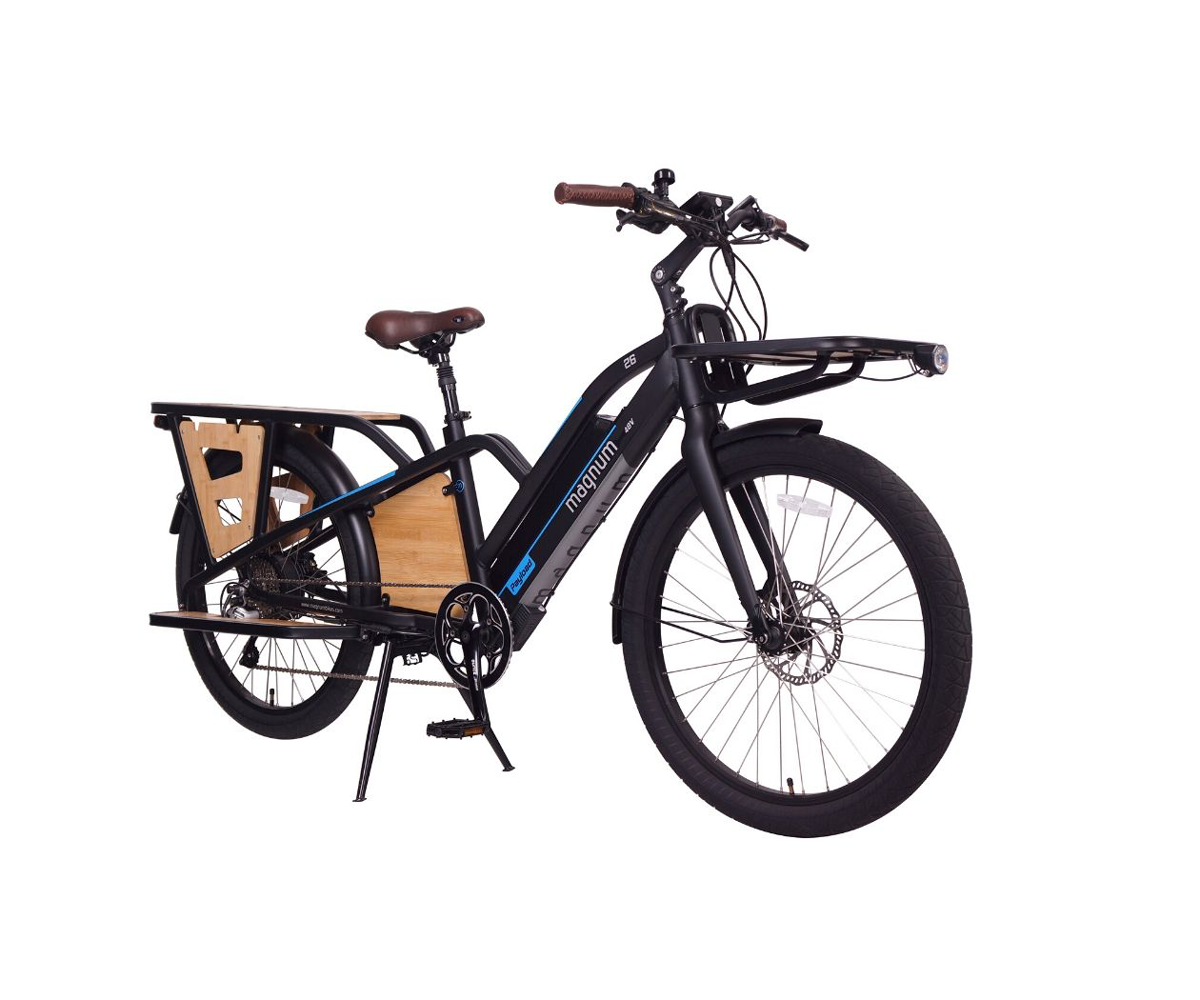

The Magnum Payload is a perfect Cargo bike!
Price range: $2,499.00 through $2,899.00
The Magnum Payload is the pickup truck of electric bikes! The Payload can handle all of the things you might do with a truck: running errands, grocery shopping, even taking a child passenger along with you. Built for utility, strength and reliability.
The Magnum Payload’s large, 48W battery can handle all the demands of a cargo bike, and it will power a range of up to 60 miles, depending on cargo weight, wind and terrain variables.
The Payload’s stout, integrated rear carrier is a part of the frame itself, so it can handle heavy loads or accommodate an extra child passenger (child seat not incl.). Max load capacity: 179 lbs (81 kg)
The Payload’s step-through frame is easy to mount and dismount when running errands, and it has the strength to support heavy loads.
Tektro Hydraulic disc brakes bring you to a smooth, controlled stop.
The Magnum Payload’s easy-to-use trigger throttle can access the power of the motor, so you don’t have to pedal when carrying heavy loads.
Foot rests for a second rider (usually a child) are integrated into the frame and rear carrier assembly.
500W Motor with 6 modes of pedal assist, for speeds of up to 25mph.

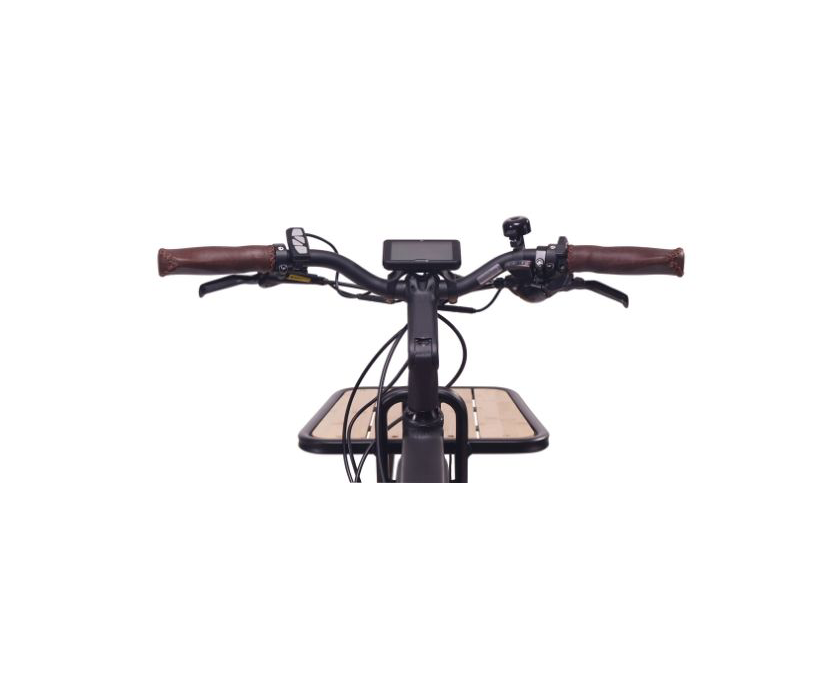

The Das-Kit C7 Fixed, Backlit, Monochrome LCD display shows: Power Output Indicator, Battery Level, Speed, Assist Level, Odometer, Trip Distance, Trip Time and Battery Voltage.
Model: Magnum Payload Cargo E-Bike
Body Position: Upright
Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty: One Year Limited Warranty
Max Load: 350lbs
Motor Type: Das-kit Rear Geared Hub Motor
Motor Output: 48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh or 48V / 18Ah / 864Wh
Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time: 6.5 Hrs
Estimated Min And Max Range: 25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)
Display Type: Das-Kit C7 Fixed, Backlit, Monochrome Lcd
Display Records: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed: 25mph With Pedal Assist, 20mph Throttle Only
Lights: Front and rear light
Frame Type: Step-thru Cargo
Frame Material: 6061 Aluminum Alloy
Fork Details: Rigid Alloy Fork
Gearing Details: Shimano, Acera RDM360 Derailleur, 8 Speed
Shifter Details: Shimano Altus M310 8 Speed
Cranks: Prowheel 165mm 48T
Pedals: Wellgo
Stem: Promax MA-579
Brake Details: Tektro Hydraulic Disc Brakes 180mm Front Rotor, 160mm Rear Rotor
Grips: Selle Royal
Saddle: Selle Royal Brown
Seatpost / Seatpost Dimensions: Promax Aluminum with suspension, 27.2 X 350mm
Fenders: Front And Rear
Tires: CST
Wheel Size: 26″ X 1.75″
