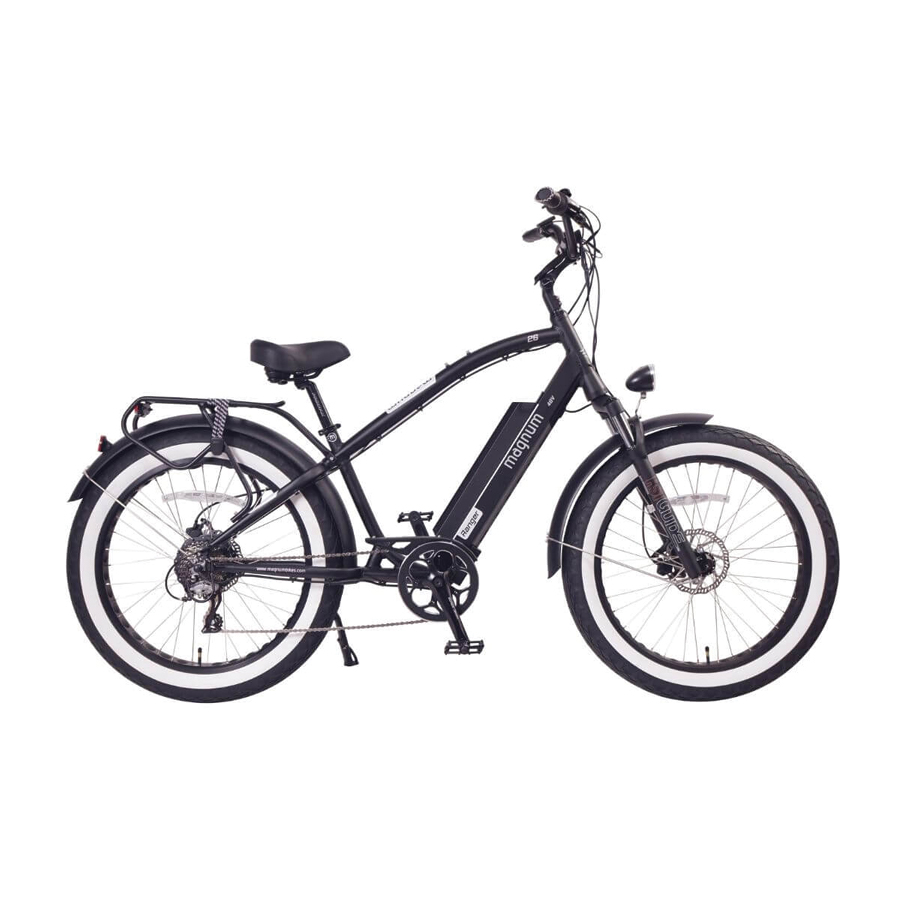

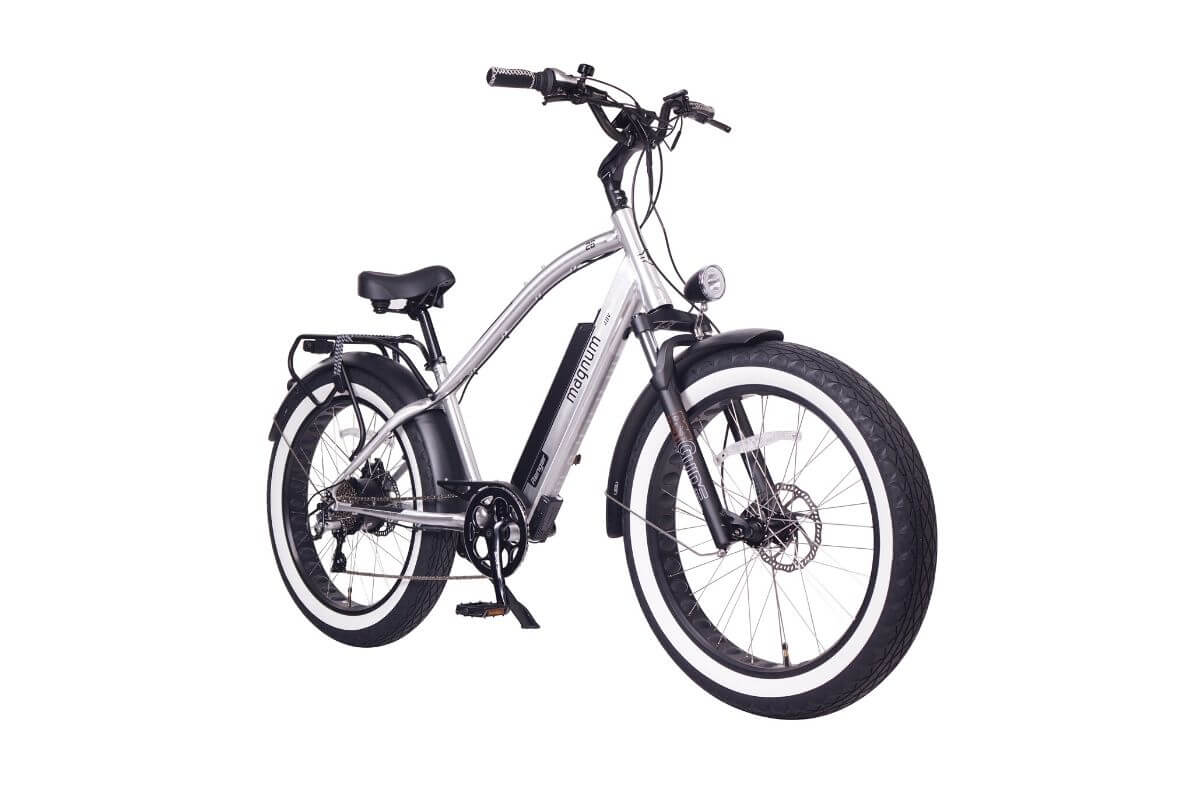

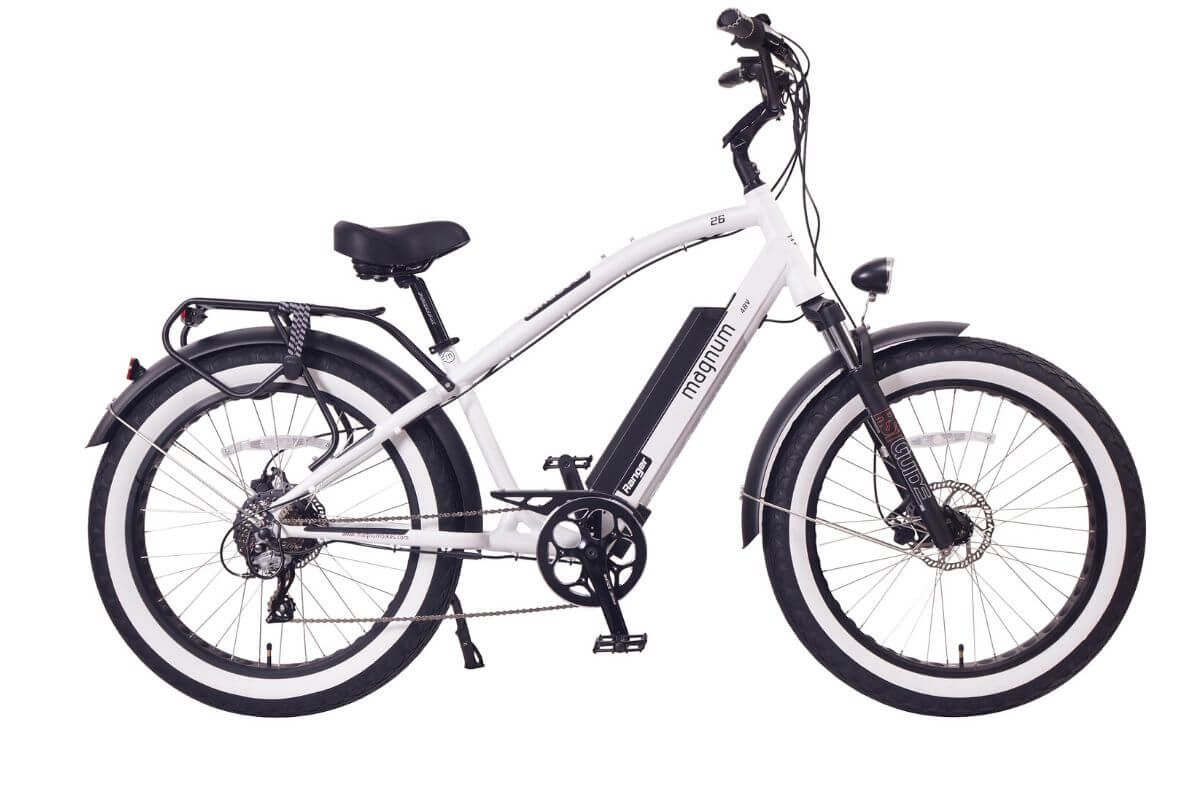

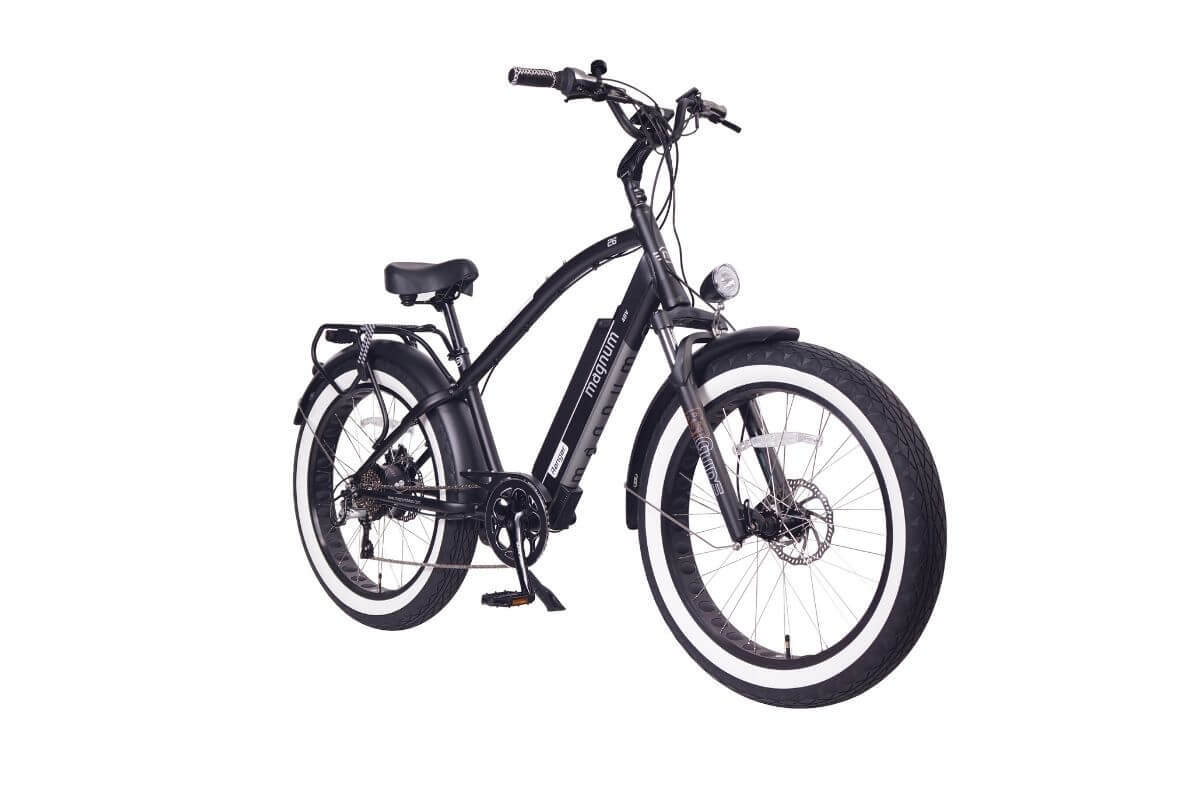

Magnum Ranger 1.0

Model Details

Body Position:

Upright, Upright Relaxed

Warranty:

1 Year Comprehensive

Max Load:

265lbs

Magnum Ranger 1.0 Electronic Details

Motor Type:

Das Kit 750w Rear Geared Hub Motor

Motor Output:

48v 750w

Battery Voltage / Amp Hours / Watt Hours:

48v / 13ah / 624wh / With Usb Port

Battery Chemistry:

Lithium Nickel Cobalt Manganese (Li-ncm)

Estimated Charge Time:

6.5 Hrs

Estimated Min And Max Range:

25 To 75 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)

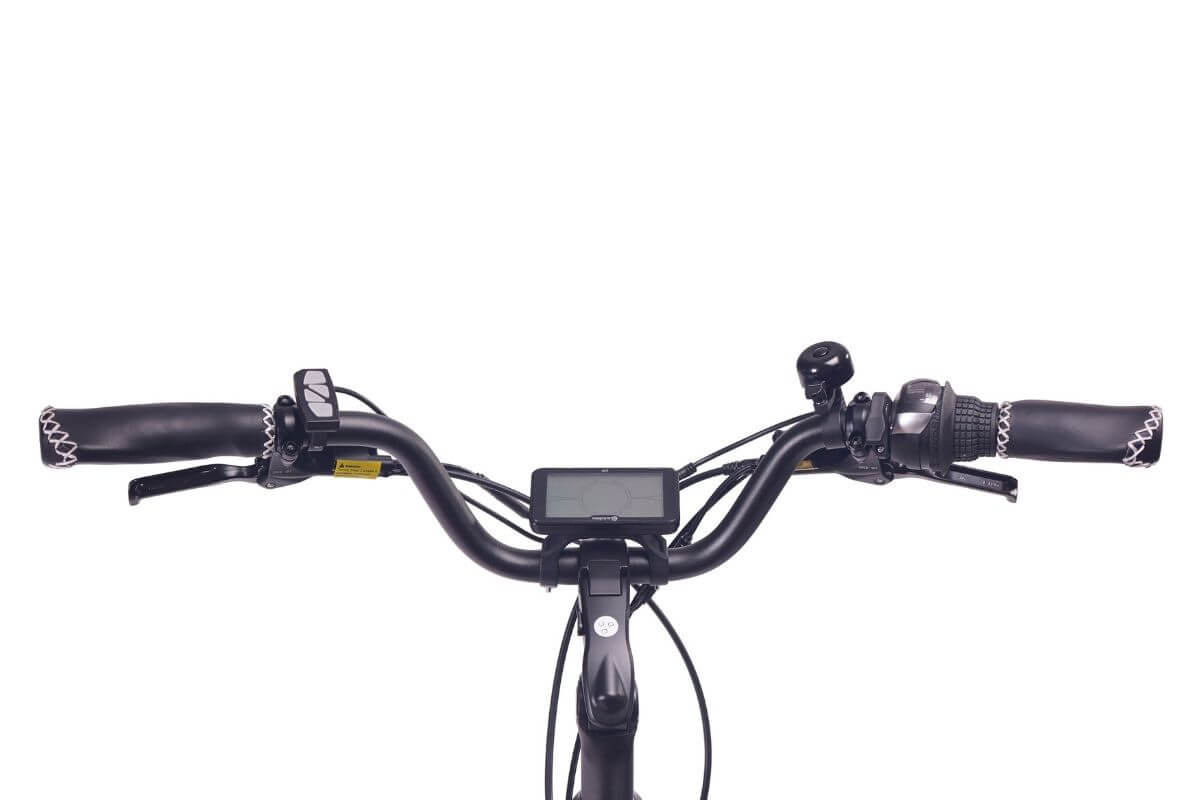

Display Type:

Das-kit C7, Fixed, Backlit, Monochrome Lcd

Display Records:

Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage

Drive Modes:

Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed:

25mph With Pedal Assist, 20mph Throttle Only

Lights:

Independent Front Headlight, Independent Rear Light

Bicycle Details

Total Weight:

80lbs

Battery Weight:

9lbs

Frame Type:

High Step

Frame Material:

6061 Aluminum Alloy

Fork Details:

Rst Guide Spring Suspension, 80mm Travel With Lockout

Attachment Points:

Rear Rack Bosses, Fender Bosses

Gearing Details:

Shimano, Acera Derailleur, 8 Speed

Shifter Details:

Shimano Grip Revoshift 8 Speed, 11-32t

Cranks:

Prowheel Ounce 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket

Pedals:

Wellgo Alloy Platform Vb087

Stem:

Promax, Tool-free Adjustable, 100mm Length

Brake Details:

Tektro Auriga Hydraulic Disc Brakes With Motor Inhibitors 180mm Front, 160mm Rear

Grips:

Selle Royal Brown

Saddle:

Selle Royal Cruiser With Gel And Dual Spring Suspension

Seatpost / Seatpost Dimensions:

Promax, Sp-252 / 30.4 X 300mm

Fenders:

Front And Rear

Rims:

Aluminum Alloy, Double Walled, Oval Cut Outs, 81mm Outer Diameter, 36 Hole

Tires:

Chao Yang H-5193

Wheel Size:

26″ X 4.0”
