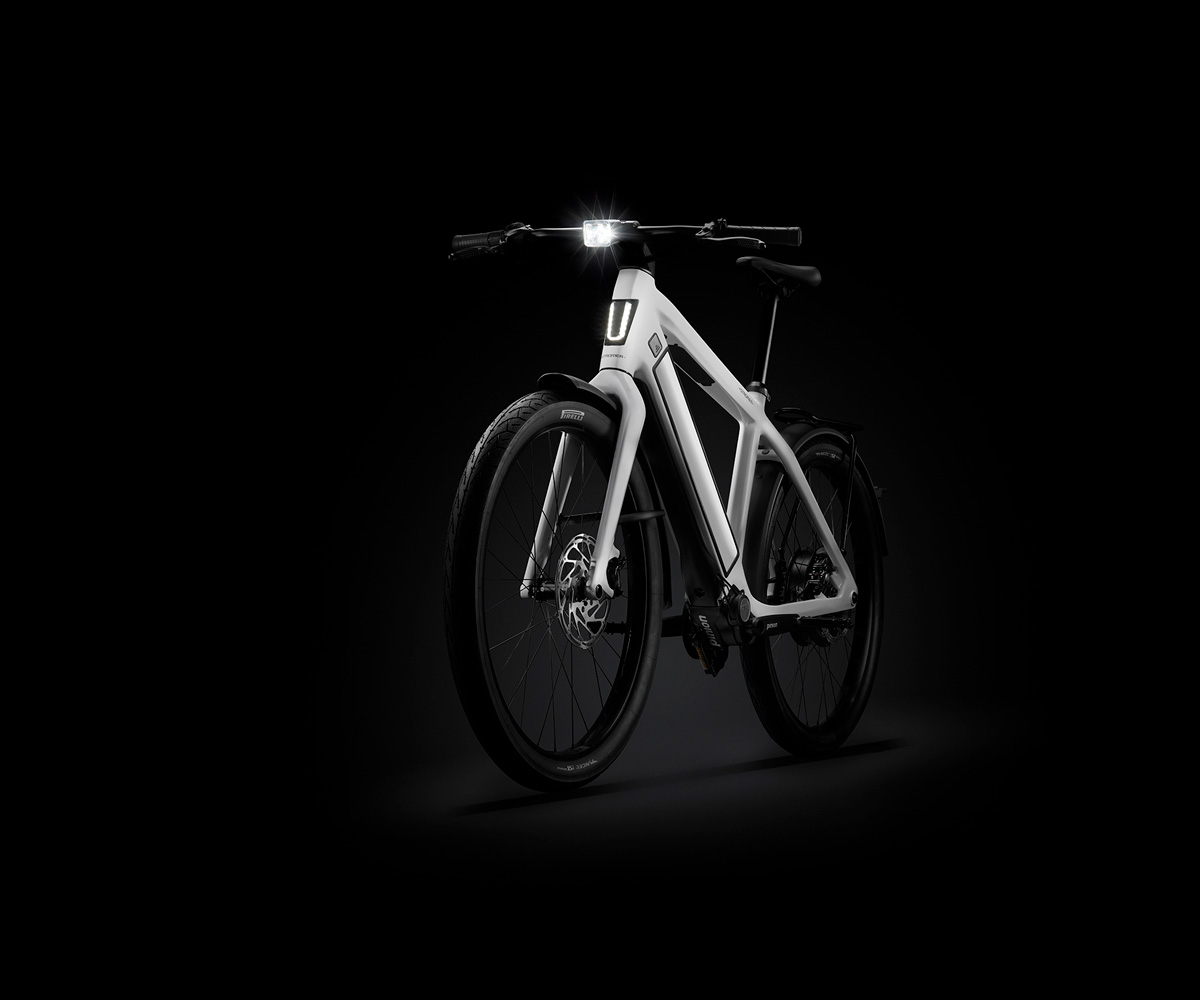

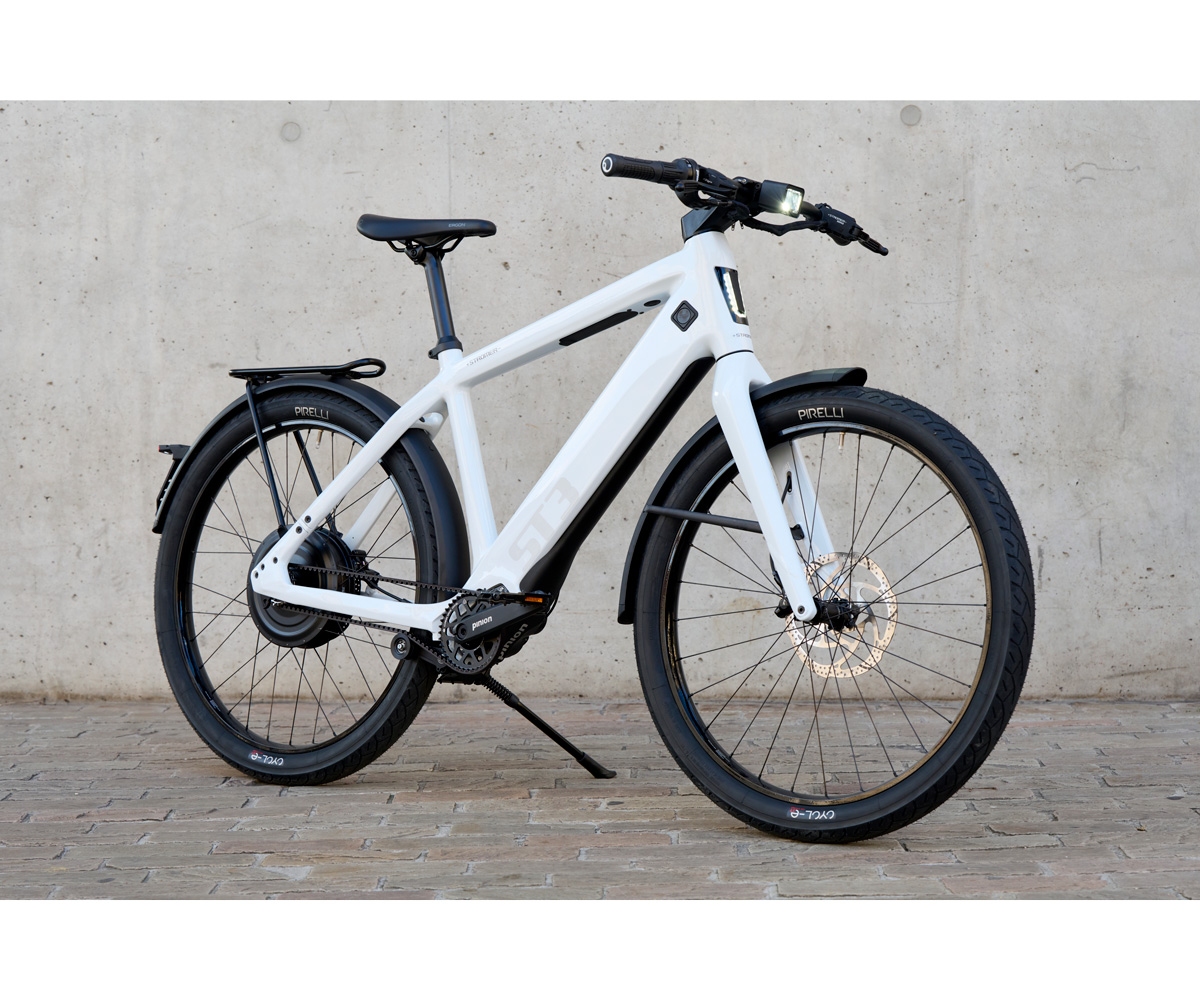

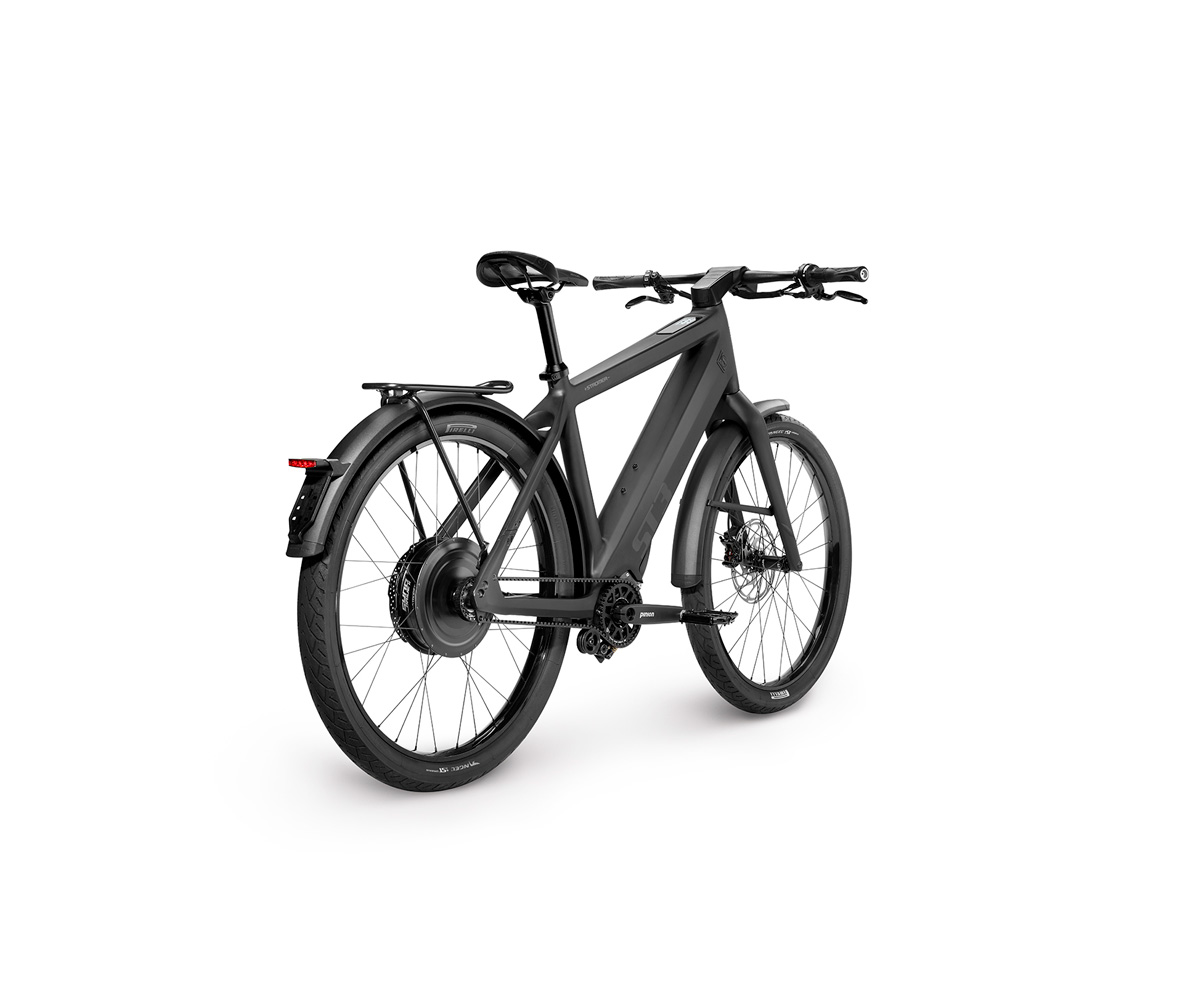

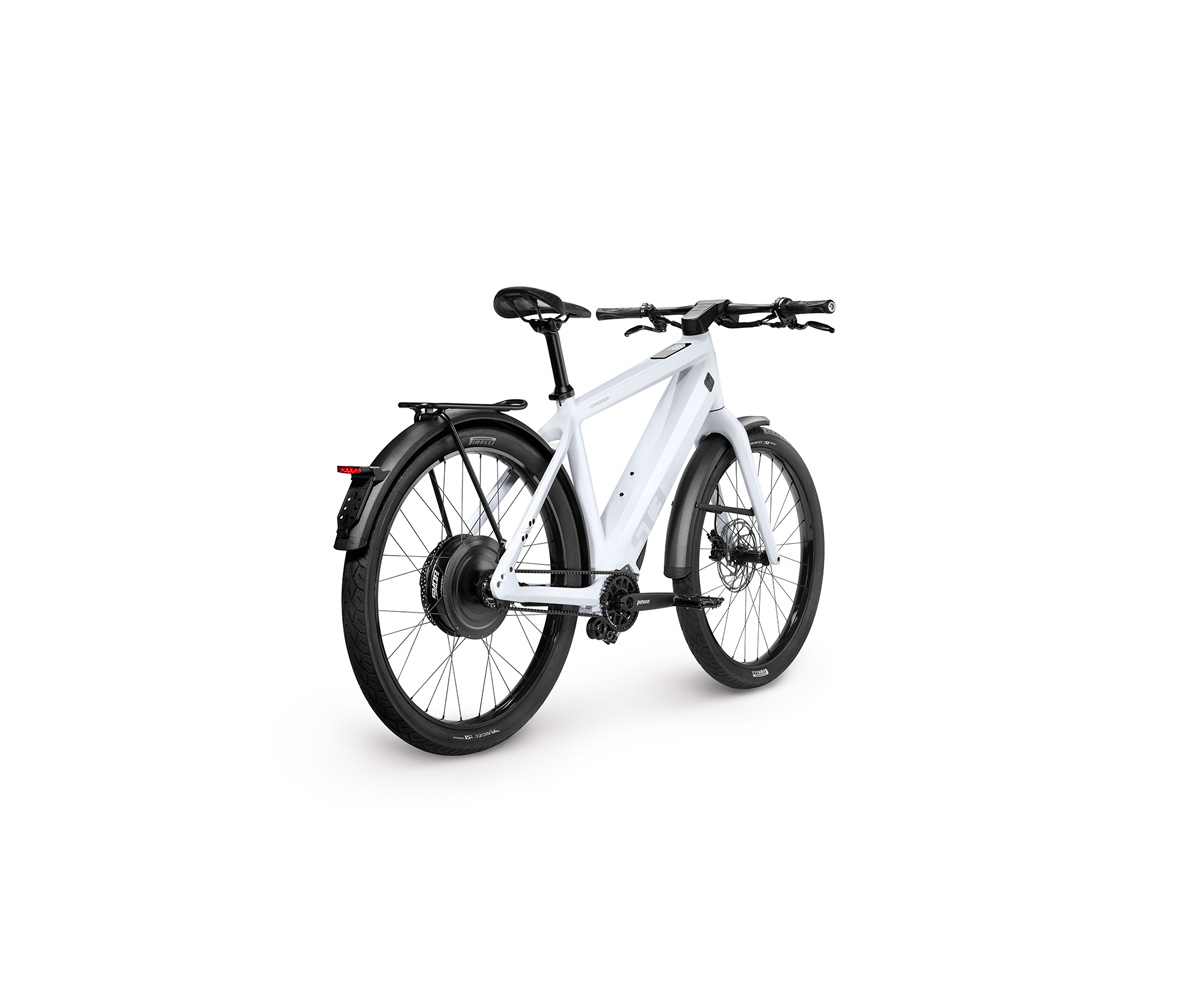

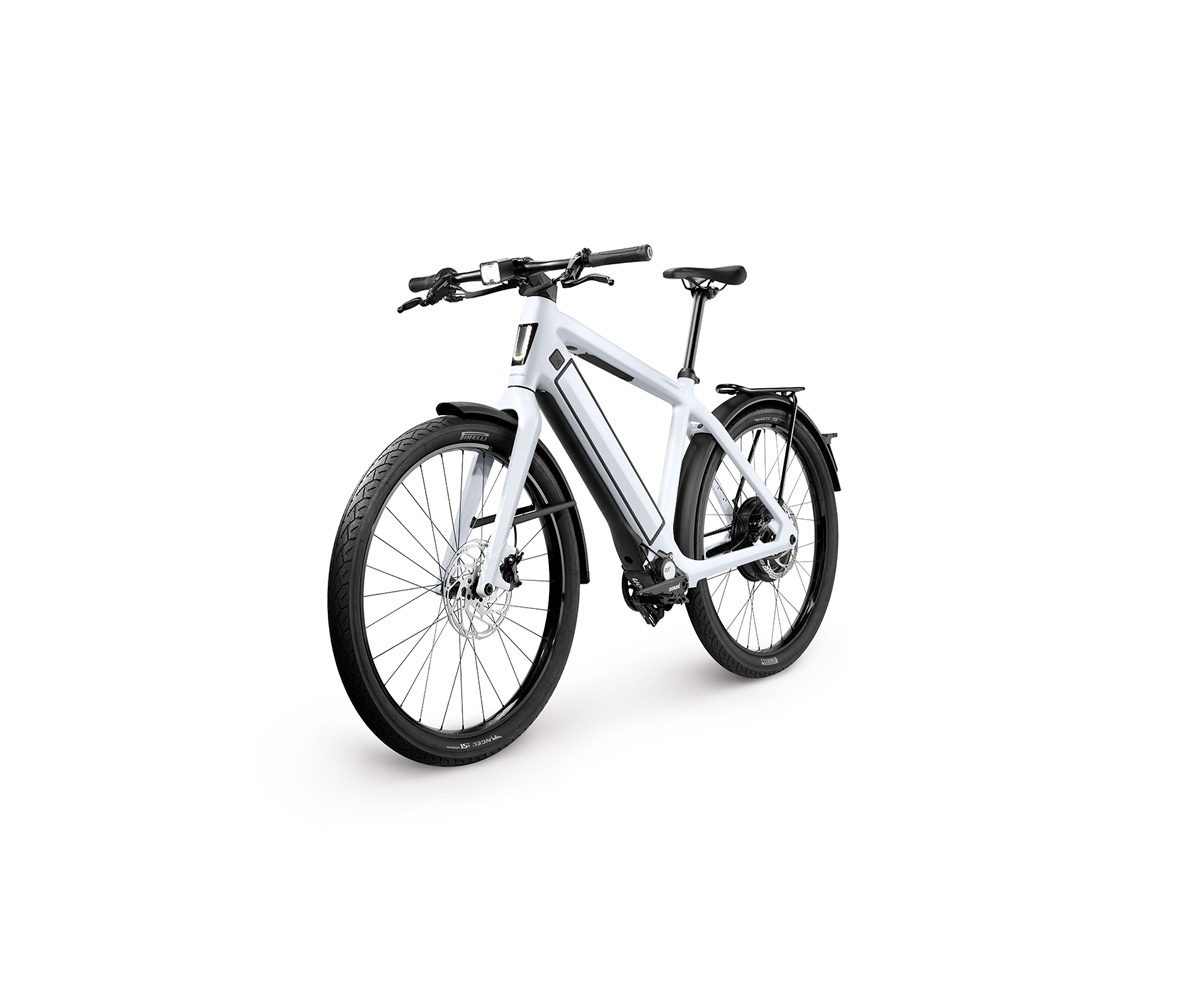

The Stromer ST3 Pinion is an extraordinarily dynamic S-Pedelec that is ideal for daily use. The customizable riding position and the smart extras ensure comfortable, stylish and efficient mobility in commuter traffic. Extremely low maintenance thanks to the Pinion and Gates carbon belt drive.
Price range: $8,800.00 through $9,695.00
The Stromer ST3 Pinion offers Incomparable Stromer riding fun: powerful, dynamic and silent.
Very powerful rear-wheel motor with assistance up to 28 mph.
Range : up to 90 miles (can be optionally upgraded to 110 miles)

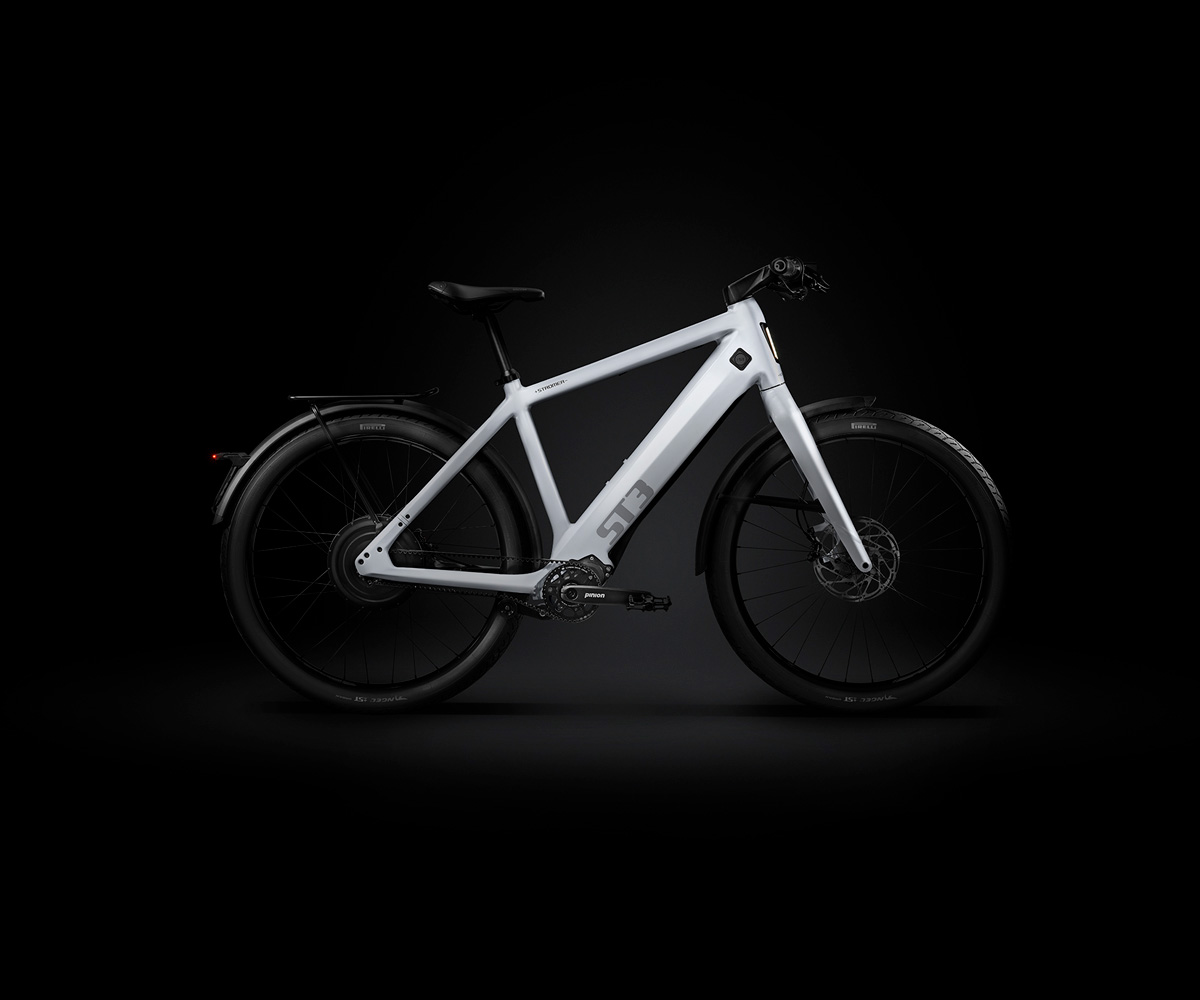

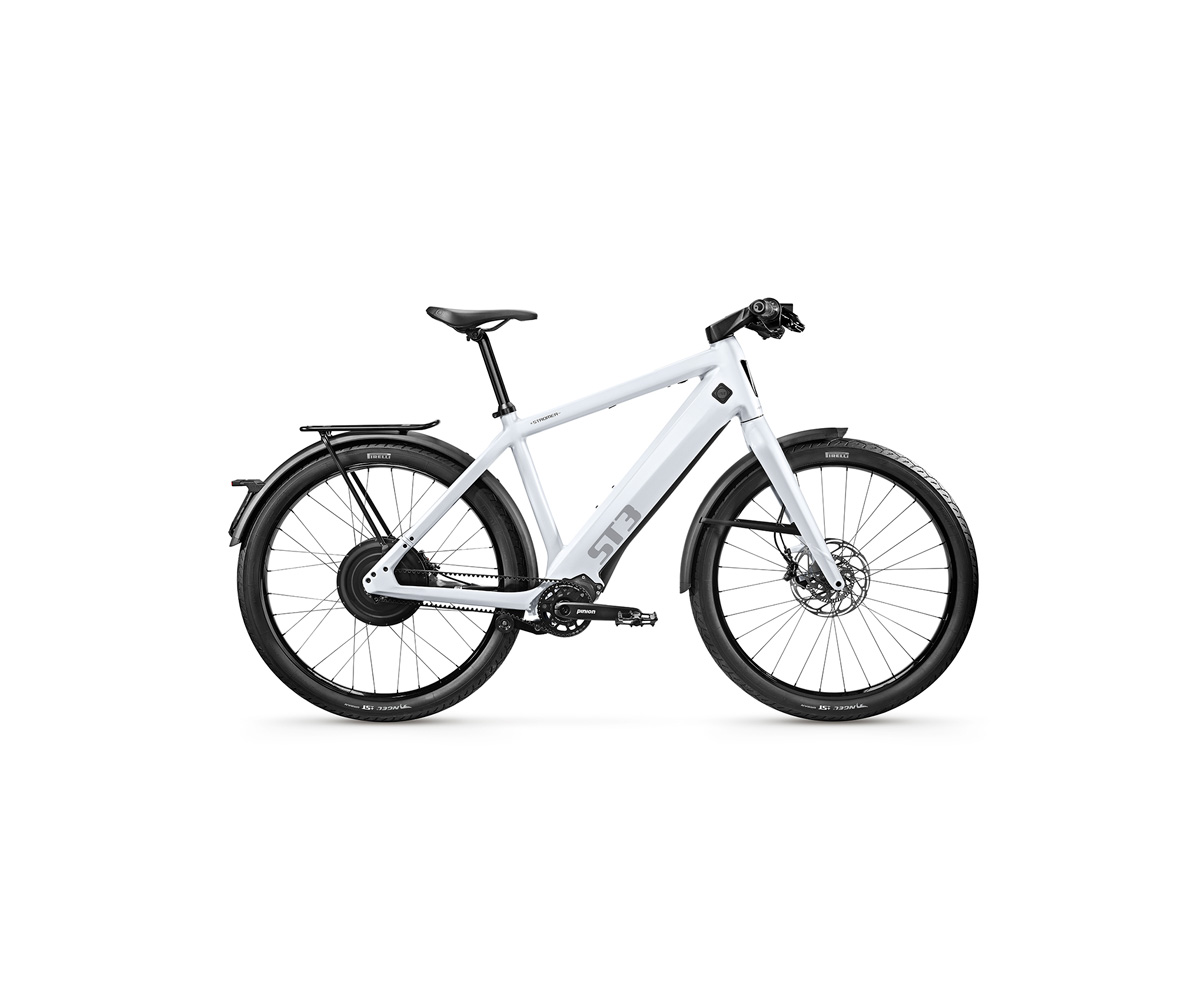

Available with or without ABS (front)
Customizable, comfortable riding position

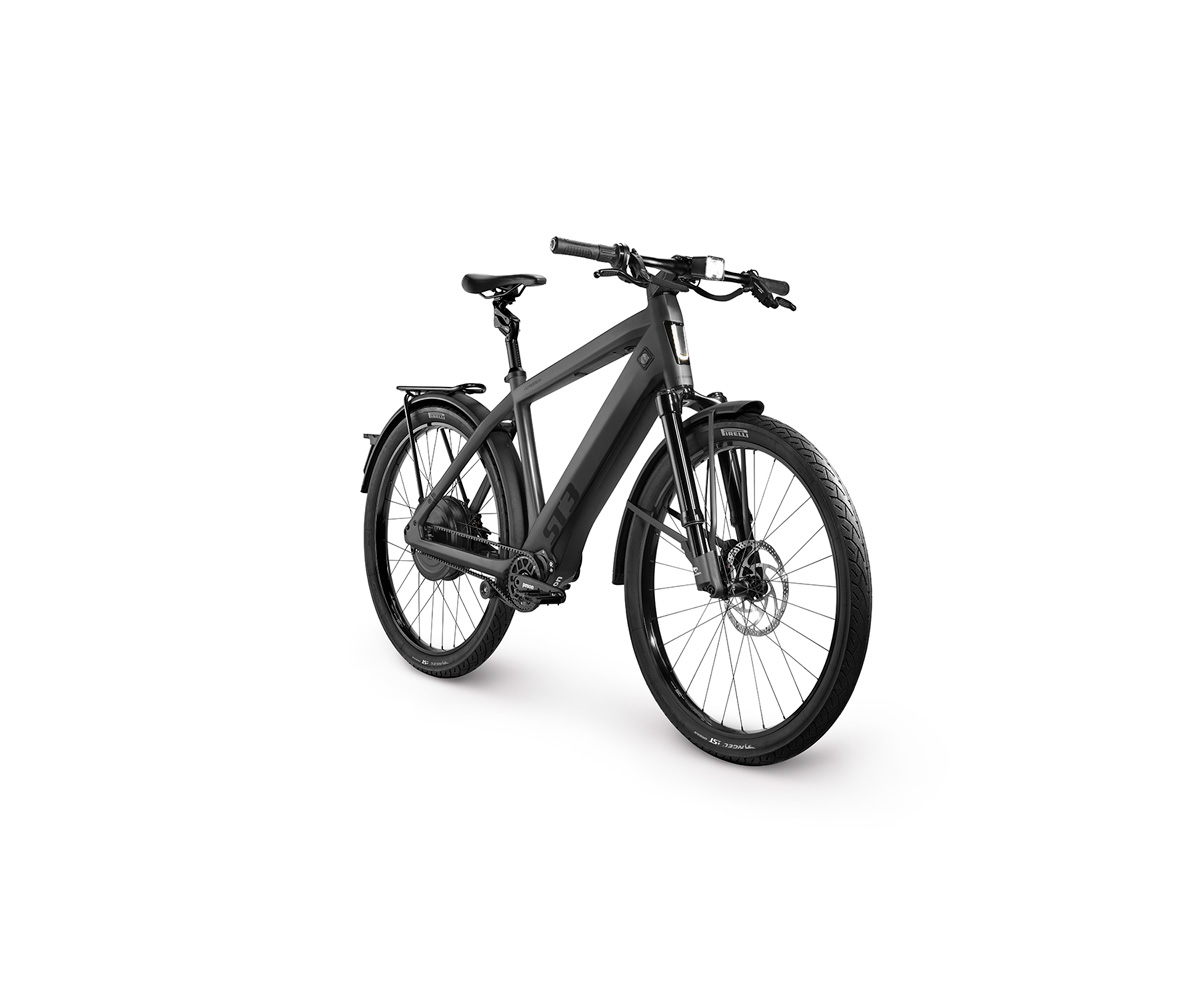

Large-volume 27.5″ tires, perfectly adapted to commuting on the road (optional: additional suspension)
Connectivity via cellular network for GPS localization, Smartlock, individual motor settings, statistics and much more
Award winning, integrated design

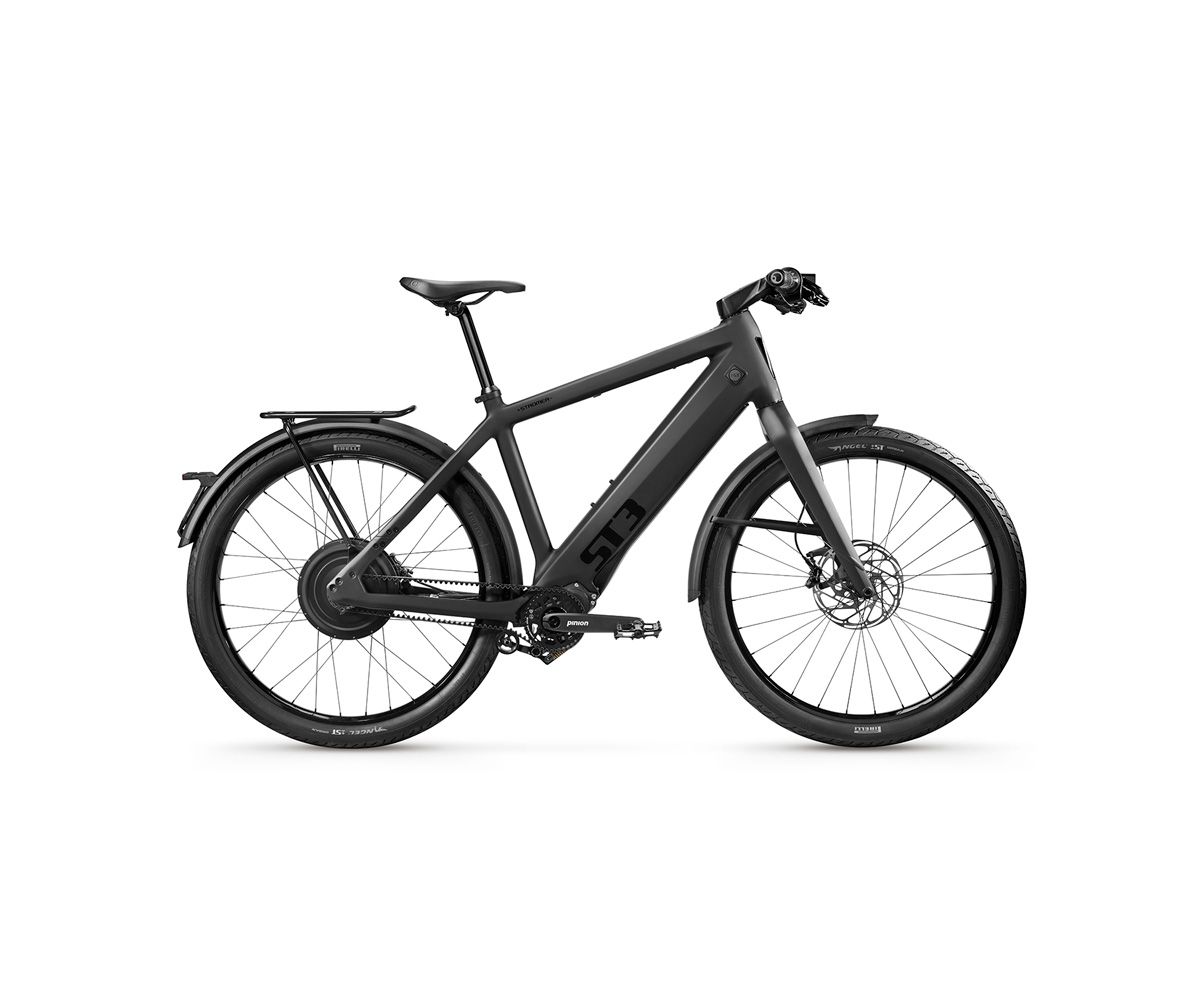

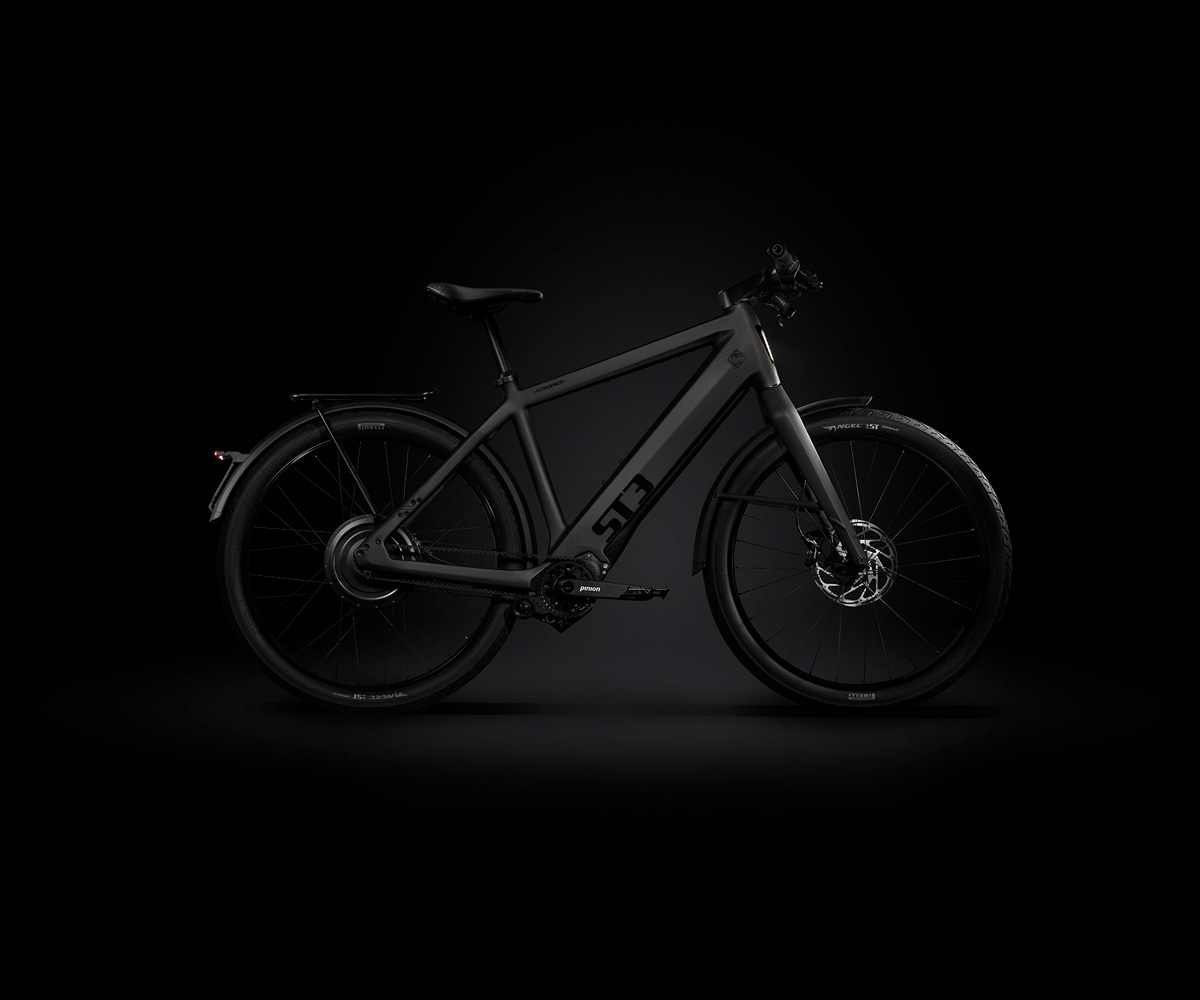

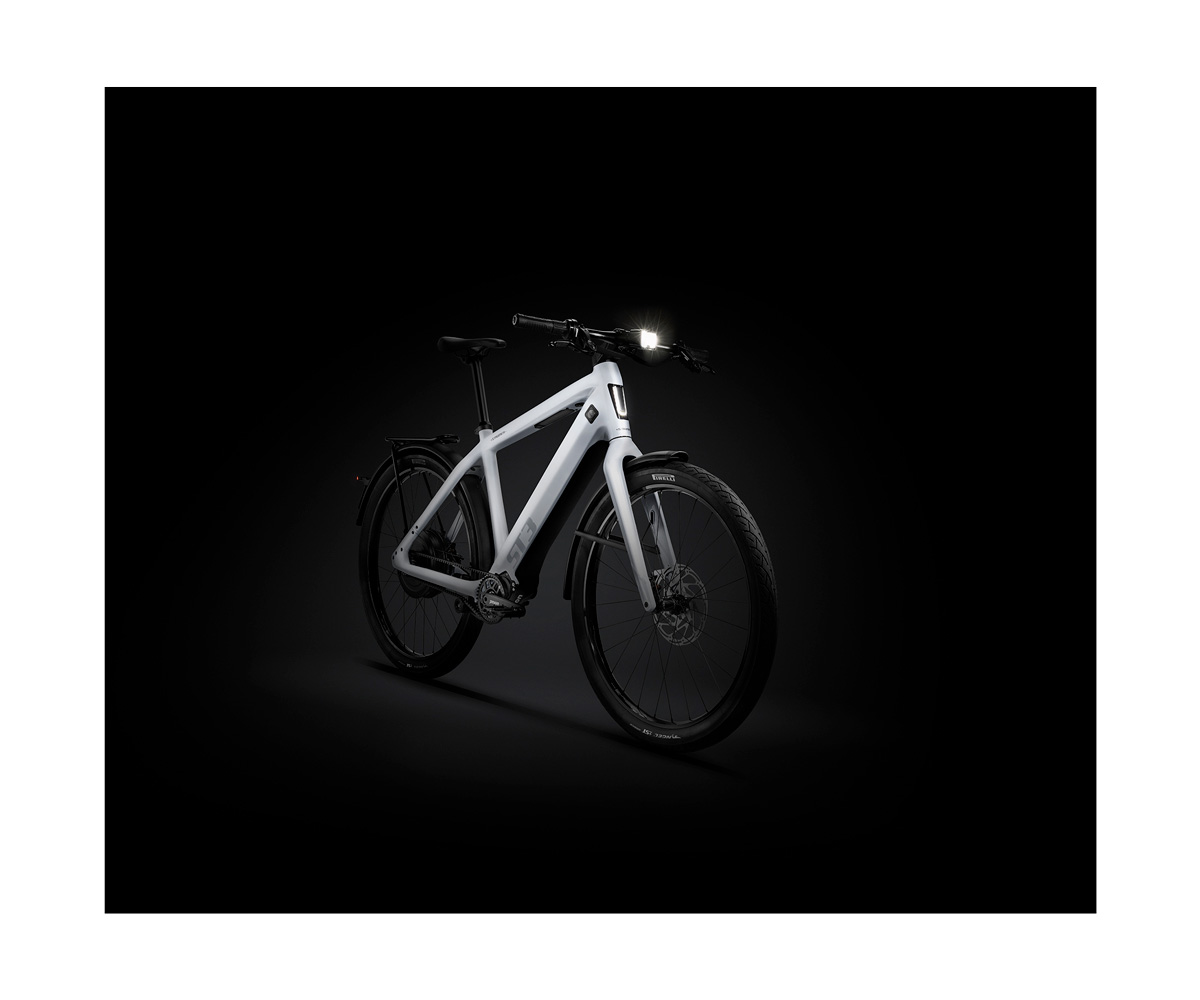

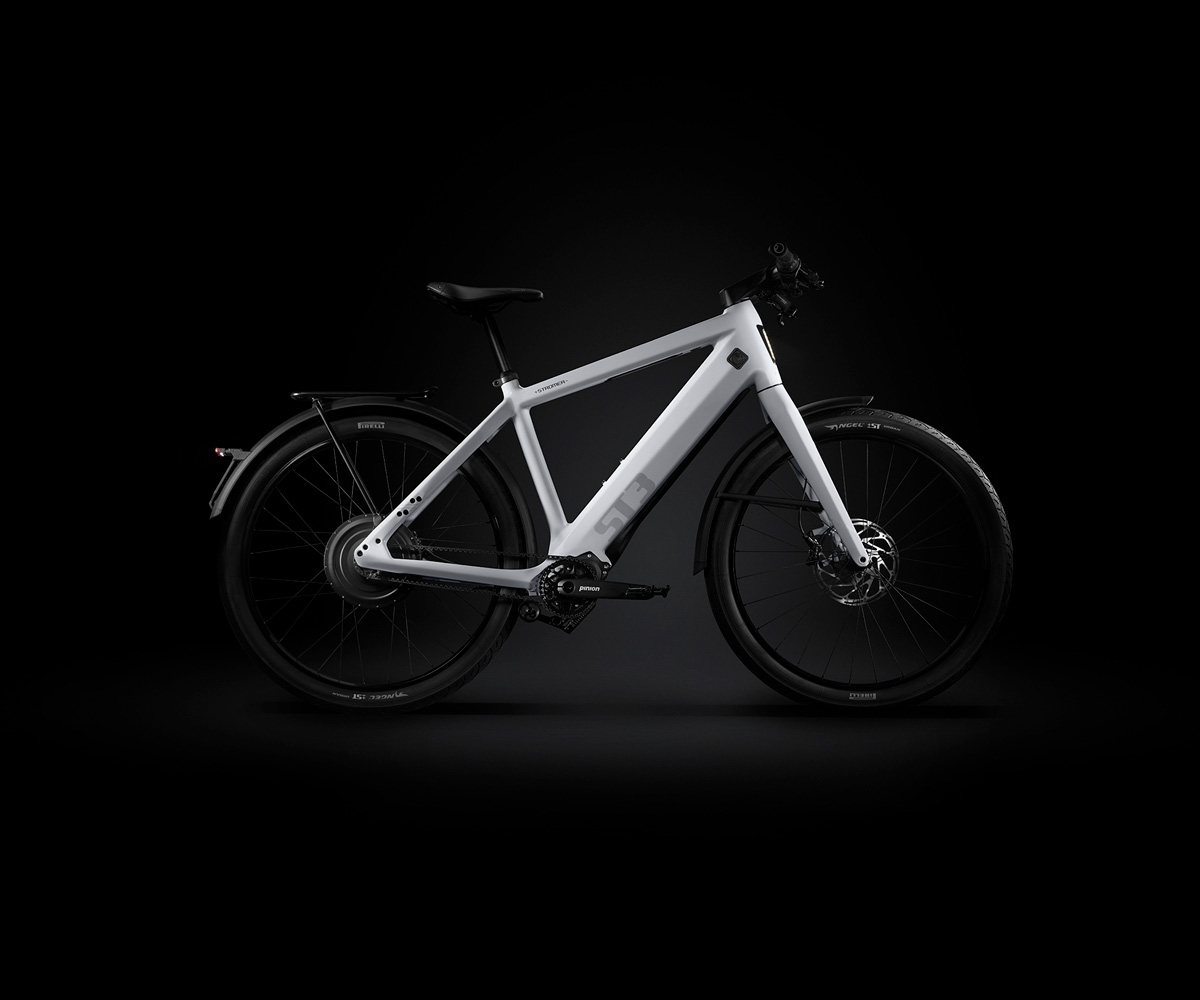

Colors: Deep Black, Cool White
Frame: sport frame in M | L | XL comfort frame in M (only in Cool White)
This model is also available with a chain drive.
Stromer ST3 Pinion | Technical Data
Motor : SYNO Drive II
Output in Watts : 720 W
Torque : 44 Nm
Category: Class 3, up to 28mph
Battery : BQ814 | 48V | 814 Wh
Battery Max Range : 90 miles
Charger : Stromer CR245 W
Max Charging Time : 4 h 45 minutes

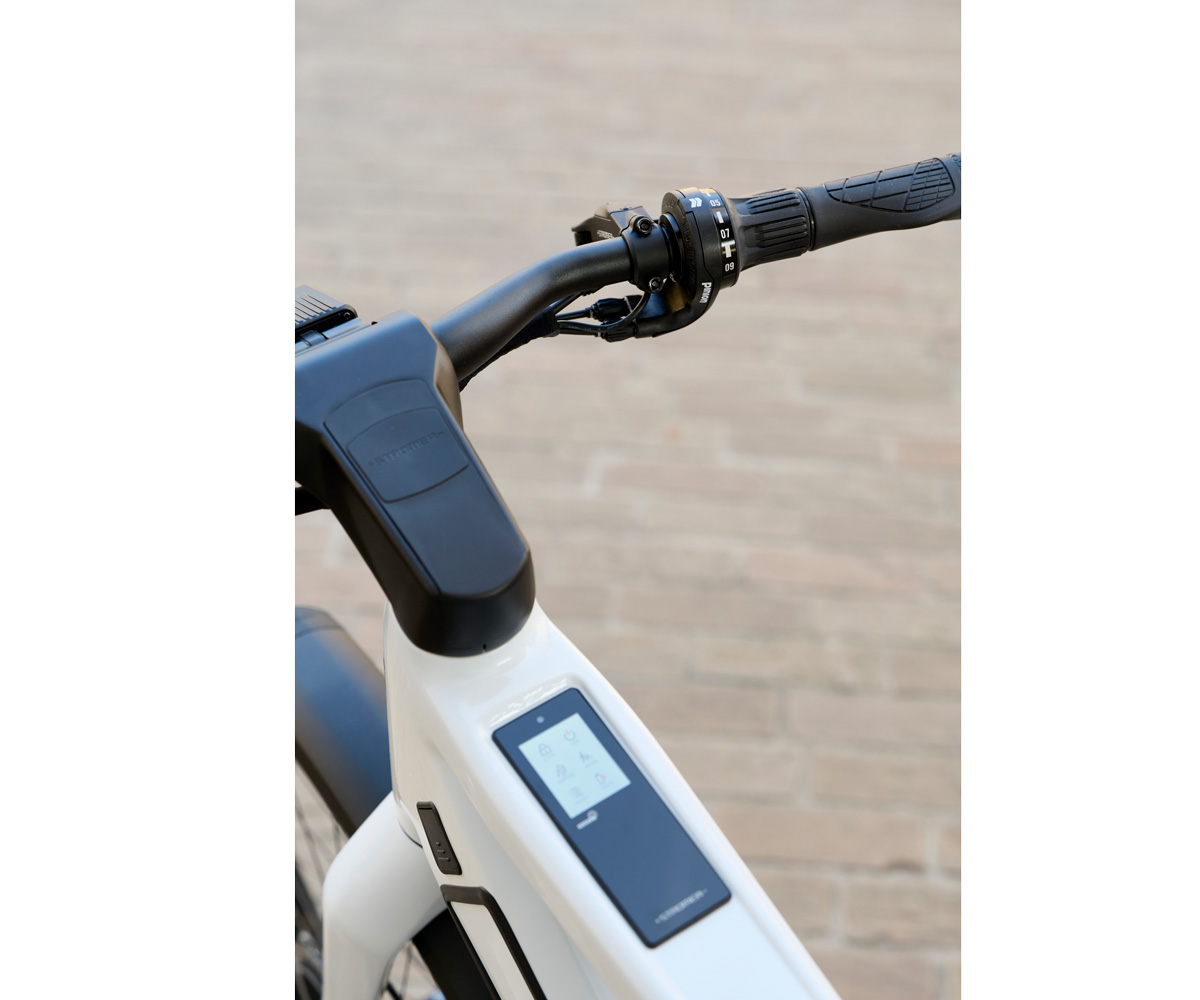

Display: OMNI C
Connectivity : Mobile phone network | Bluetooth
App : OMNI
GPS Localization
Keyless
Smartlock
Motor Setting
Display of Range
Over-the-air Updates
Statistics

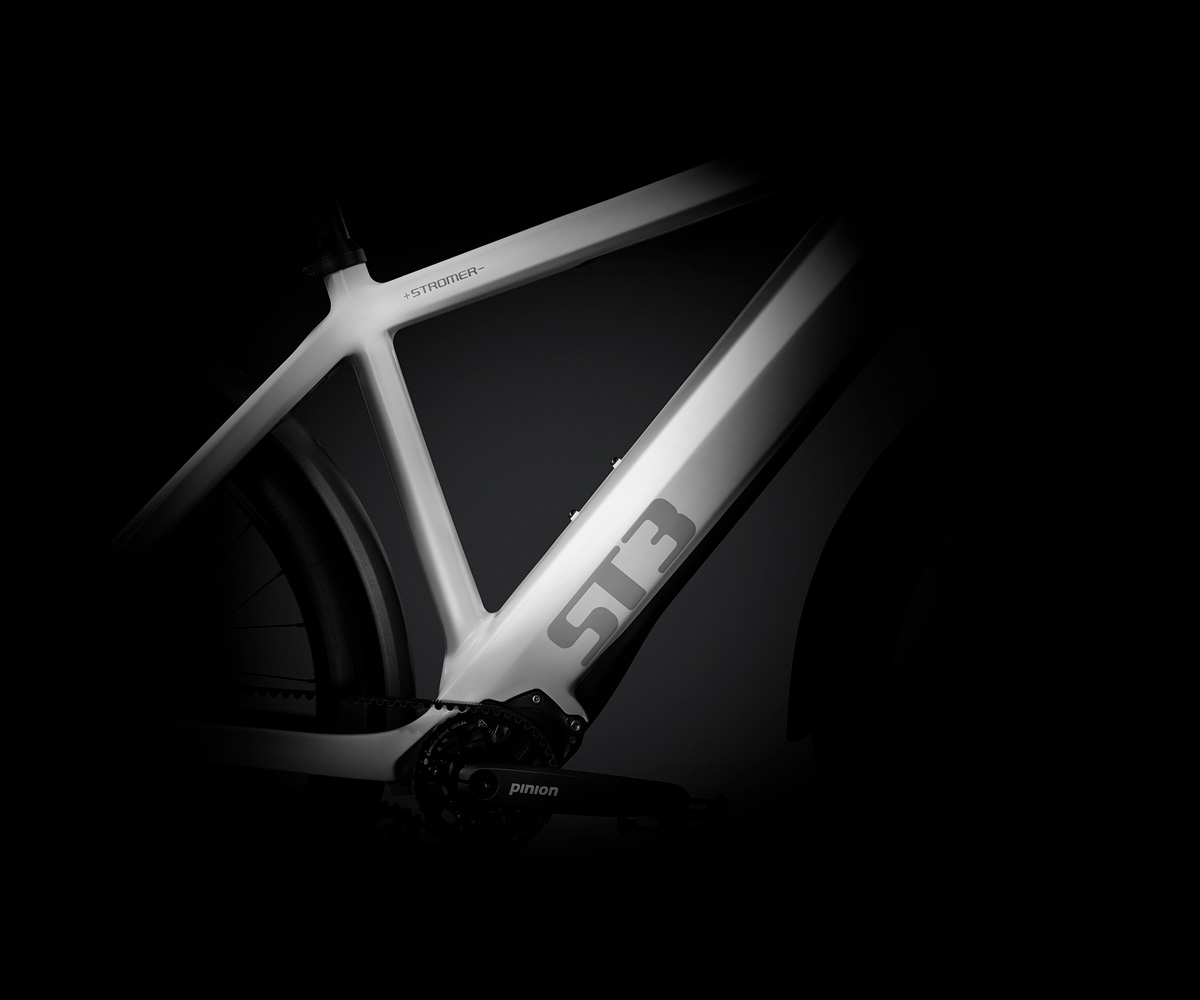

Frame | Fork : Aluminum
Frame Size Sport : M <178cm | L 175-188cm | XL > 185 cm

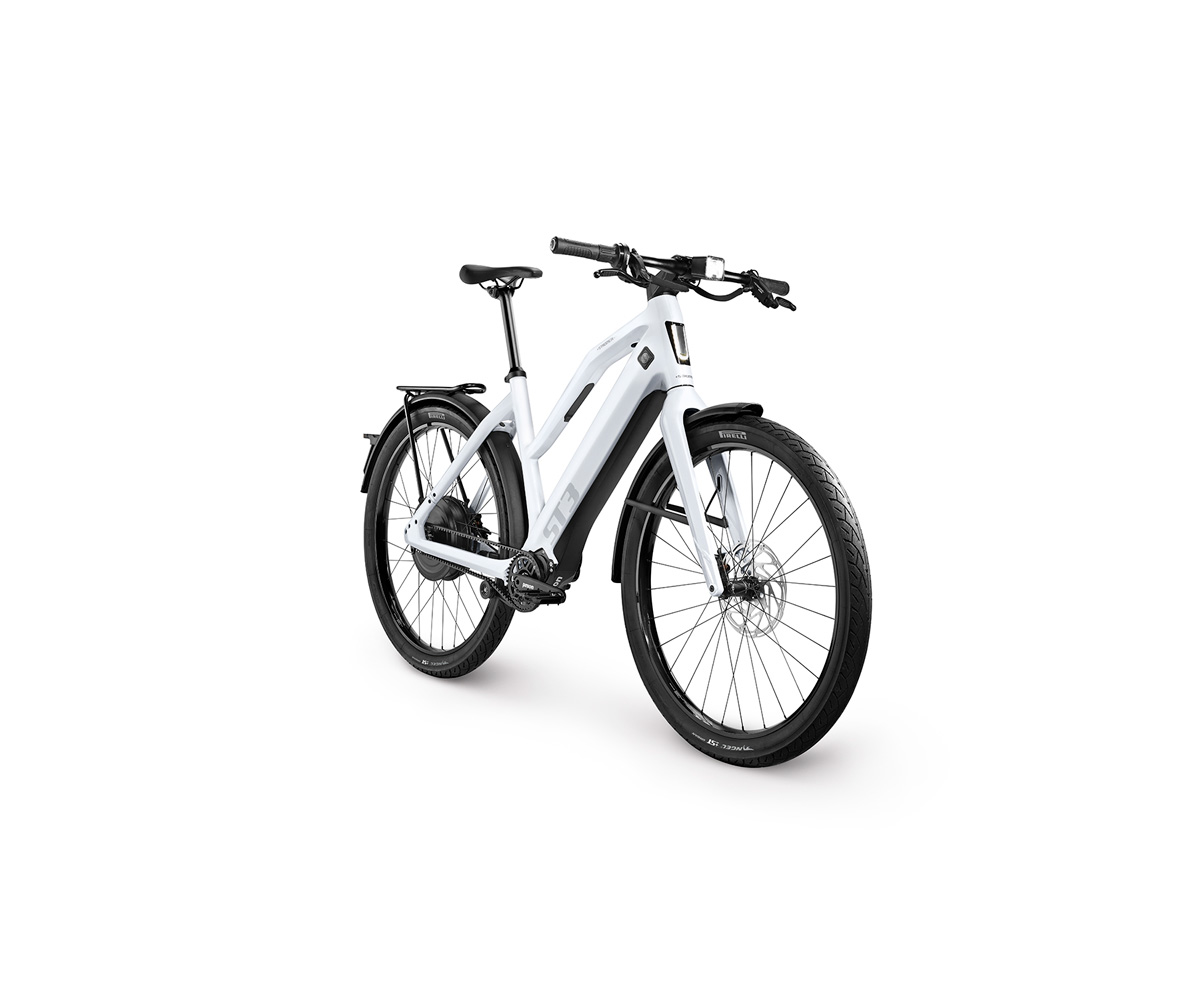

Comfort : M <178 cm (Only in Cool White)
Handlebar : Sweep Handlebar rise 0mm (Back Sweep 15 degrees)
Grips: Ergon GA30 Single Twist Shift black
Rim: Stromer 27.5 x 35 by Alexrims
Tires : Pirelli Angel ST Urban for Stromer
Brakes: Stromer HD942 by TRP
ABS at front : Factory Option
No. of Pistons at front | rear : 4|2
Brake disk at front | rear : 203mm | 203mm

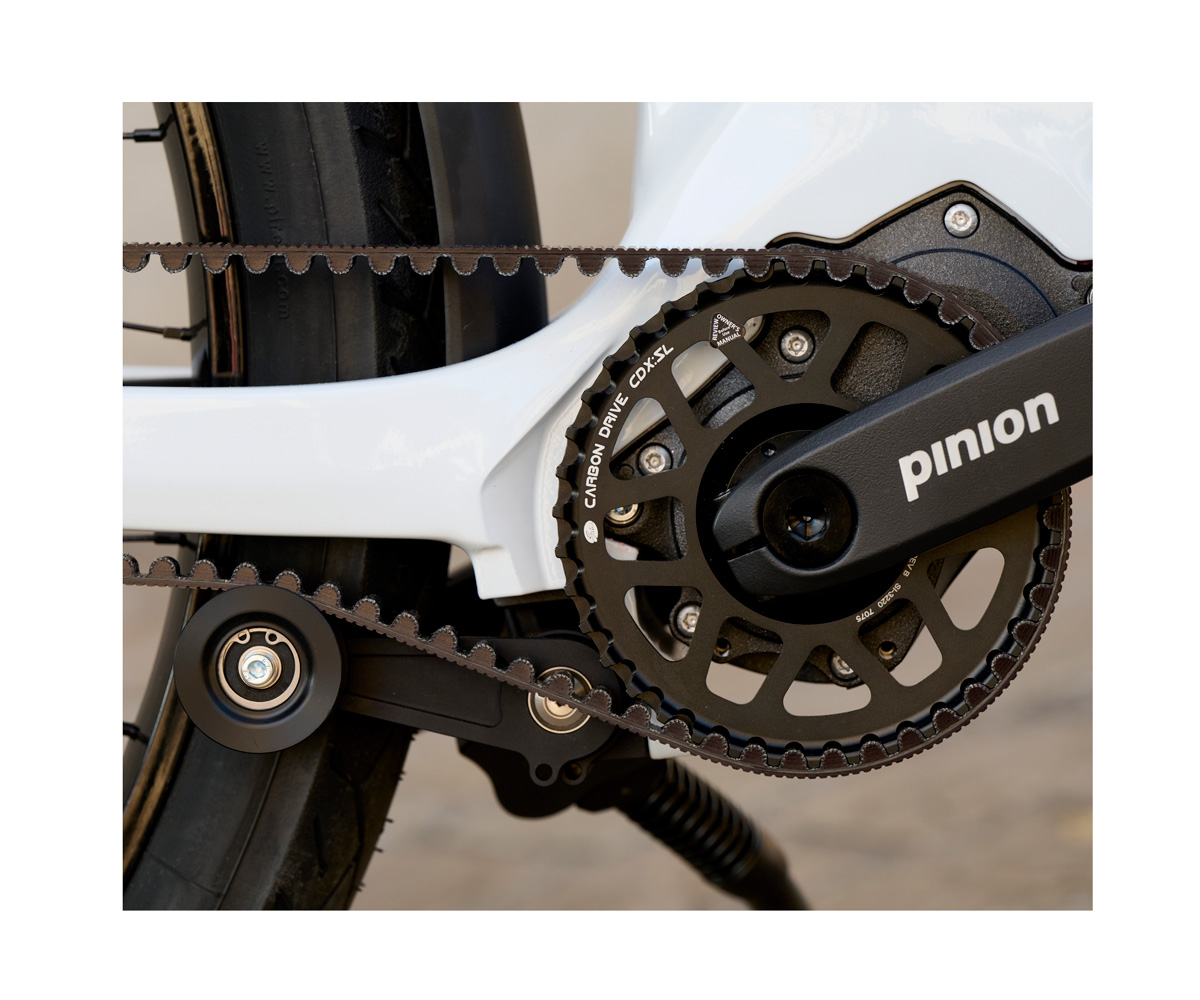

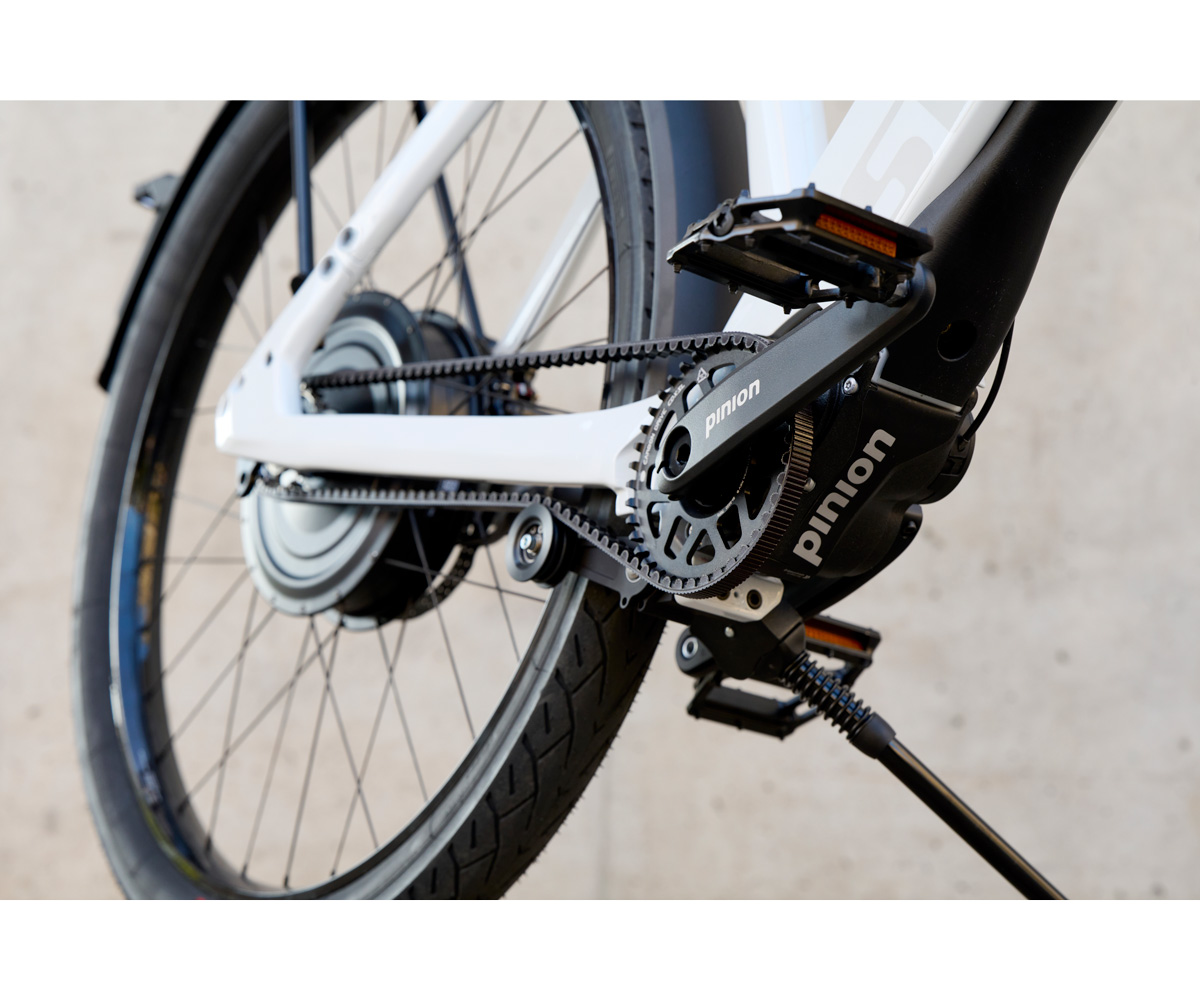

Shifting System : Pinion C1.9 SR 9 Speed (568%)
Crankset- Pinion Forged – 175
Saddle – Selle Royal VIVO | Ergon SFC 30
Fenders
Carrier
Horn Stromer Daylight

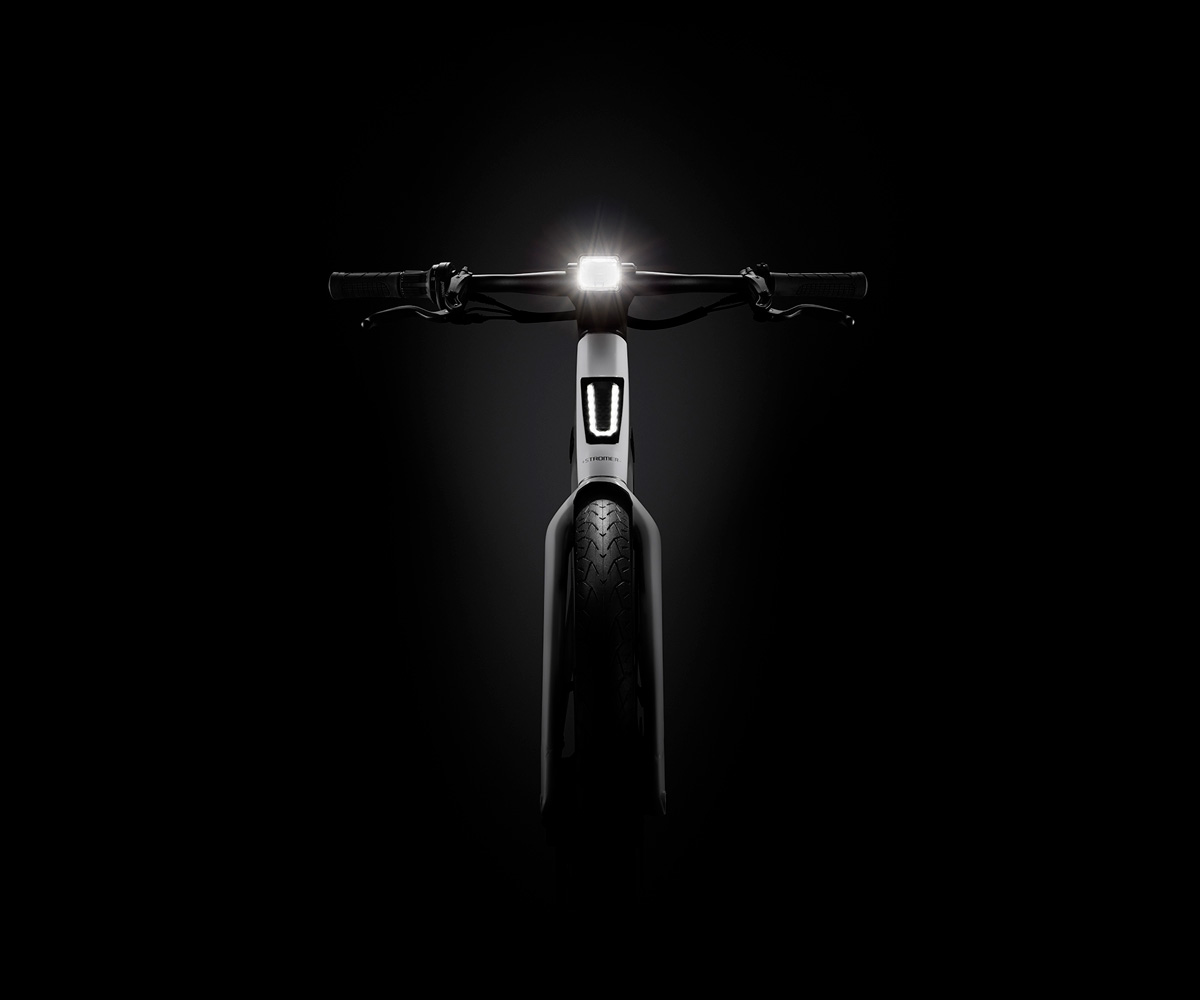

Headlights: Roxim Z4E Pro
Lumen low-beam | high-beam : 600 | 900

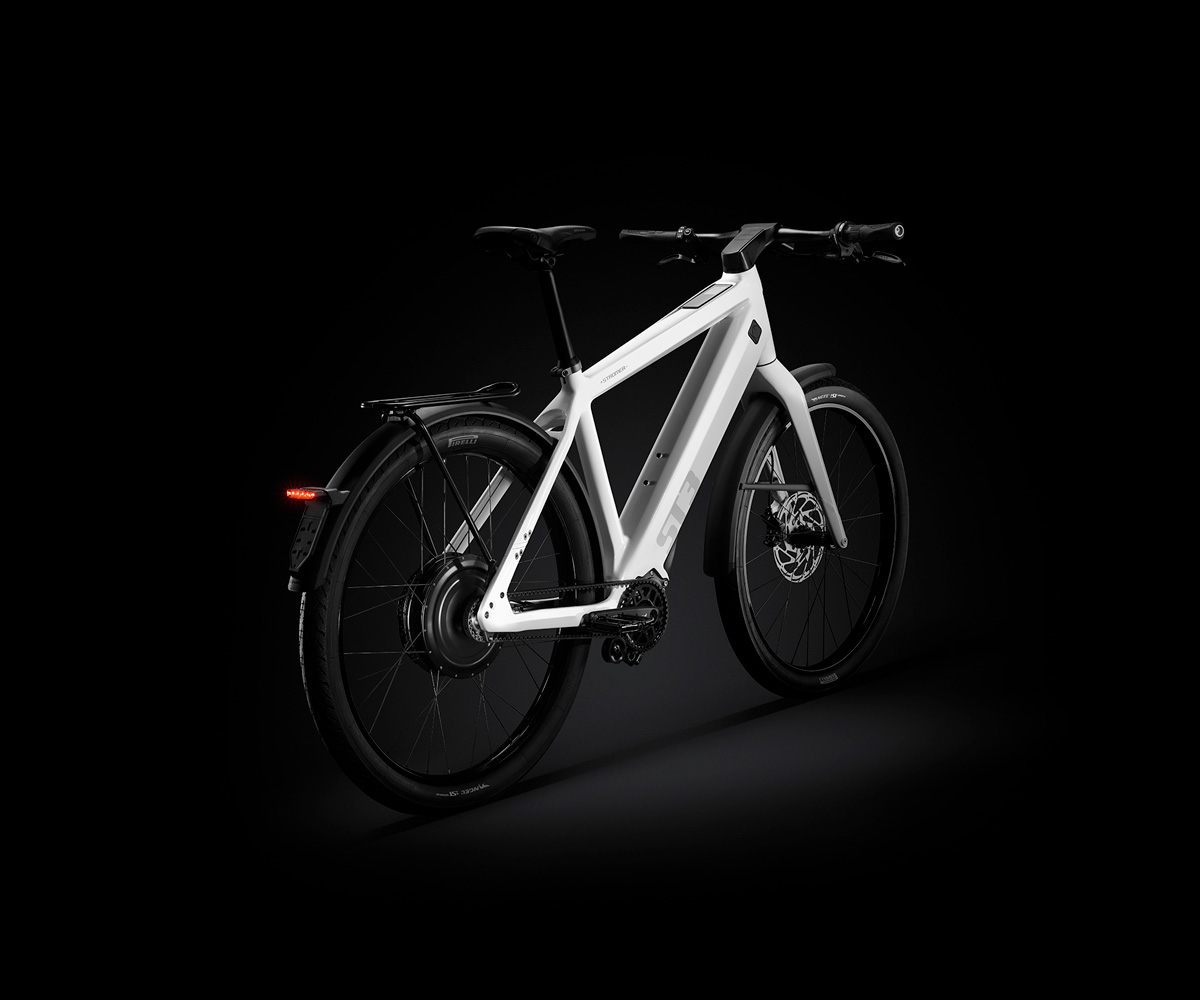

Rear light with brake light : Roxim R3E
