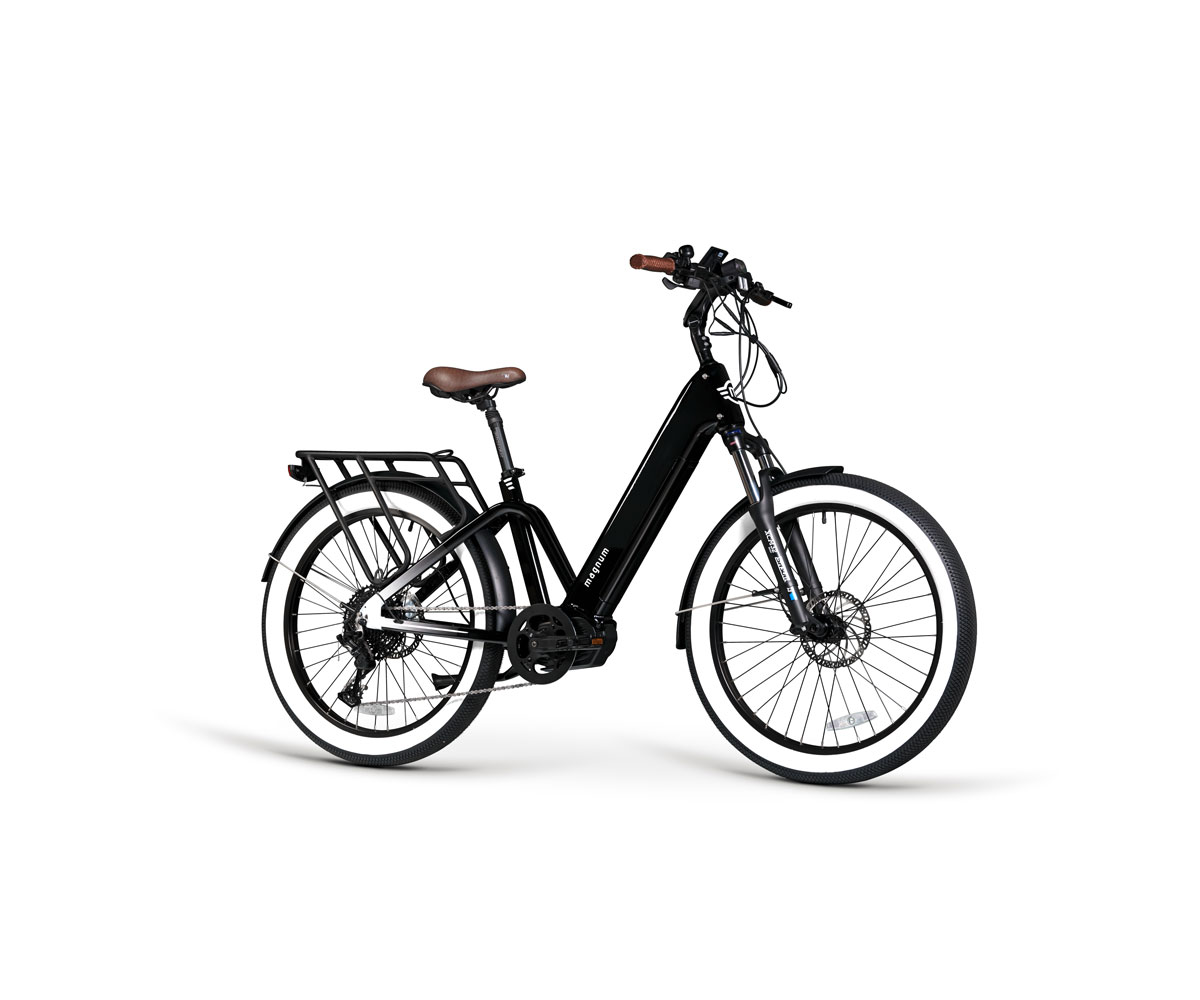

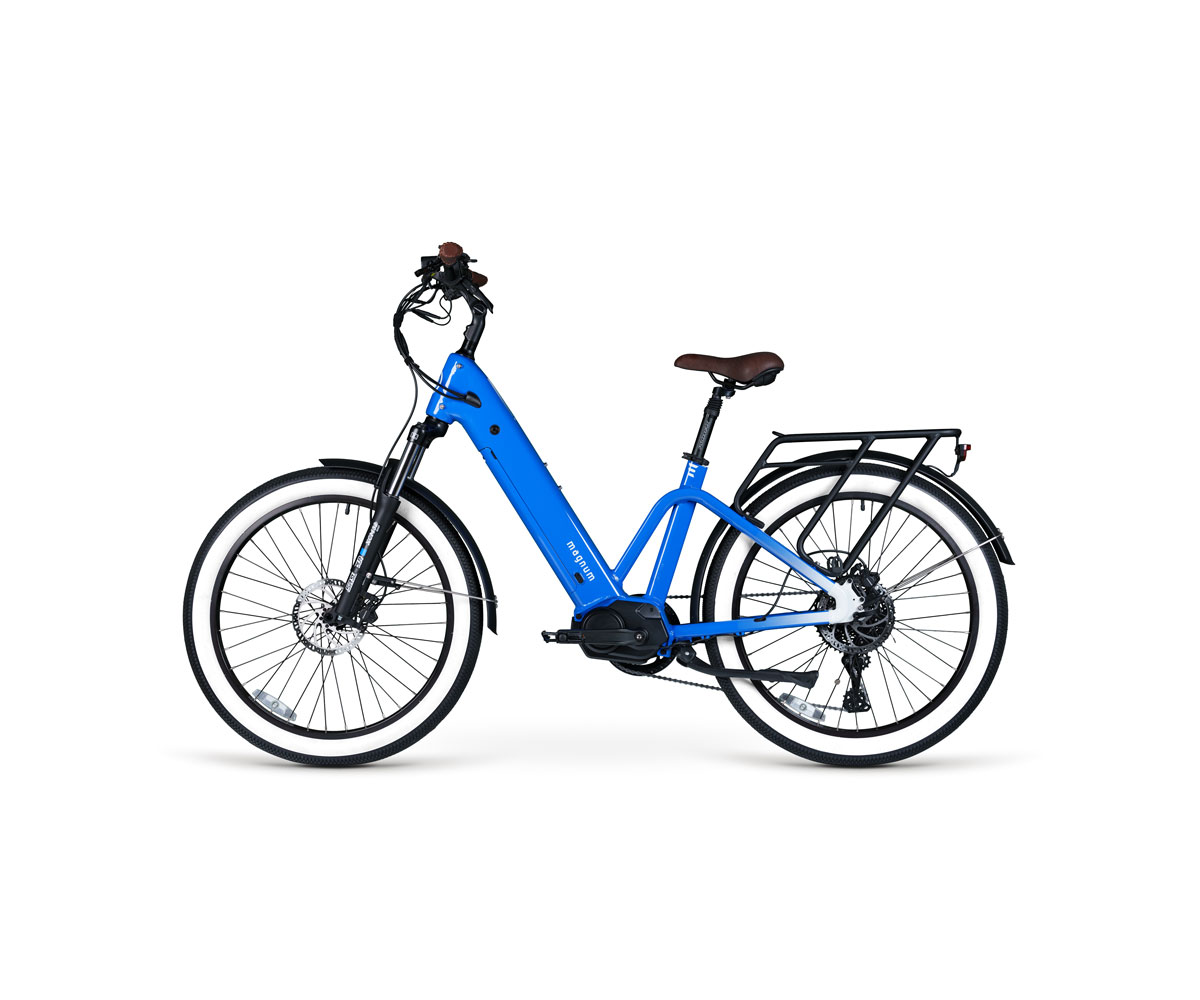

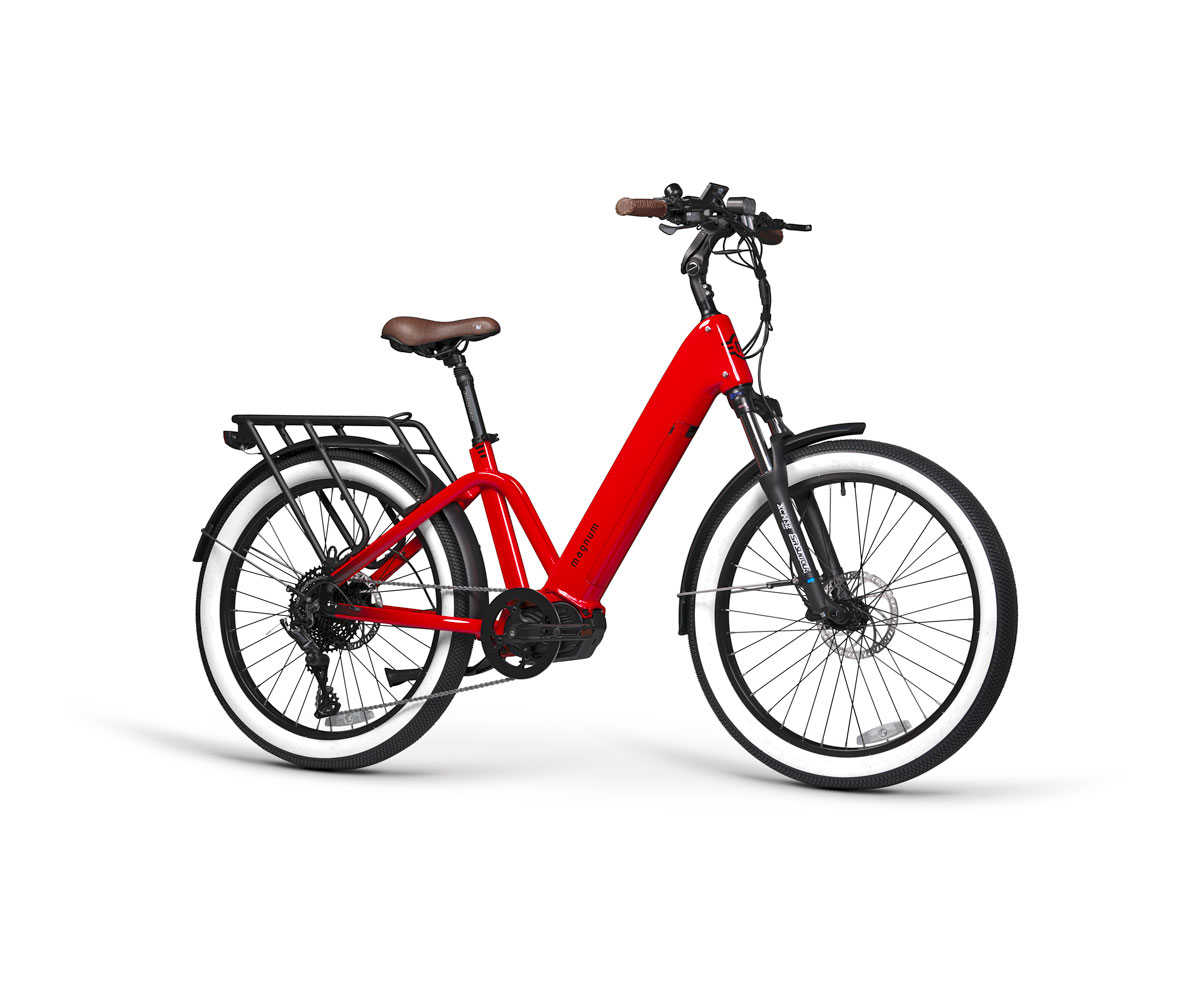

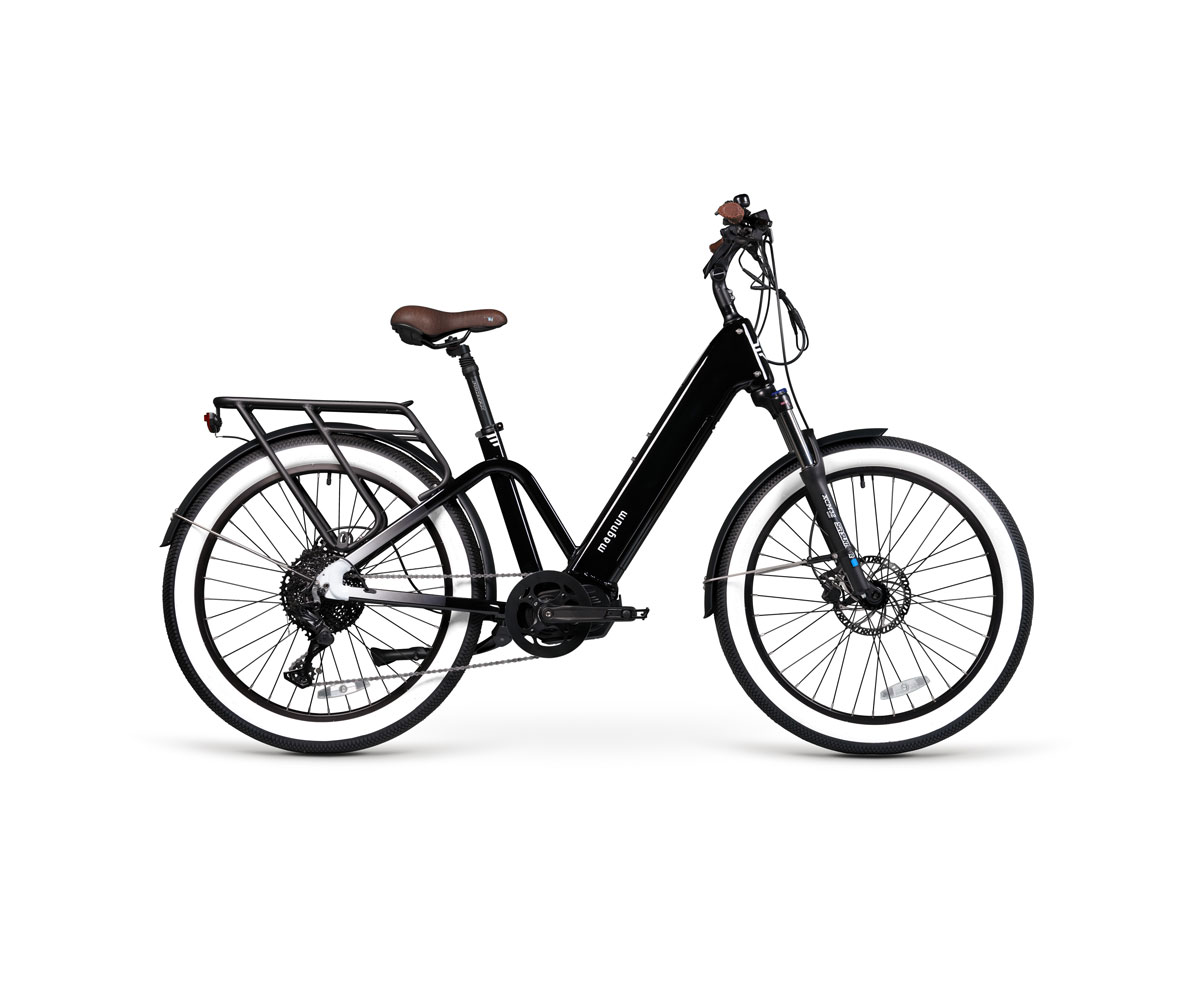

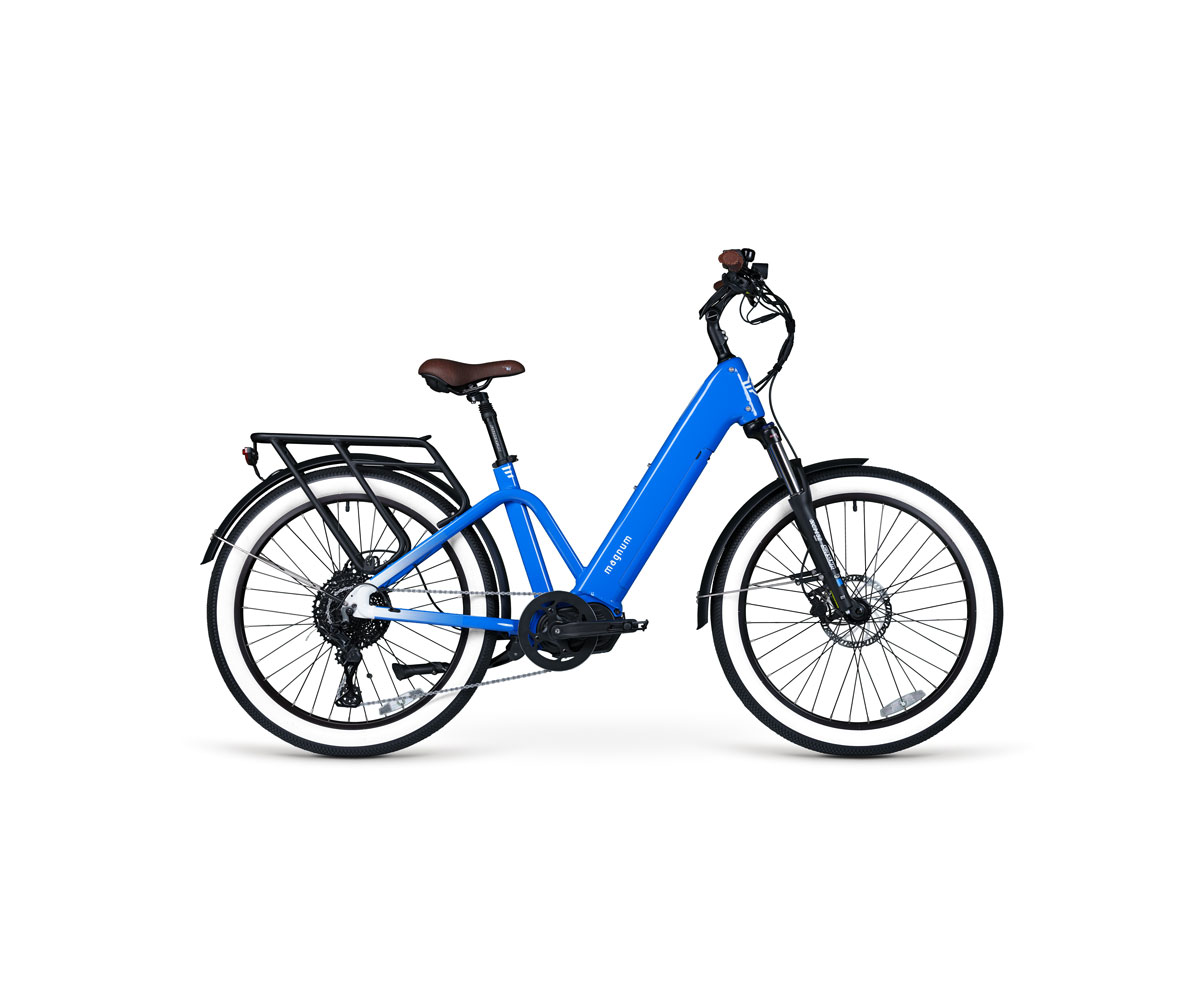

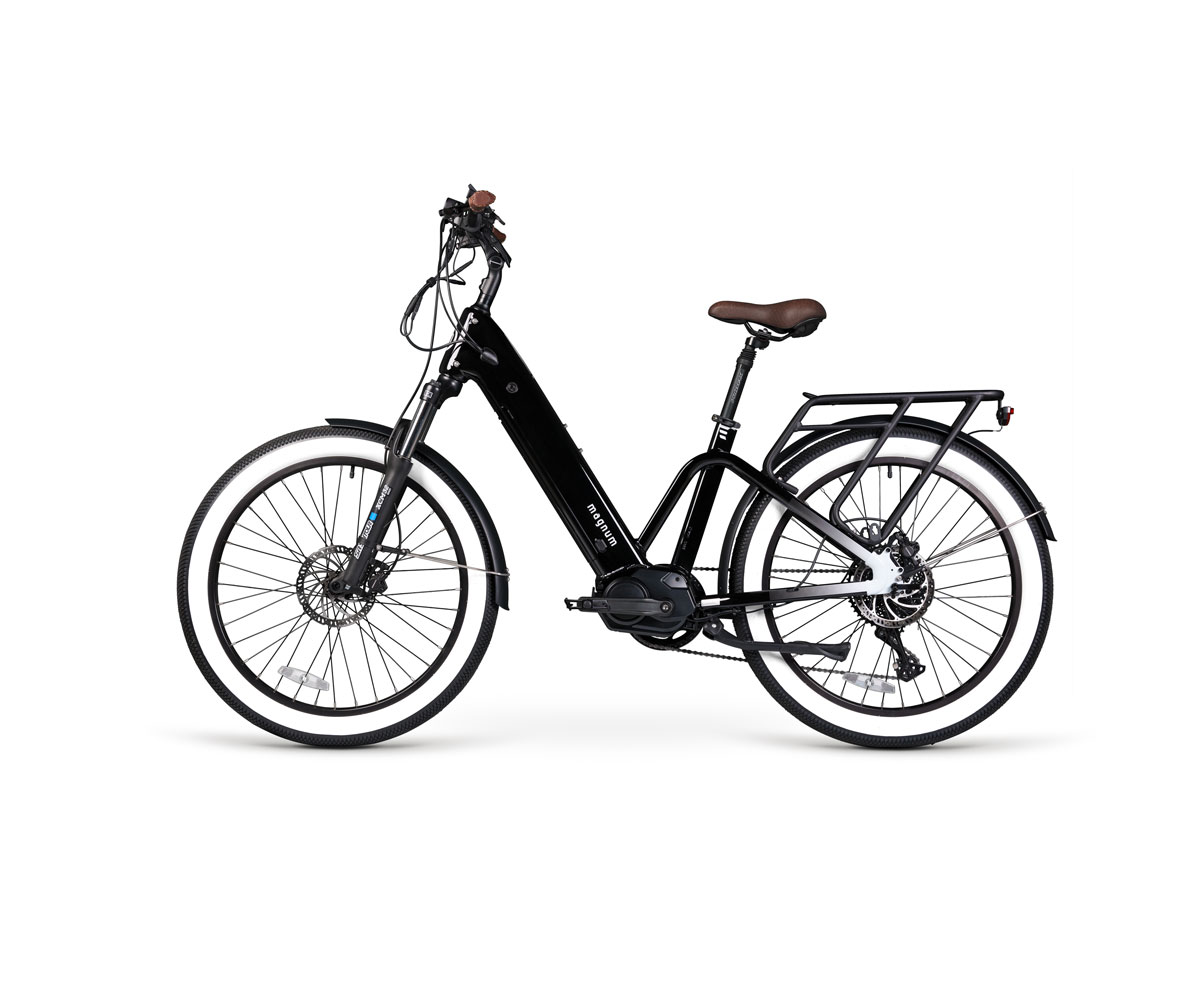

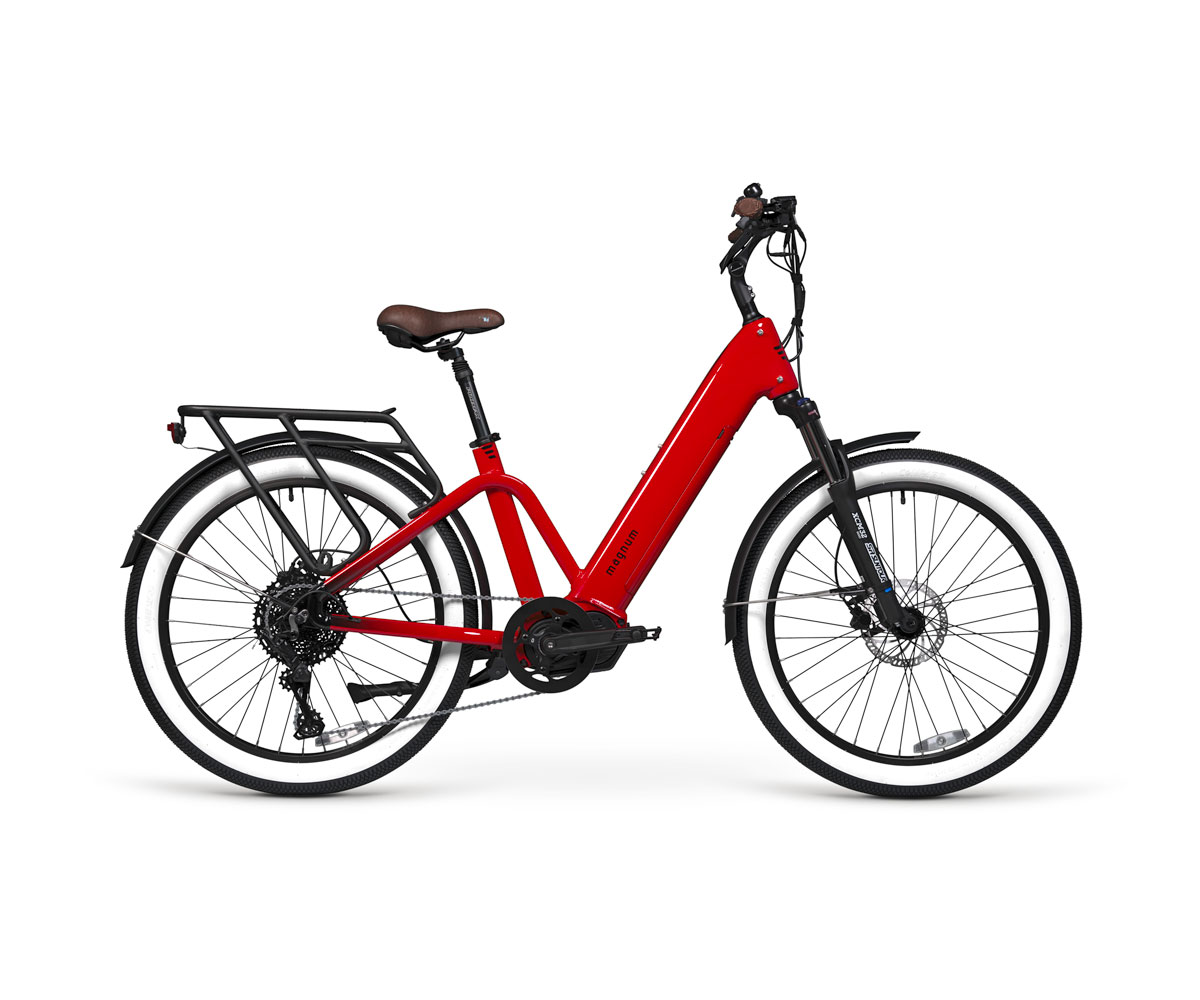

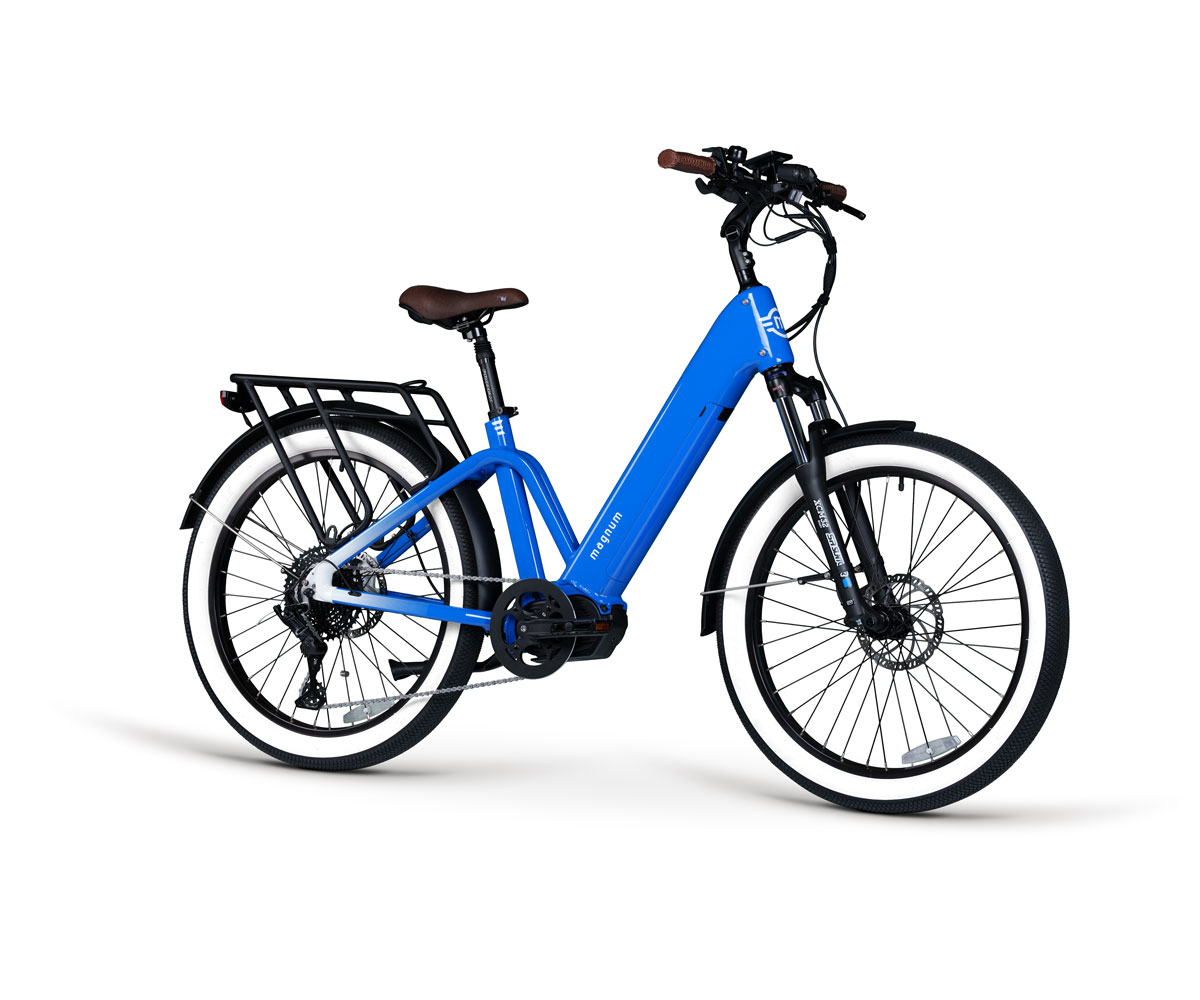

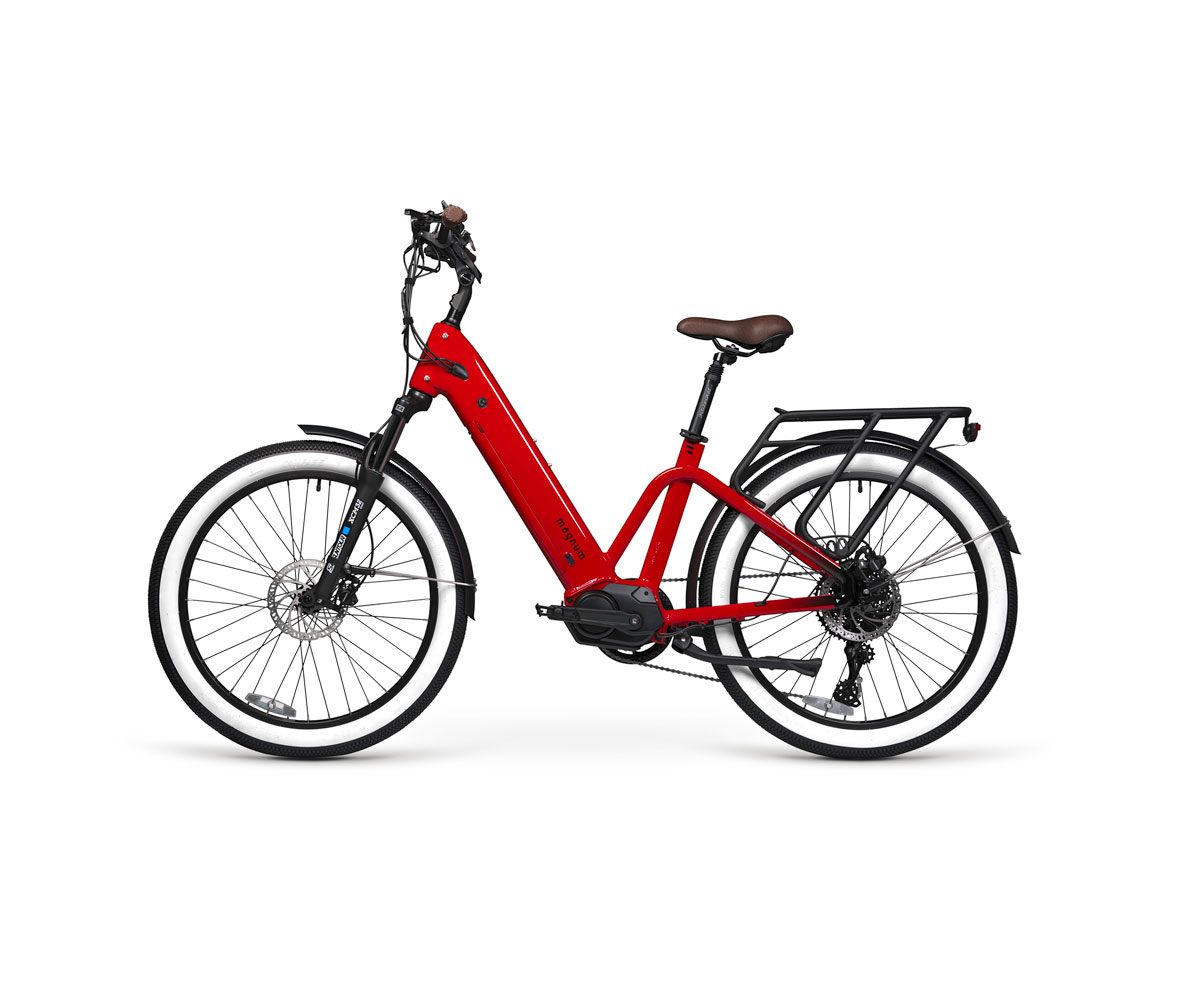

With our new Ananda mid-drive system, the Magnum Pilot Mid drive feels natural and balanced while cruising the boardwalk or on evening neighborhood rides with the family. An integrated but removable battery hides in the frame, and the thumb throttle means you only have to pedal on your terms. Available in a variety of eye-catching colors, the Magnum Pilot will get you there in comfort and look good doing it.
$2,999.00
The Magnum Pilot Mid Drive is unique because it is our only Mid Drive E-Bike with a throttle. (Except the Magnum Vertex Mid Drive which is very similar to the Pilot.)
THE BATTERY – The Magnum Pilot Mid Drive has an integrated and color-matched battery with a 15Ah capacity, and the ability to take a rider up to 50 miles on a single charge. (7.5 Hour Charge Time)

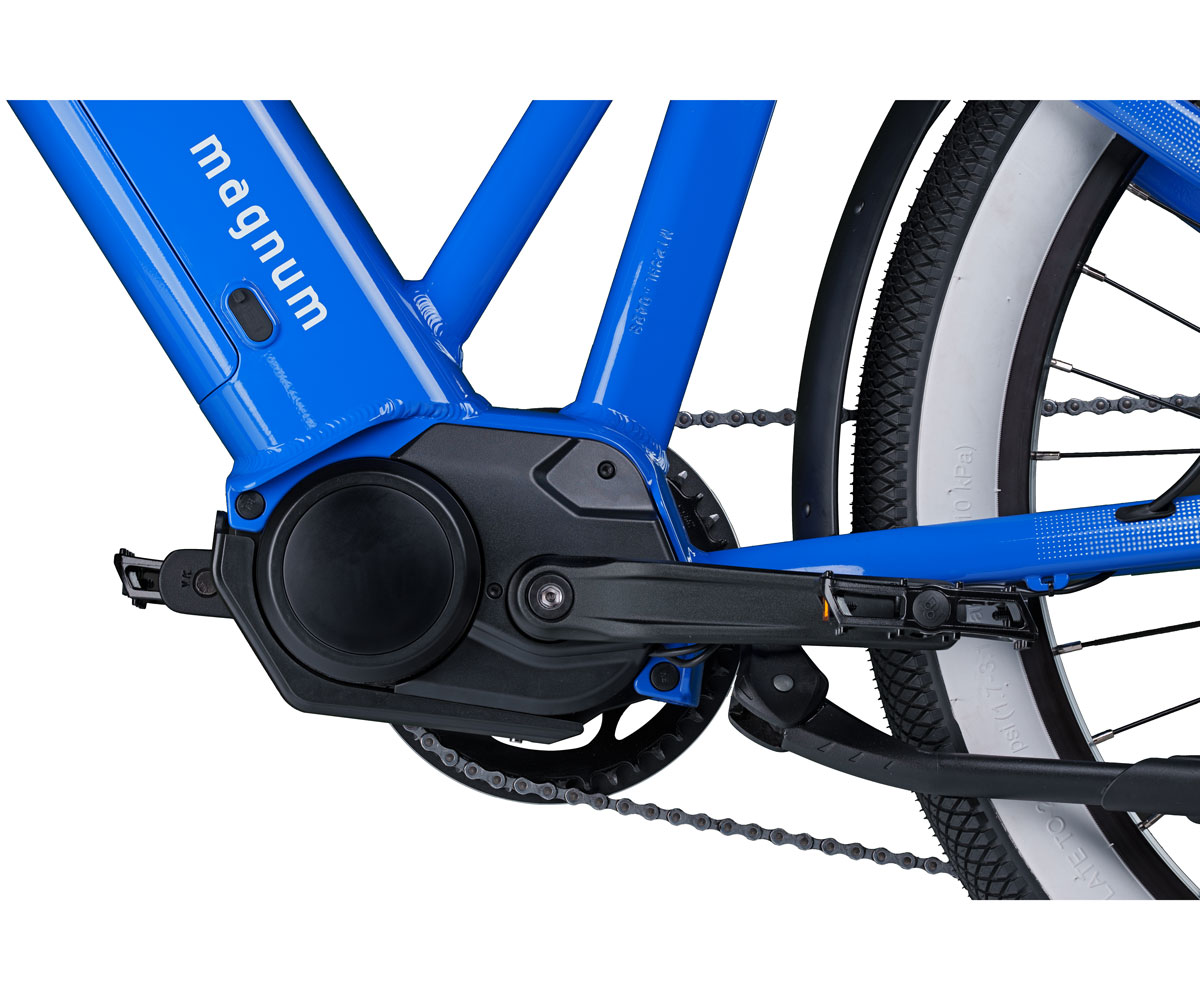

POWER MEETS BALANCE – Throttle Controlled Mid-Drive Motor. – Equipped with a powerful 500W mid-drive motor, this e-bike has natural power delivery, increased water resistance, and unique throttle control. It also features a derailleur clutch for rough terrain and a quick-detach rear wheel for easy maintenance.
Category- Touring
Class- Can be configured to a Class 1, 2, or 3 E-Bike.
Frame Type- Low-step
Seating- Relaxed
Perfect For- Paved / Light Trails / Recreation
Motor Brand – Ananda , Motor Type – Mid-Drive Motor
Motor Nominal Output – 500 Watts, Peak Output- 750 Watts
Battery Brand – Samsung Cells , Voltage- 48 Volts, Ah – 15Ah, Wh – 720Wh
Battery Chemistry – Li-NMC, Charge Time (from empty) – 7.5 Hours
Minimum Range – 25 Miles (40 Kilometers)
Maximum Range – 50 miles (80 Kilometers)

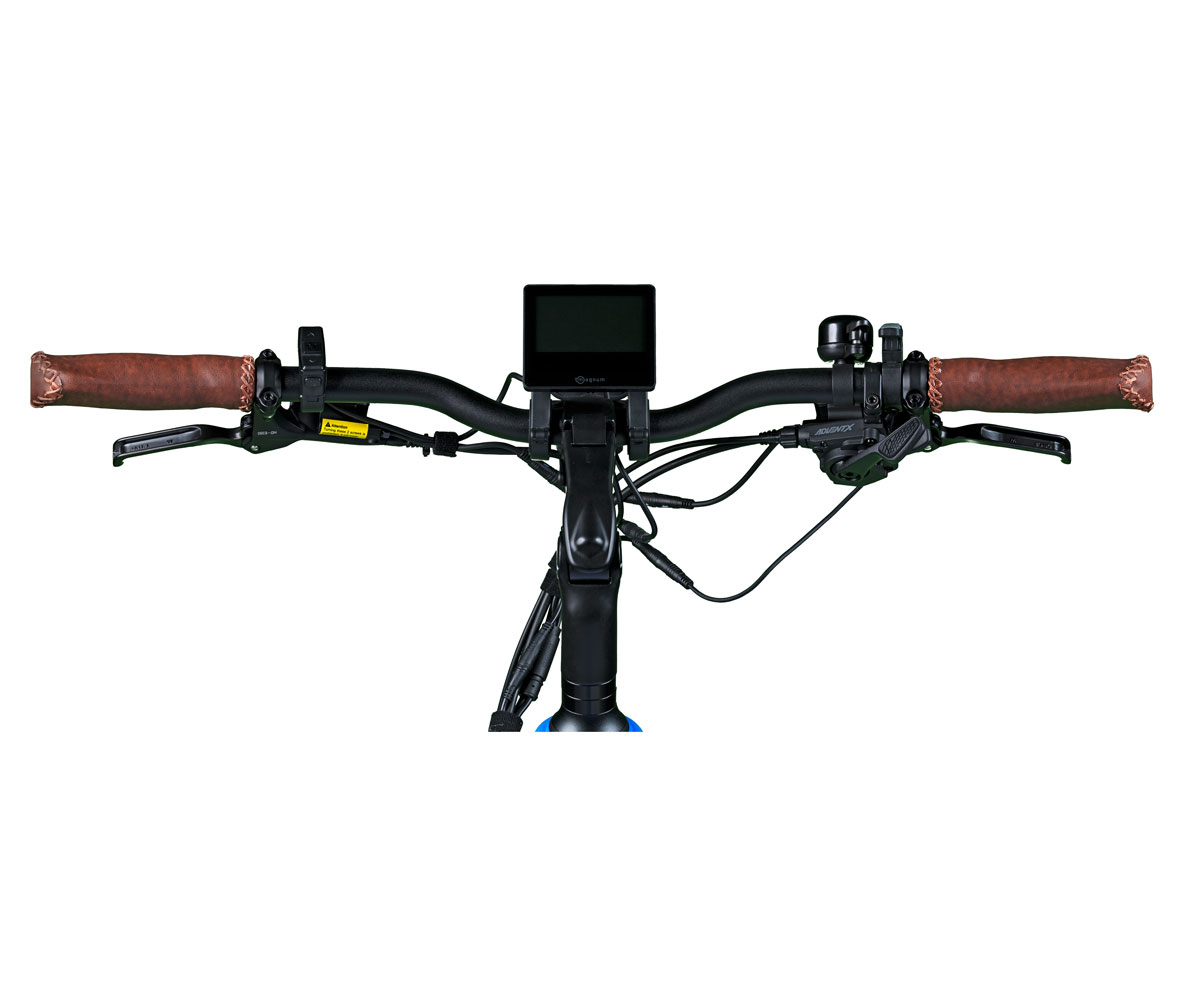

Display Type – Magnum Branded VeloFox, 8 x 7 cm. Screen, Backlit Monochrome LCD
Display Readouts – Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Drive Mode – Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
Top Speed – Up to 28 mph with Pedal Assist, 20 mph with Throttle

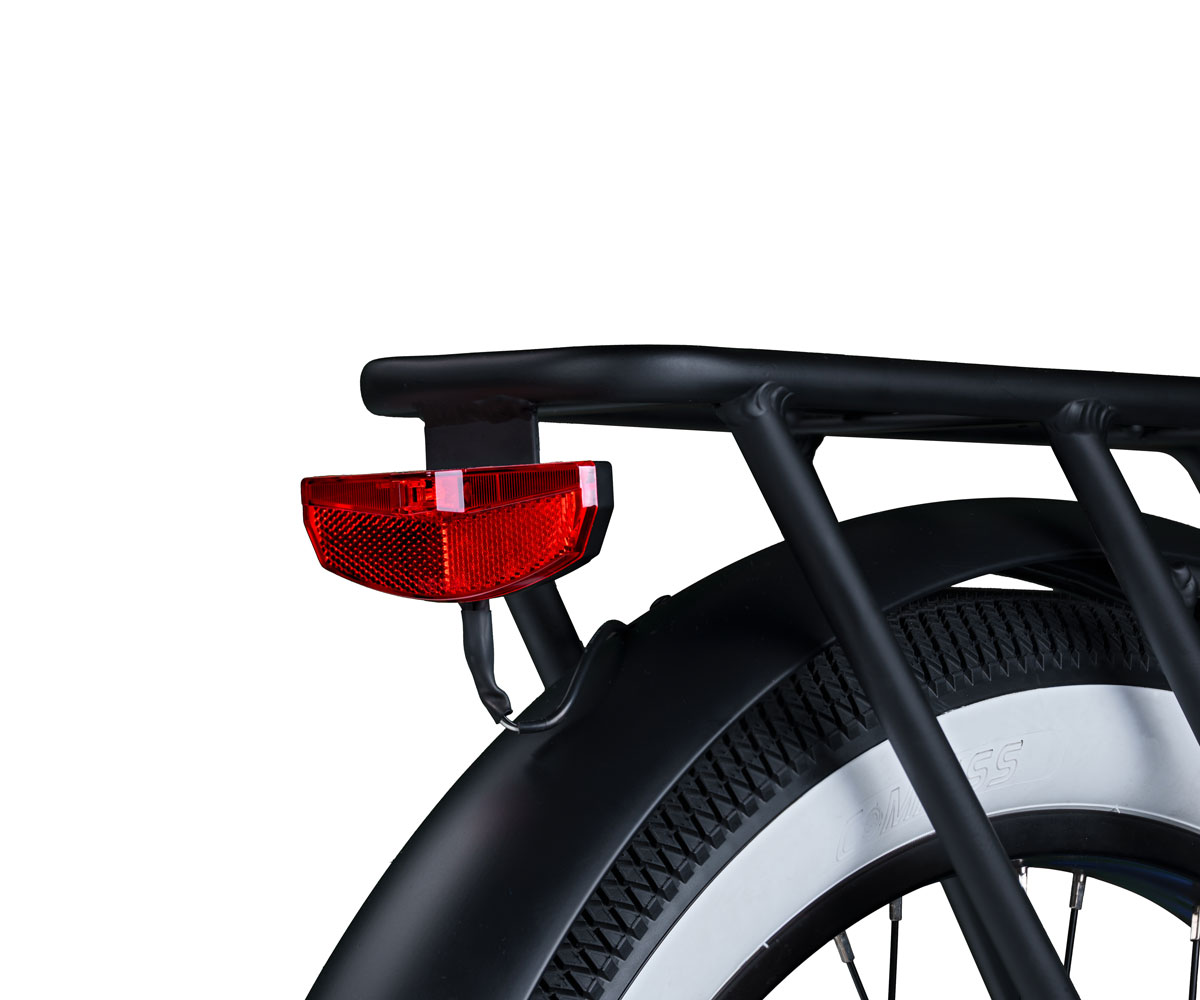

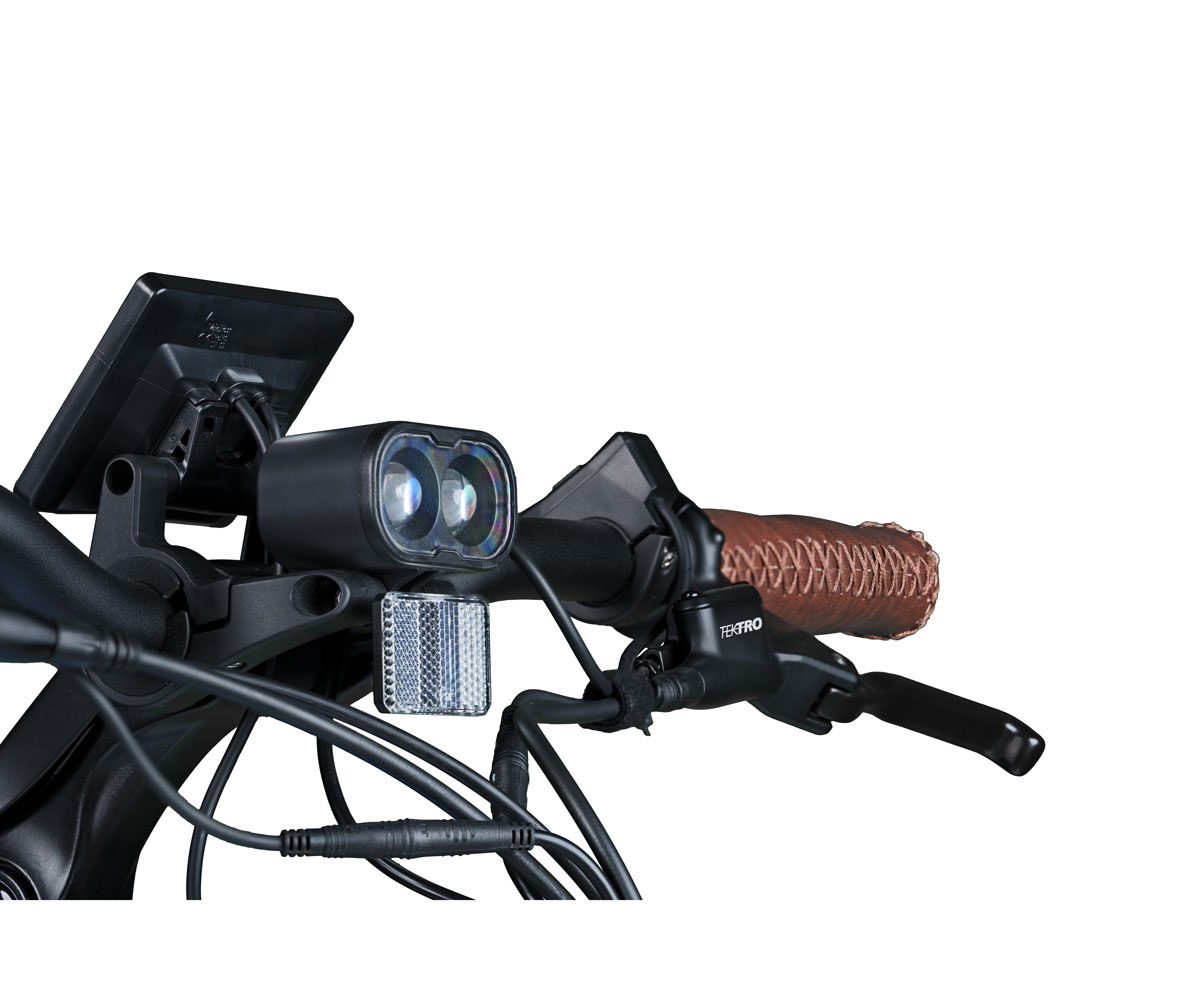

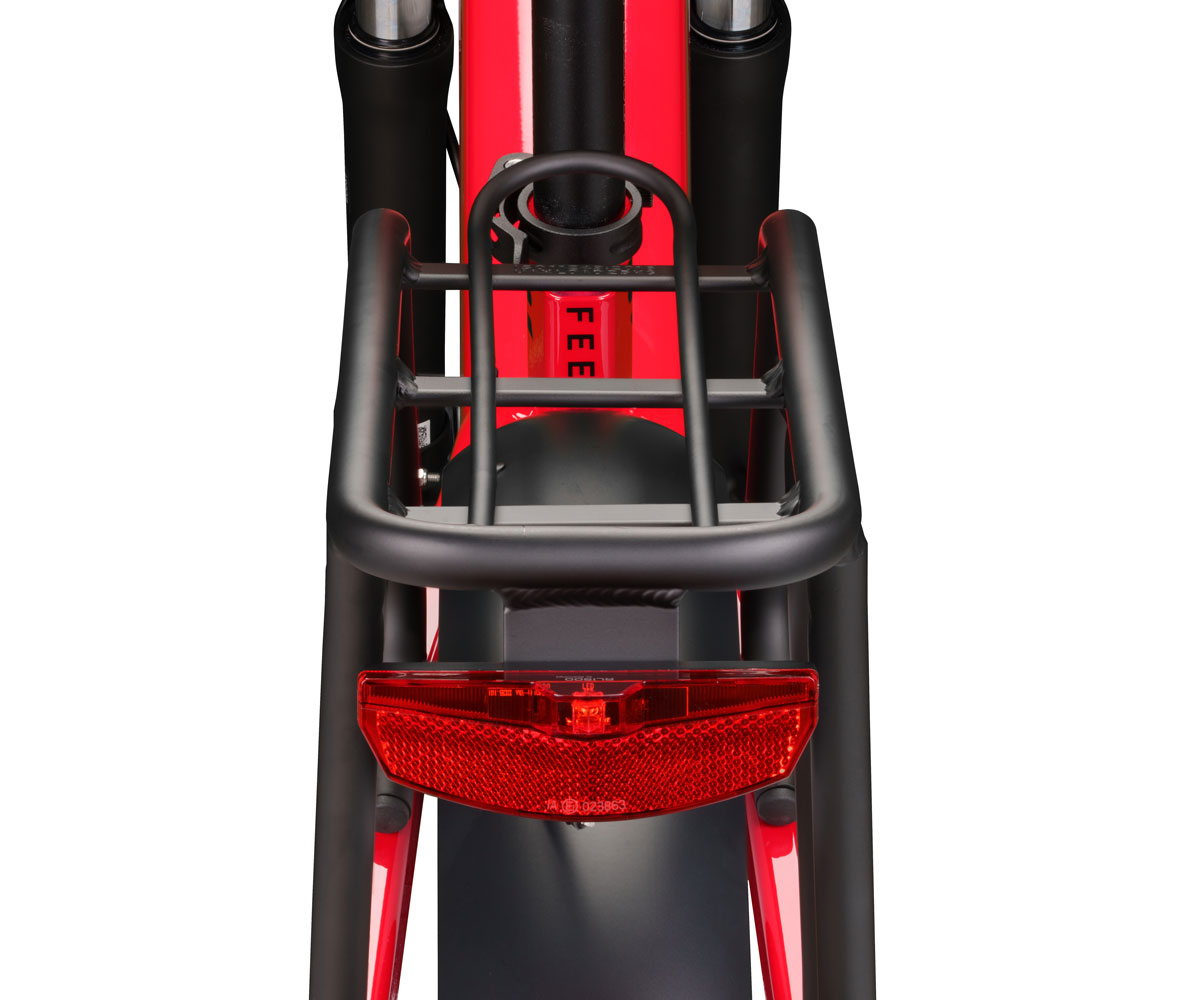

Lights – Integrated front and rear lights
Frame material – Aluminum Alloy
Fork Details – Suntour XCM32 Boost
Gearing details – Microshift Advent 10-Speed

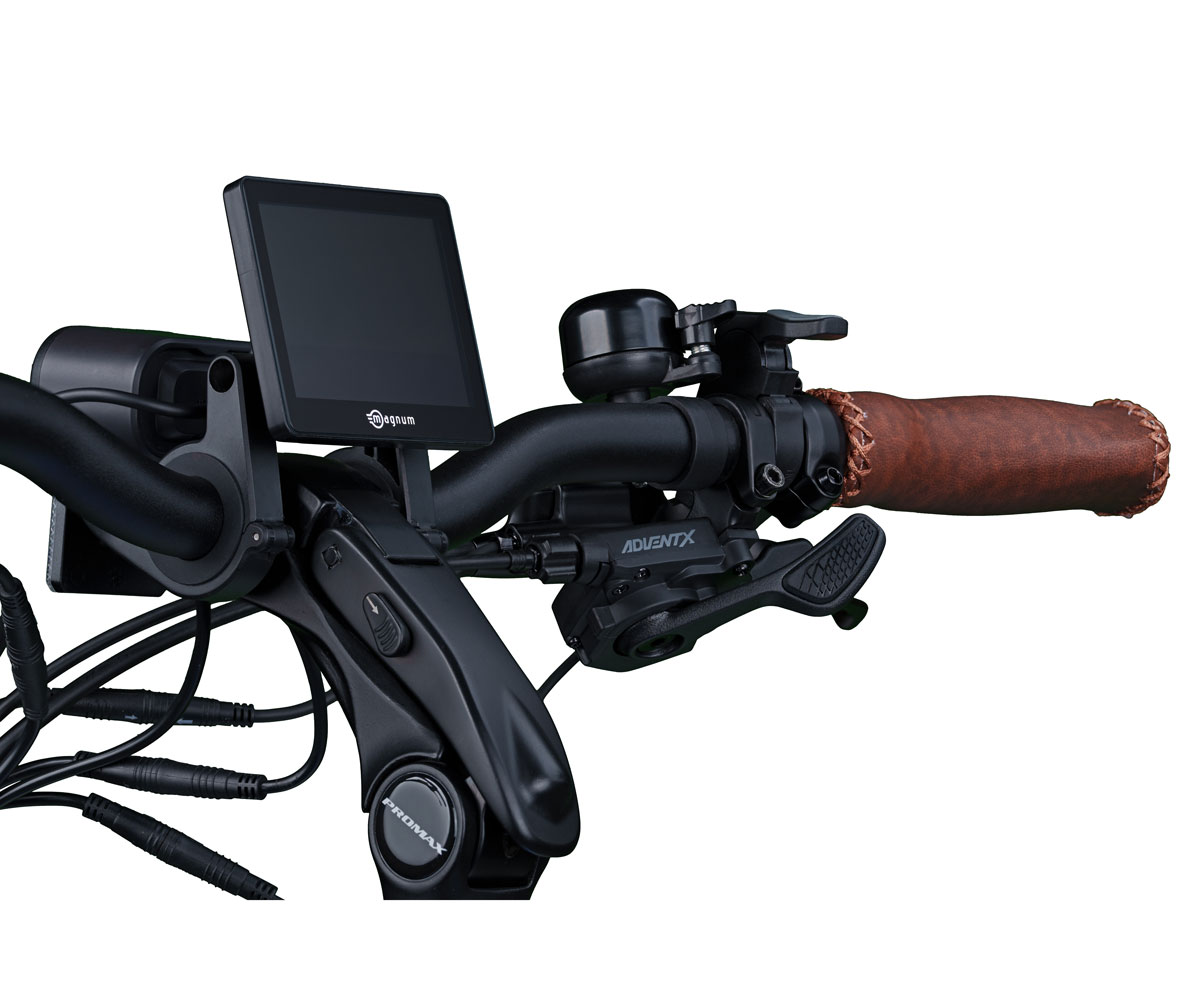

Shifter Details – Microshift Advent 10-Speed
Crank – Aluminum Alloy 170mm
Pedals – Wellgo

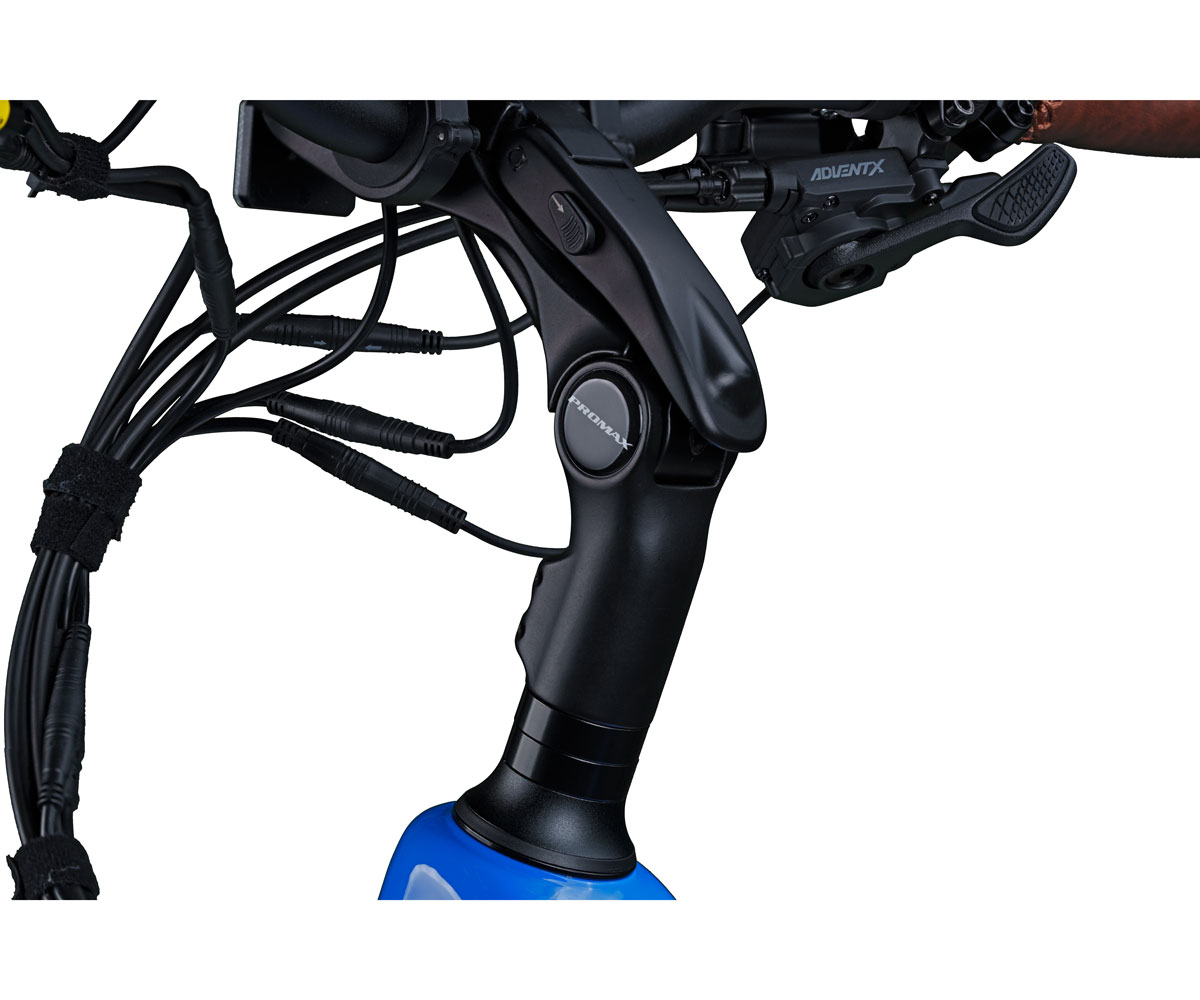

Stem – Tool-free Adjustable

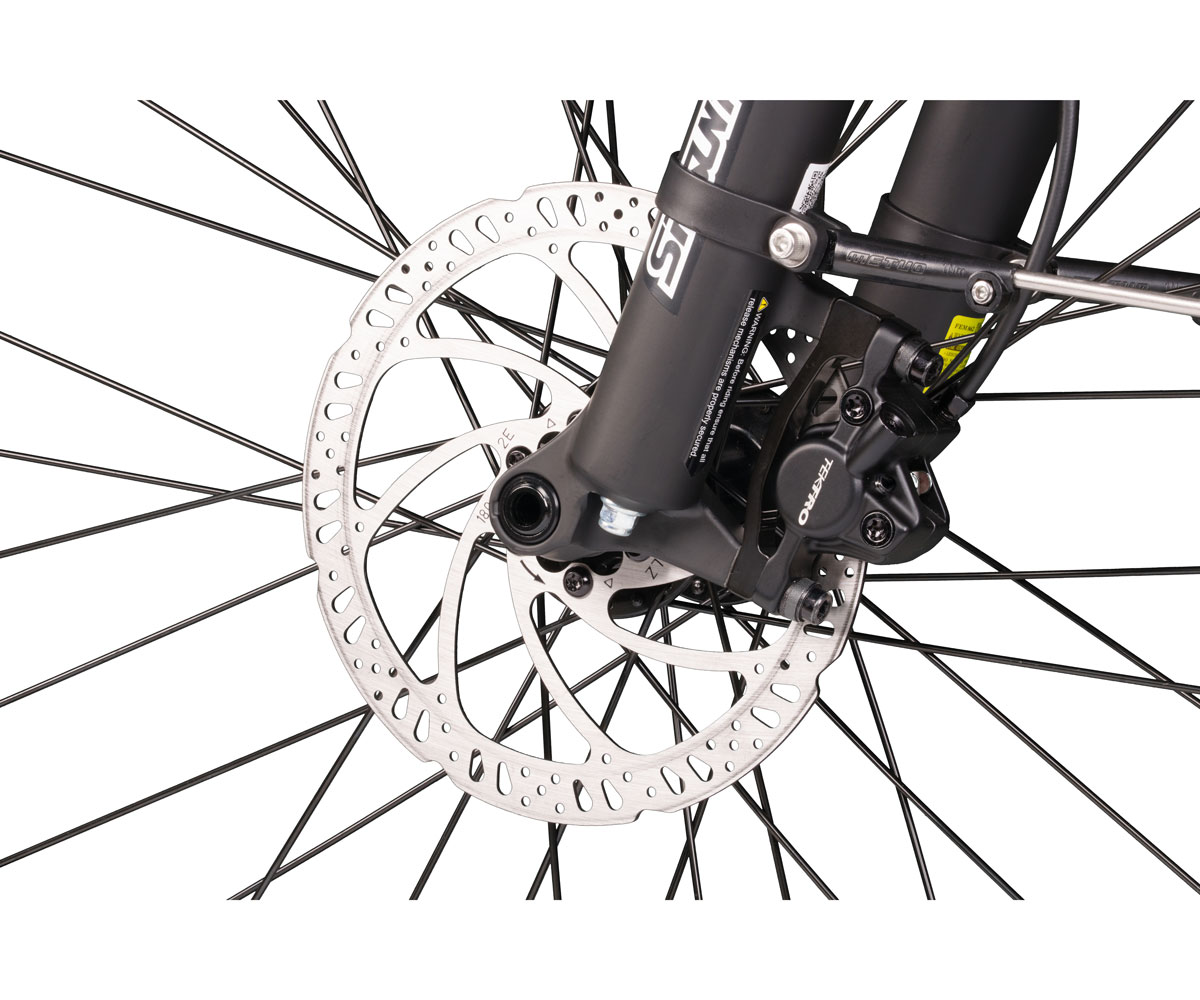

Brakes – Tektro Hydraulic
Grips – Brown Faux Leather
Saddle – Selle Royal Freeway
Tire Size – 26 x 3.0
Wheel size – 26”
Fenders – Front and Rear Included
Chain – KMC 10-Speed
