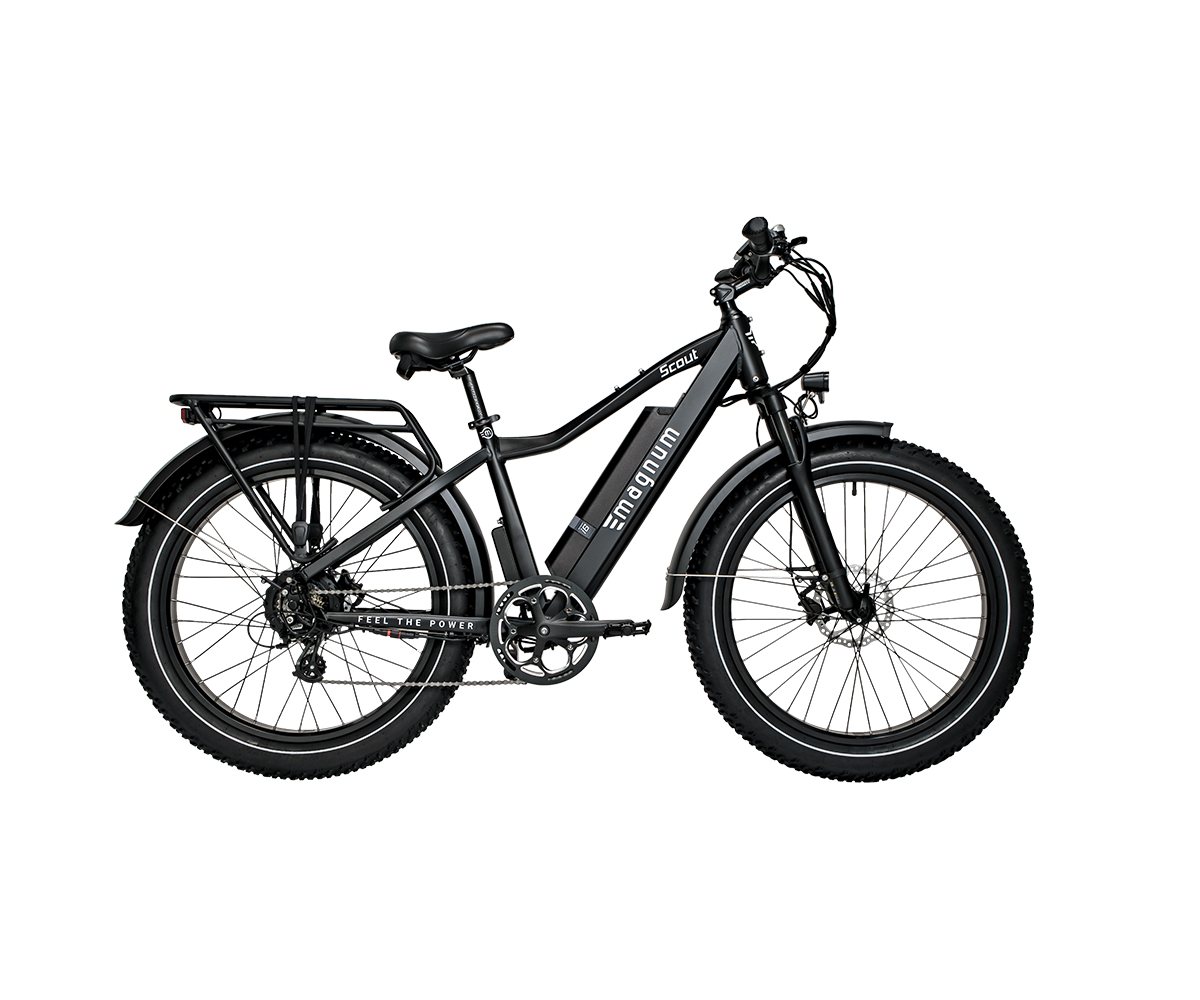

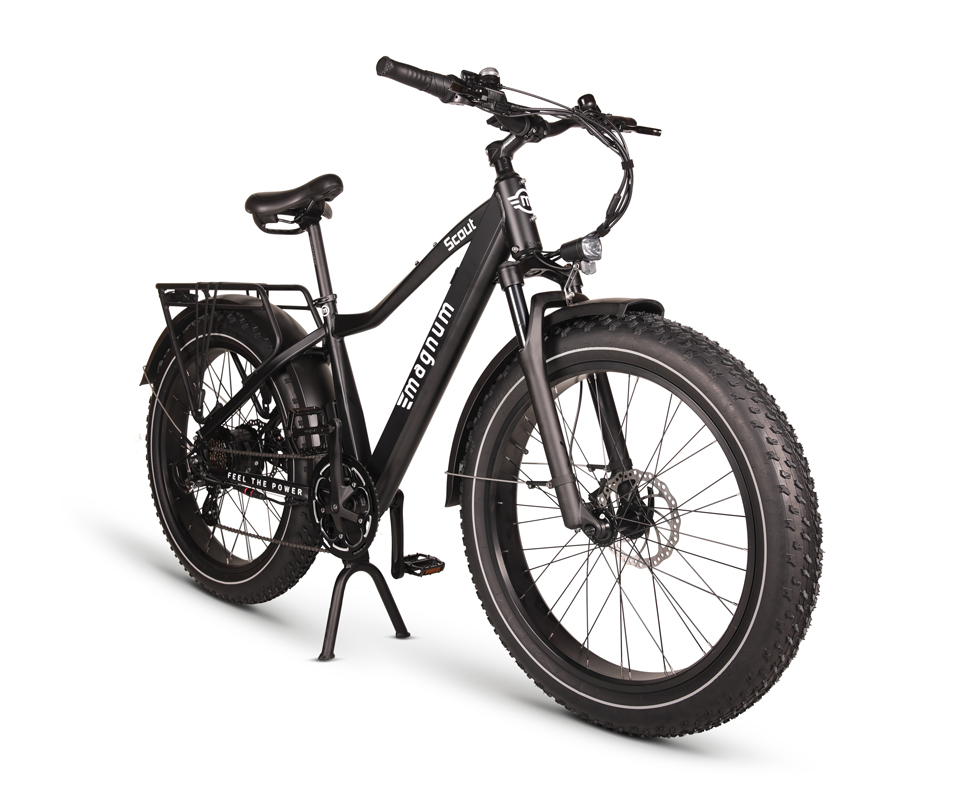

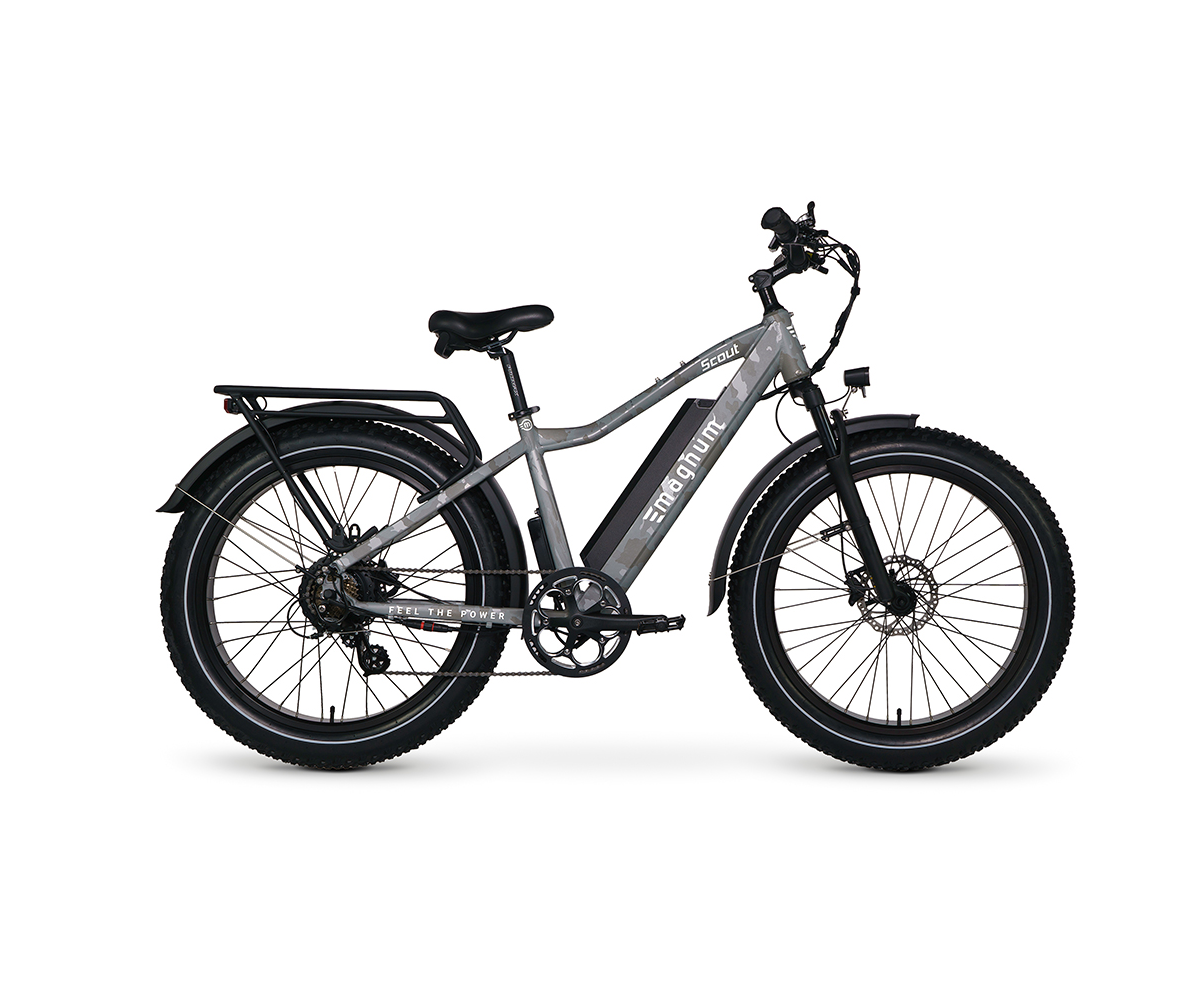

Magnum Scout Bike

Magnum Scout Bike Description
Model: Magnum Scout Bike
Body Position: Forward/Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty: 1 Year Comprehensive
Max Load: 260lbs

ELECTRONIC DETAILS
Motor Type: Bafang Rear Hub
Motor Output: 48v 750W Nominal
Battery Voltage / Amp Hours / Watt Hours:
48v / 19.2 Ah / 920 Wh
Estimated Charge Time: 8.5 Hours
Estimated Min And Max Range: 17.5Ah battery 35-65 Miles (Depending On Riding Style, Terrain, Rider Weight and Pedal Assist Level.)
Display Readouts: Power Output Indicators (6 Bars), Battery Level (6Bars) Speed, Trip,Trip Time, Time, ODO, Power output, PAS, Battery Level
Drive Modes: Cadence Sensing Pedal Assist, Twist Throttle
Top Speed: Up to 28mph With Pedal Assist, 20mph Throttle Only
Lights: Front and Rear Integrated

BICYCLE DETAILS
Total Weight: 74lbs
Battery Weight: 10lbs
Frame Type: High Step with semi-integrated battery
Frame Material: Aluminum
Fork Details: Suspension Fork with Lockout
Attachment Points: Rear Rack, Bottle Cage Mount, Fender Mounts, Front Carrier, Derailleur Guard Mounts
Gearing Details: 7 Speed Shimano
Shifter Details: 7 Speed Shimano
Cranks: 52T 170mm
Pedals: Welgo Platform
Stem / Handlebar: Promax Fixed
Brake Details: Hydraulic Disc Brakes
Grips: Leather Ergo
Saddle: Comfort
Seatpost / Seatpost Dimensions: Promax 30.4mm
Fenders: Front and Rear
Tires: 26 x 4 Knobby
Wheel Size: 26″ X 4″

Things Included
