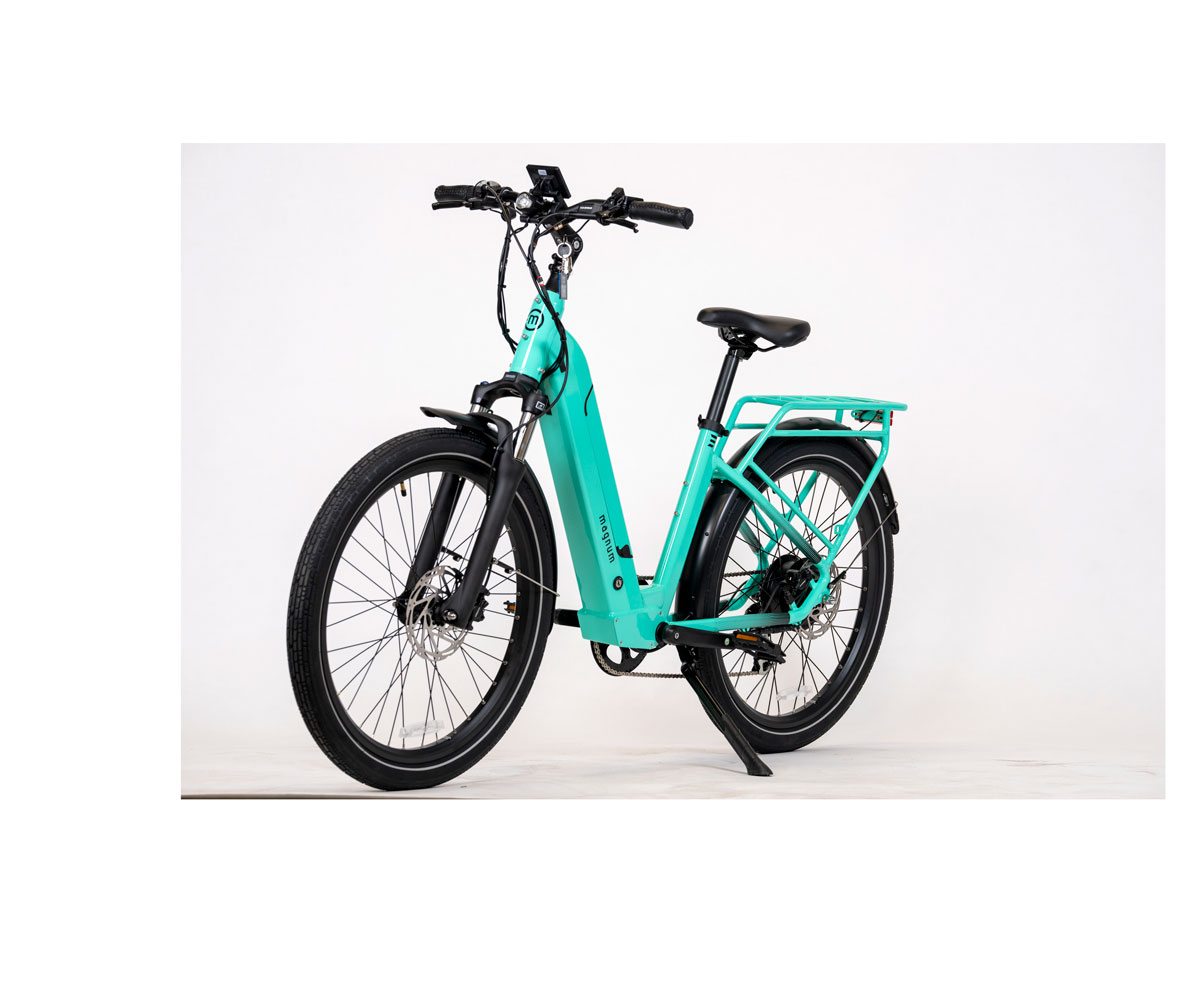

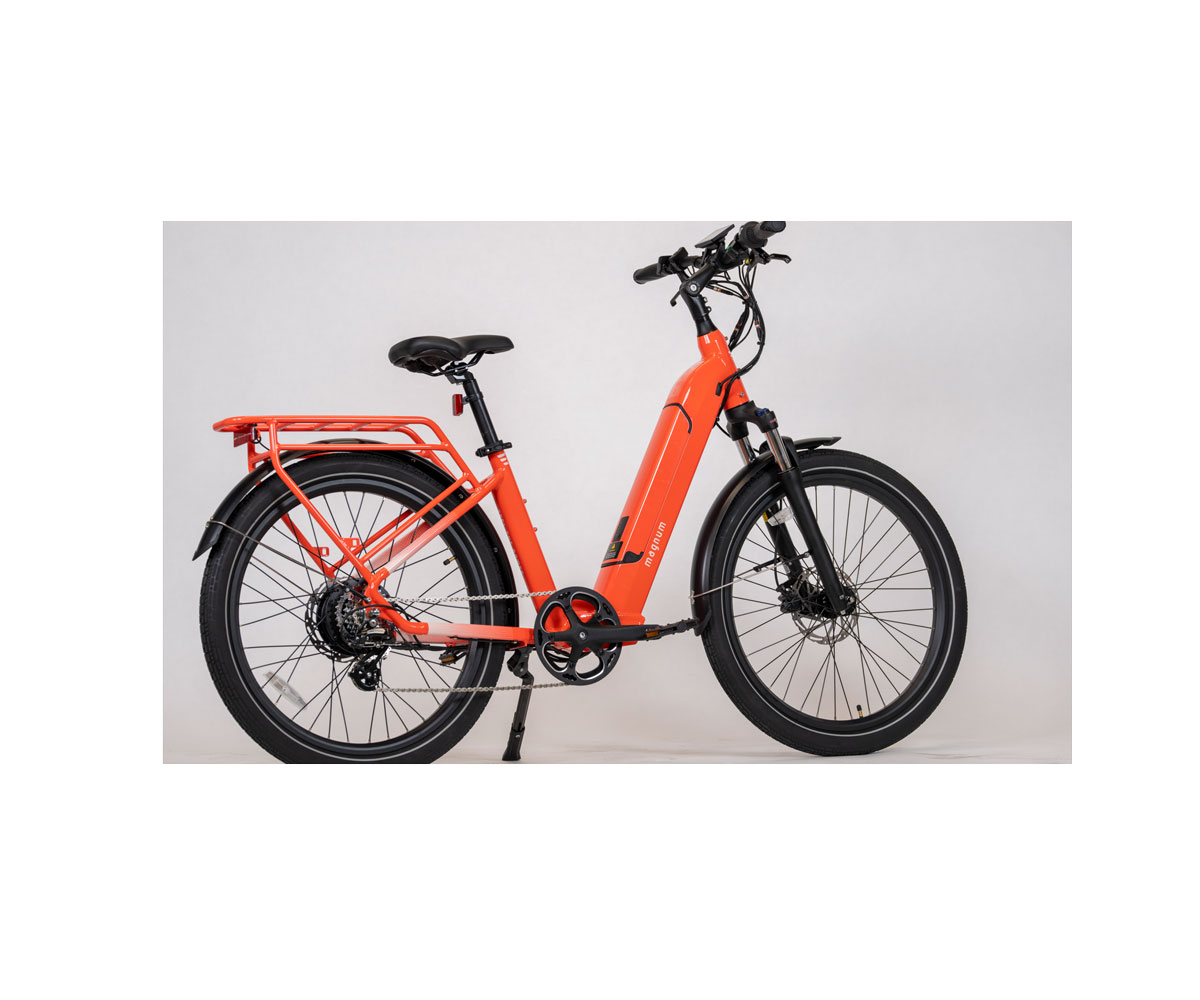

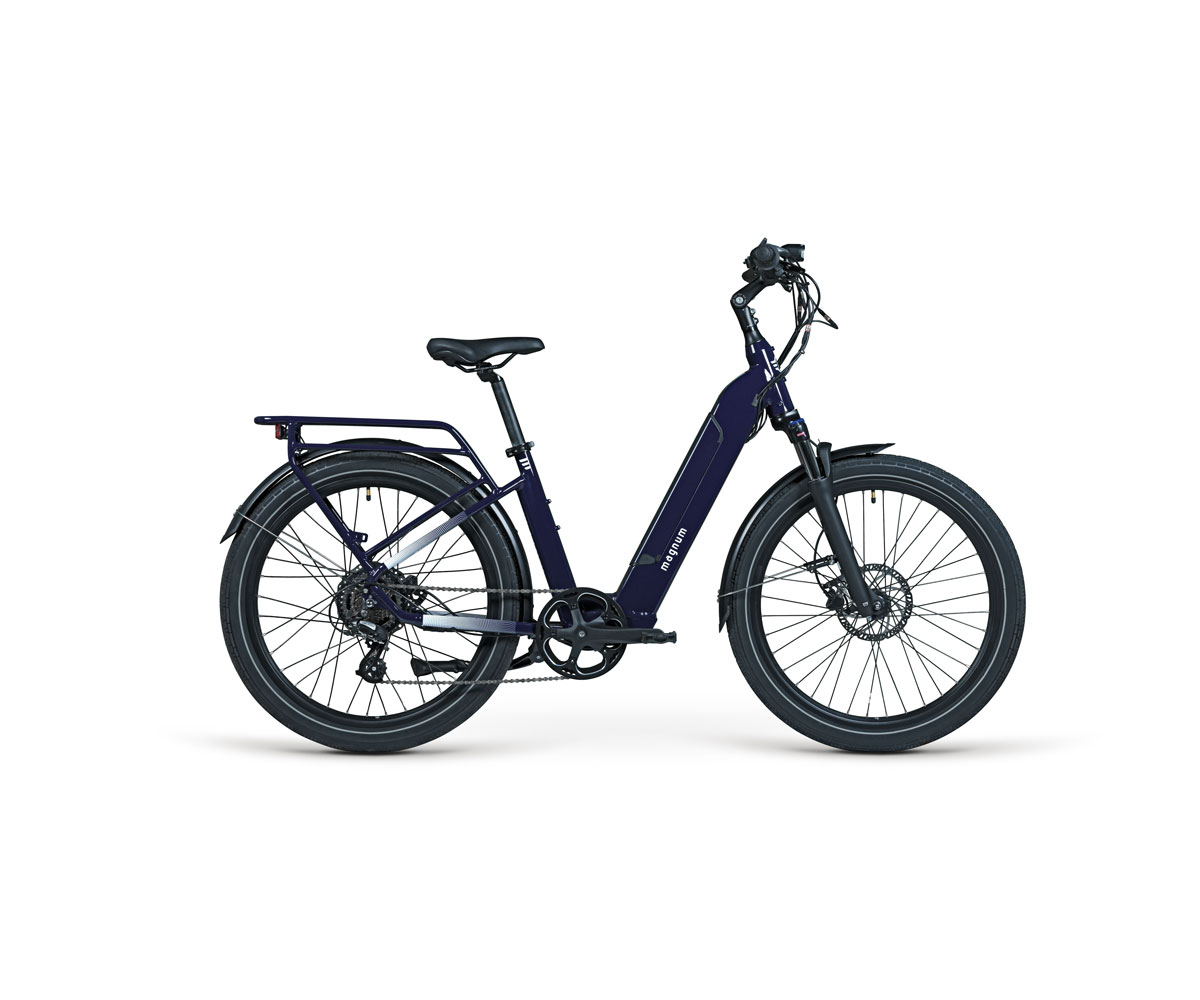

The Magnum Cosmo 2.0 is our most curated bike to date with its light low step frame, fully-integrated 13Ah battery, powerful 500 Watt motor and tons of features packed into one of the most versatile, affordable and reliable e-bikes on the market.
Category – Touring
Class – Can be configured to a Class 1, 2, or 3 E-Bike.
Frame Type – Low-step
Seating – Relaxed
Perfect For – Paved / Light Trails / Recreation

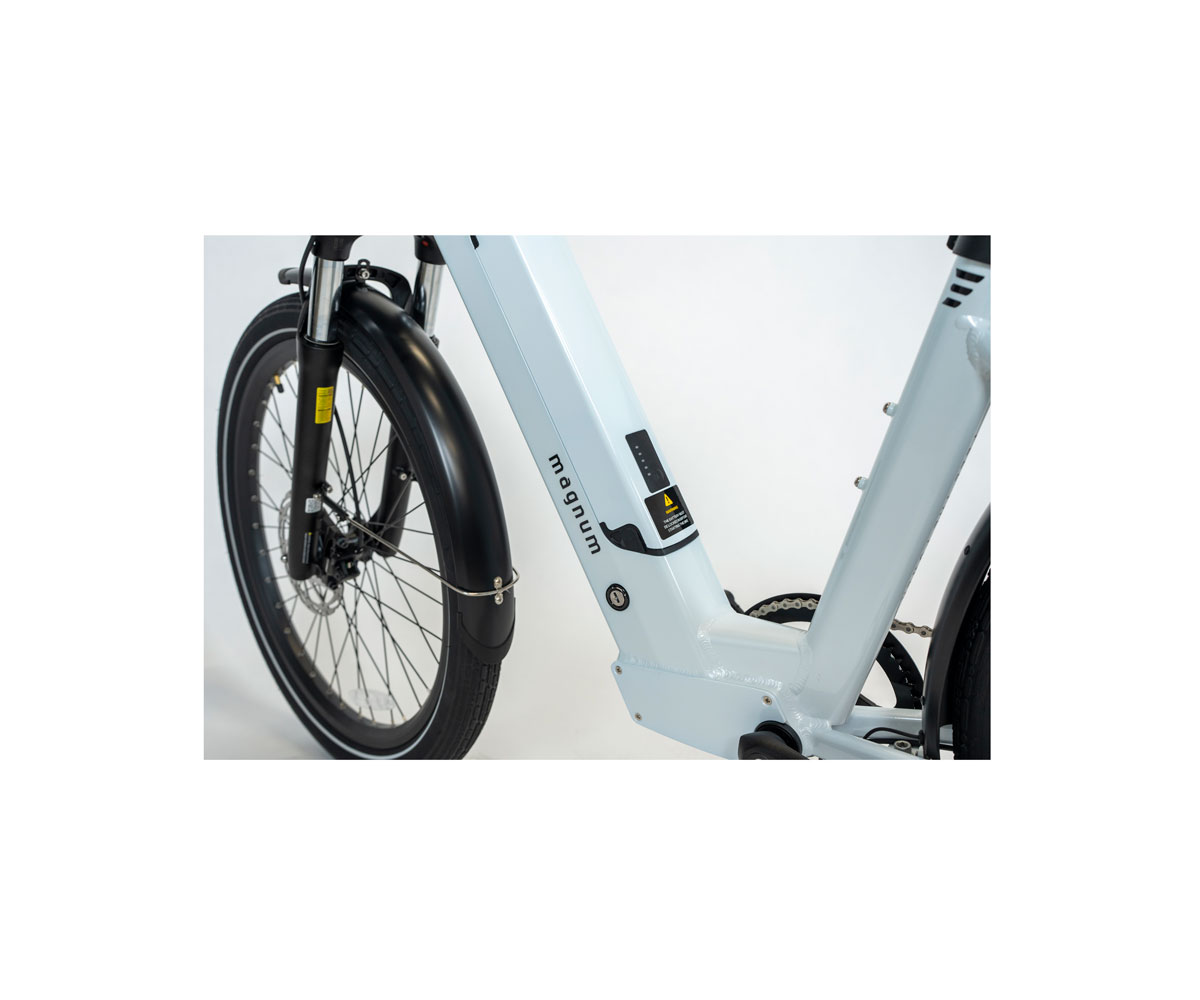

The Cosmo 2.0’s fully integrated 13Ah battery lasts up to 50 miles per charge, with a color-matched casing that blends in smoothly with the frame for a sleek look.
Designed and built with the city and commuter cyclist in mind, the low-step frame design is a breeze to mount and dismount, and it comes in stylish colors with a sleek, integrated battery.
Motor Brand- VIH , Motor Type–Â Hub-Drive
Motor Nominal Output – 500 Watts , Motor Peak Output – 750 Watts
Battery Voltage – 48 Volts, Ah – 13Ah, Wh – 624Wh
Battery Chemistry – Li-NMC
Charge Time (from empty) – 6.5 Hours
Minimum Range – 25 Miles (40 Kilometers)
Maximum Range – 50 miles (80 Kilometers)
Display Type – Magnum Branded VeloFox, 8 x 7 cm, Display Screen, Backlit Monochrome LCD
Display Readouts – Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Drive Mode – Cadence Sensor Peadal Assist, Thumb Throttle, Walk Mode
Top Speed – Up to 25 mph with Pedal Assist, 20 mph with Throttle
Lights – Integrated front and rear lights
Frame material – Aluminum Alloy
Frame Type – Low-step
Fork Details – Suspension 80mm travel with Lock-Out
Gearing details – Shimano 7 Speed 11-32T

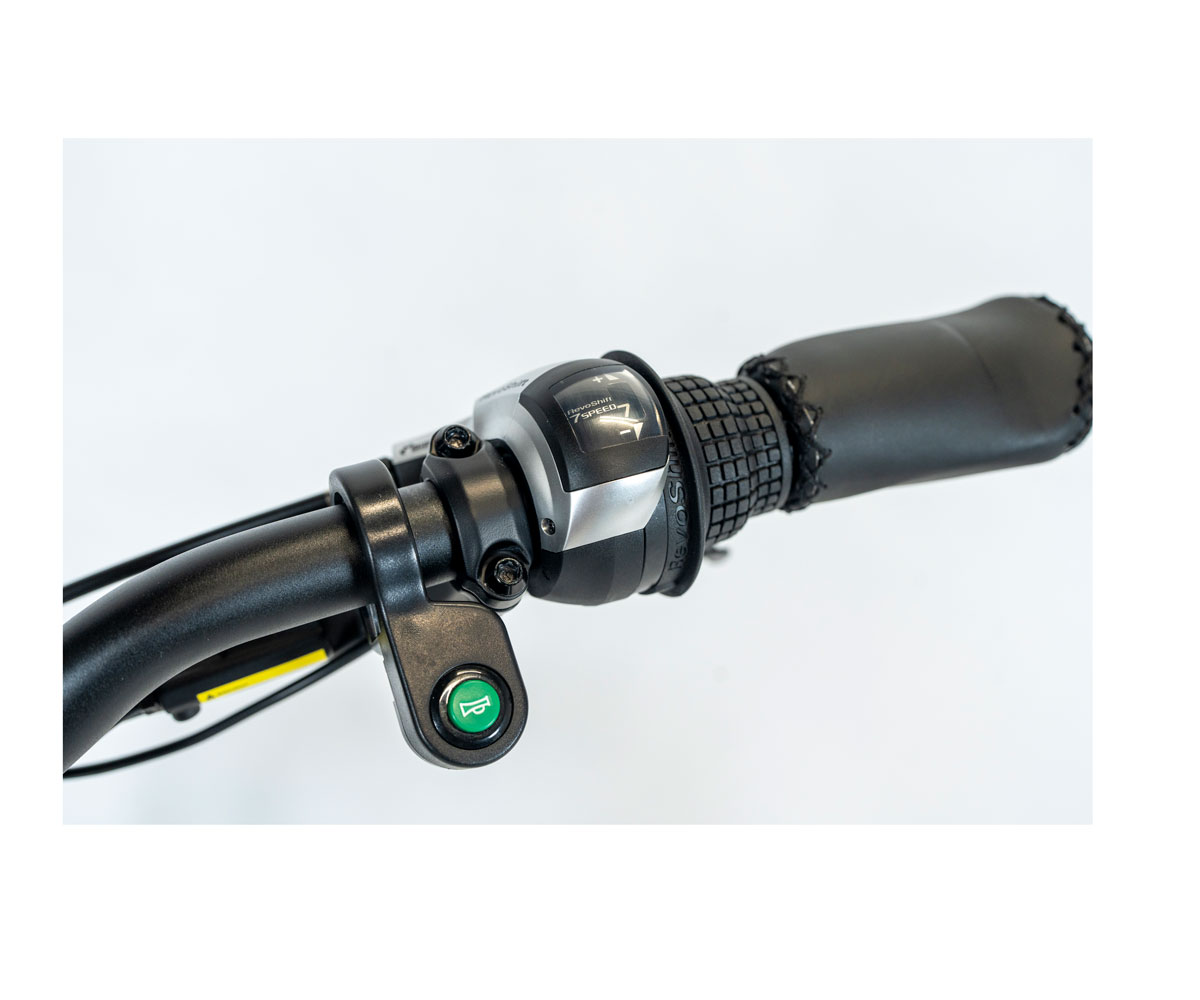

Shifter Details – Shimano 7-Speed Twist Shifter
Crank – Aluminum Alloy 170mm
Pedals – Wide Plastic Platform with Reflectors
Stem-Â Adjustable
Brakes – Tektro Hydraulic
Grips – Black Faux Leather
Saddle – Velo Gel Comfort
Wheel size- 26 x 2.35
Chain –KMC Z7
Seat Tube – 17.5″ (440 mm)
Reach- 17″ (430mm)
Stand Over Height – 16″ (406mm)
Virtual Top Tube Length – 23.25″ (590 mm)
Min Saddle Height – 27.75″ (705mm)
Max Saddle Height – 37.75″ (960mm)
Width – 25.25″ (640mm)
Wheelbase – 45.25″ (1150mm)
Length – 72.25″ (1835mm)
Total Weight – 65 lbs (29.5kg)
Battery Weight – 9 lbs (4.1 kg)
Recommended Minimum Rider Height – 5’0″
Max Load Capacity – 220 lbs (100kg)
Kickstand – Includes Center-Mounted Single Side Adjustable Length Kickstand
Bell – Horn Integrated in headlight
Charger-Â Includes 54.6V 2A Charger
Front Rack – Magnum Front Rack Compatible (Not Included)
Rear Rack – Integrated Rear Rack
Fenders – Includes Front and Rear Fenders
Accessory Mounts – Includes Built-In Head Tube and Seat Tube Accessory Mounts
