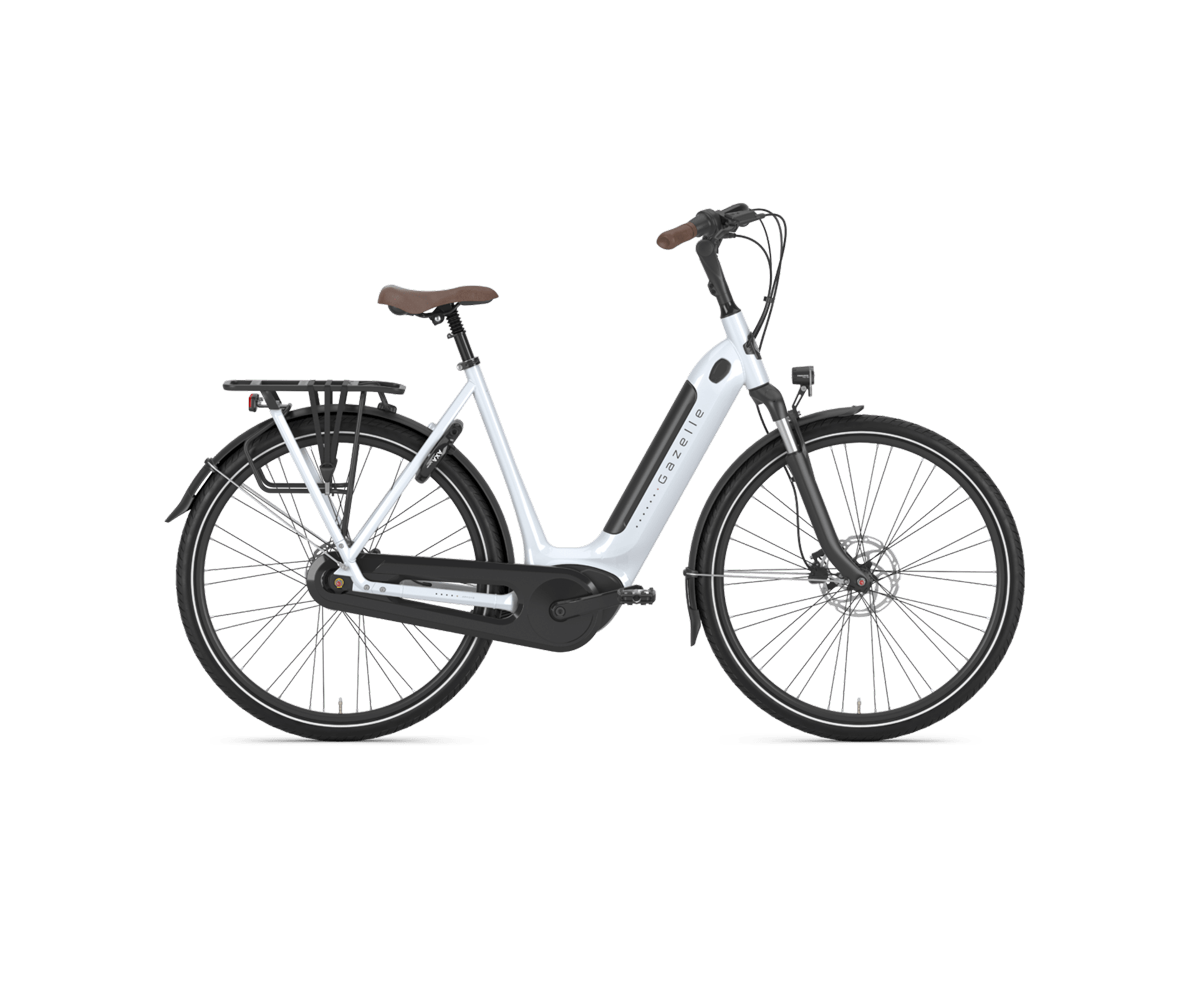

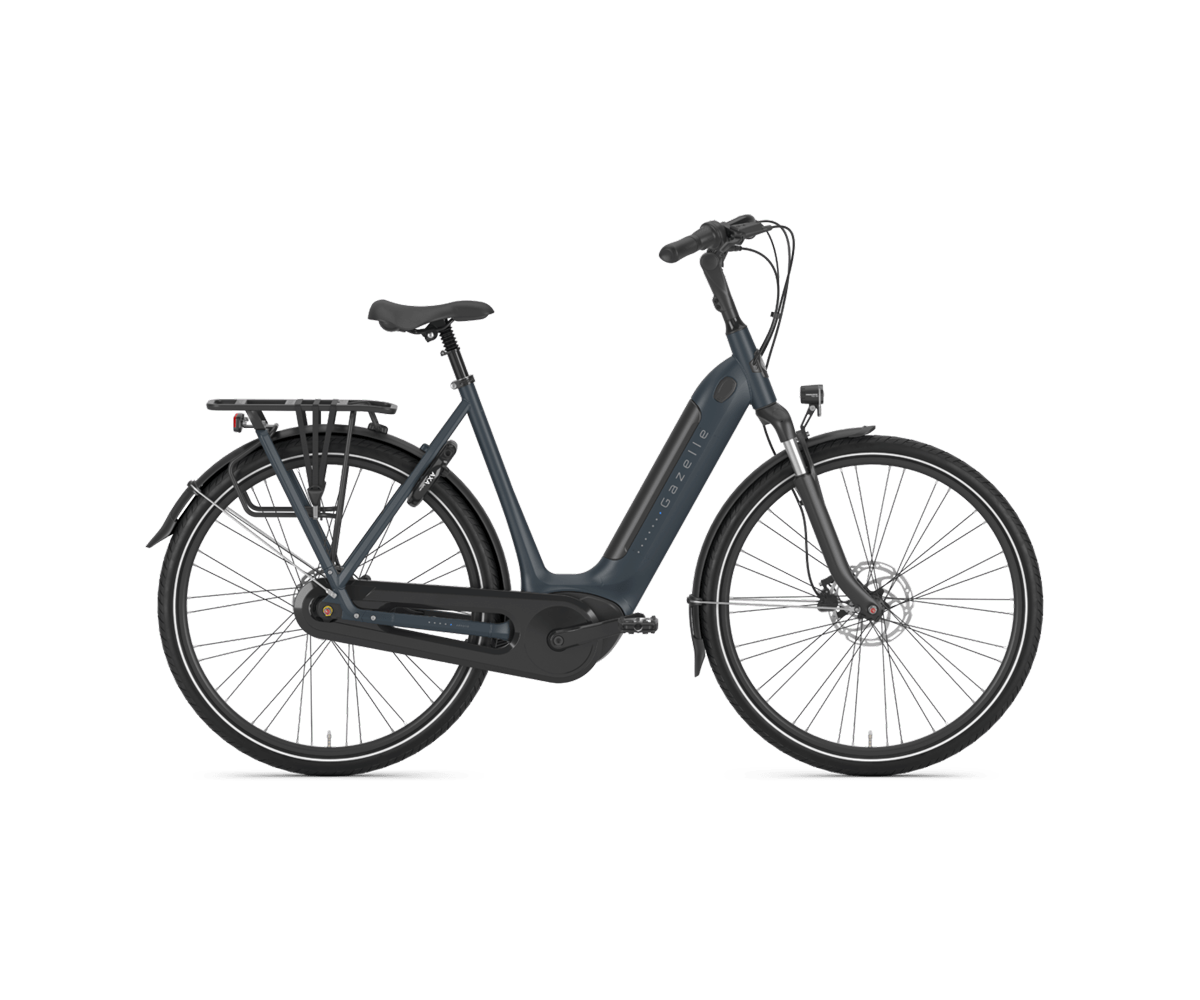

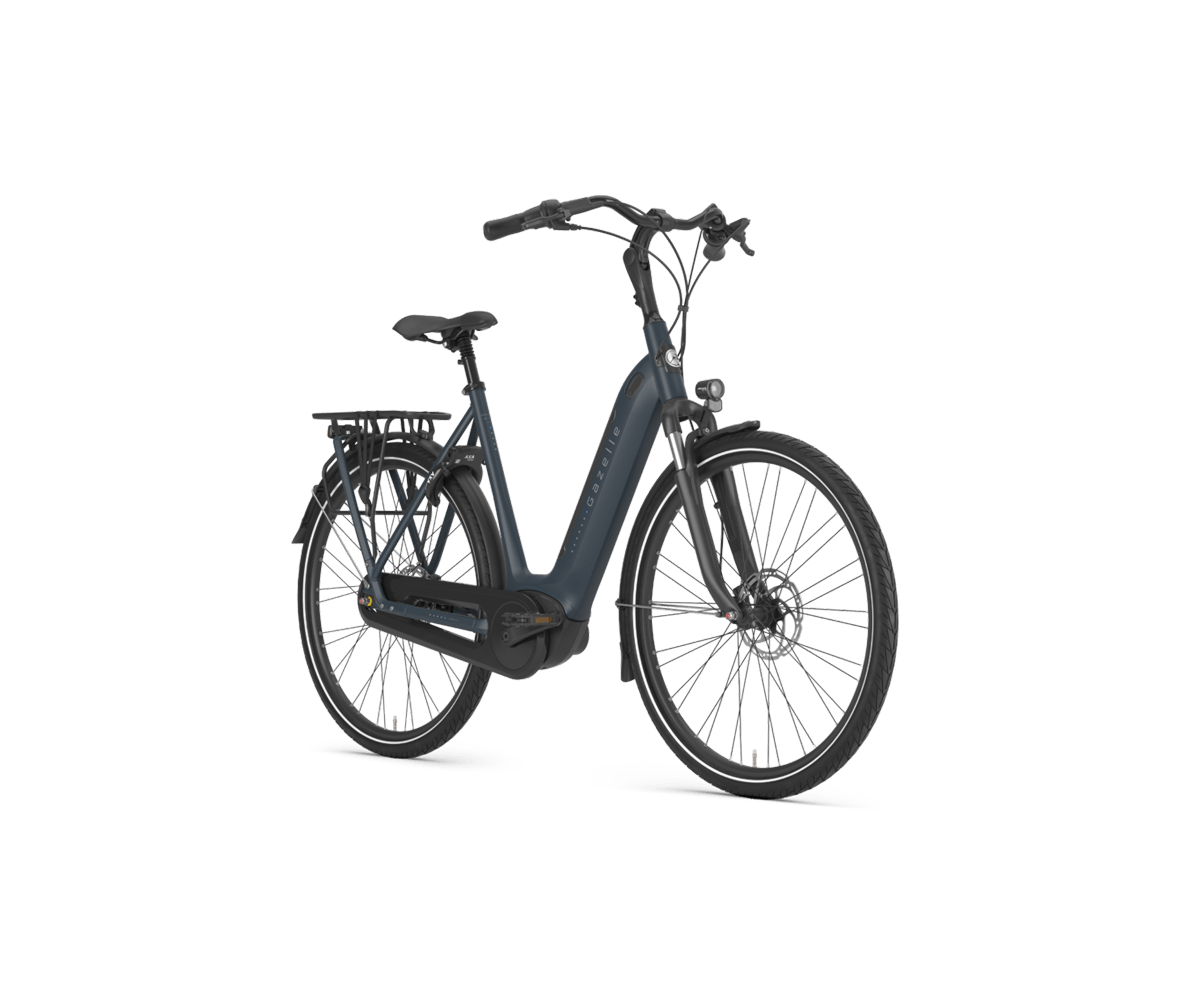

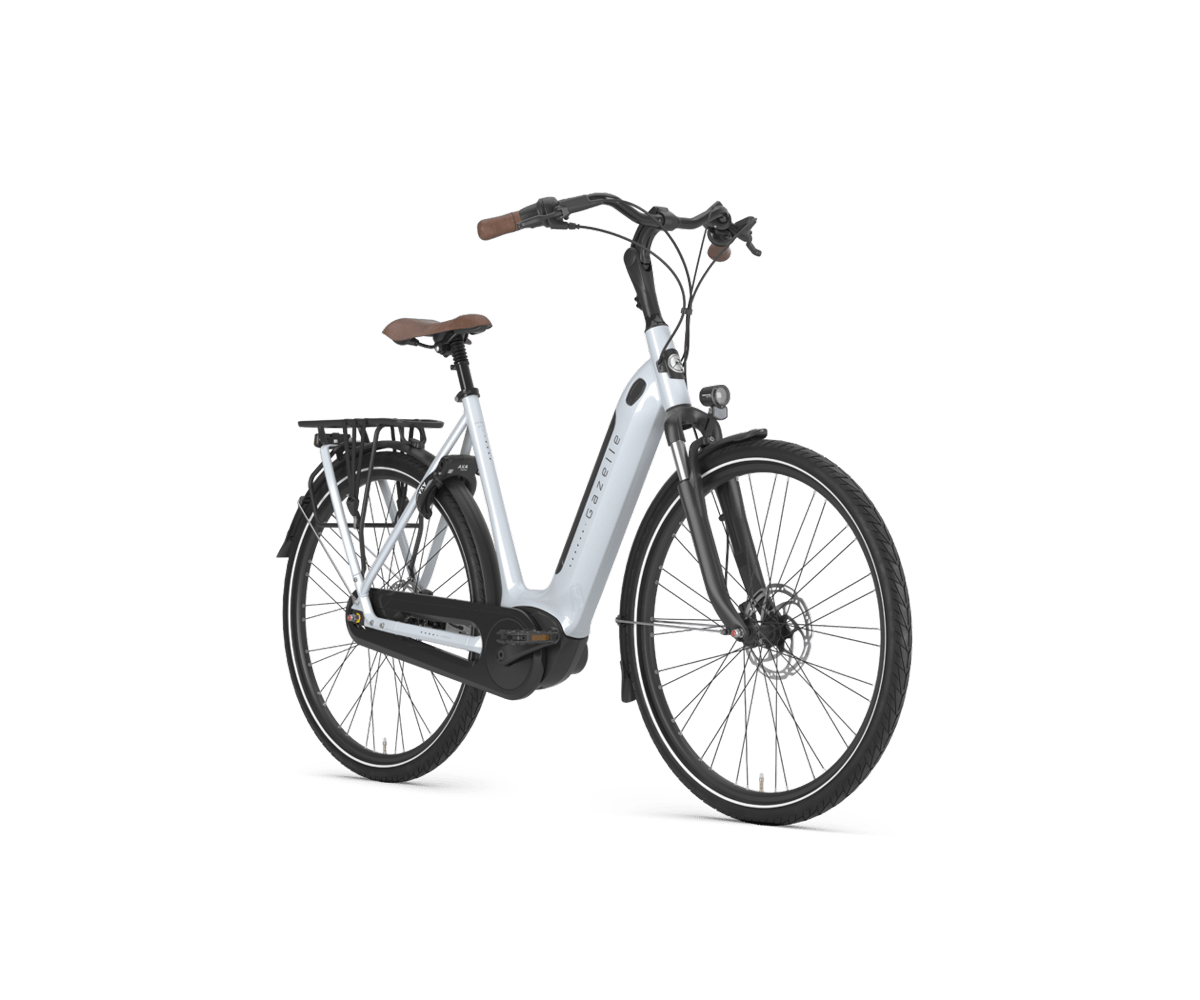

Discover the Gazelle Arroyo C7 HMB Elite
The Gazelle Arroyo C7 HMB Elite embodies the spirit of the classic Dutch bike with some delightfully modern benefits. A roomy step-through frame welcomes a range of riders, while an integrated in-tube battery and mid-mounted motor offers a graceful silhouette, a balanced ride feel, and stealthy power. Fully loaded with functional accessories and boasting a comfort-optimized, relaxed riding position, this bike is ideal for city trips and well beyond.
Gazelle Arroyo C7 HMB Elite
Robust assistance thanks to a Bosch Active Line Plus motor with 50 Nm of torque (20 mph) and 500 Wh integrated in-tube battery
Lightweight suspension front fork, suspension seat post, and wide, puncture-resistant, e-bike-specific tires provide comfort across all conditions
Reliable 7-speed Shimano Nexus hub
Responsive Tektro HD-T280 hydraulic disc brakes
Original price was: $3,399.00.$2,999.00Current price is: $2,999.00.
Whether you’re commuting or taking a leisurely ride, the Arroyo C7 HMB Elite is made for enjoyment. This ebike excels in comfort.
Efficient, Integrated power source
Bosch’s lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike’s range. With the integrated 500 Wh battery, you’ll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.
Model : Gazelle Arroyo
Weight in Lb. : 50.9
Color name : frozen blue, saturn blue
Segment : Electric bicycles
Sitting position : Upright
Frame shape : low-step
Size : 46, 53, 57
Frame description : Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
Frame material : Aluminium
Fork material : Aluminium
Fork suspension type : telescopic
Travel Fork : 40 mm
Wheel size : 28″
Rims : RODI Viper
Tires : Schwalbe Energizer Active Plus
Tire color : black / brown
Gear system description : 7-speed Shimano Nexus
Gear type : hub
Gears : 7
Front chainwheel : 38
Rear chainwheel : 18
Brake Front : Disc brake with hydraulic control
Brake Rear : Disc brake with hydraulic control
Handlebar description : Aluminium, comfort curved model
Adjustable stem : Yes
Grip type : Gazelle Aerowing
Grips : Plastic wear-resistant handlebar grips for a firm grasp
Saddle : Selle Royal Herz
Seatpost suspension : Yes
Ebike system short description : Bosch
Engine location : mid-drive motor
Max speed (mph) : Class 1 (20 mph)
Torque : 50
Engine model : Bosch Active Line Plus (50Nm)
Ebike sensors : pedal force sensor, rotation sensor, speed sensor
Type : Li-ion
Position : Integrated into frame
Replaceable : Yes
System : Bosch
Amount of support levels : 4
Display control unit : Yes
Walk assist : Yes
Display Model : Bosch Purion LCD
Front light type : Trelock Veo 50
Maximum Range – 70 miles
Watt Hours – 500 Wh
Capacity – 13.4 Ah
Eco Range – 70 miles
Tour Range – 45 miles
Sport Range- 35 miles
Turbo Range- 25 miles
Frame : 10 years’ warranty
Fork : 5 years’ warranty
Paint : 5 years’ warranty
Other parts : 2 years’ warranty
Battery : 2 years’ warranty
Motor : 2 years’ warranty
Display : 2 years’ warranty
Lock description : Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
Lock safety level : ART ** certified  Type : AXA Defender
Chaincase description : Plastic
Coat protector : Yes
Kickstand type : drop-down rear stand
Chaincase type : Chain case
Rear carrier description : Aluminum MIK HD system carrier
Carrier MIK system : Yes
